LDS2000E Shotcrete Pump
Leadcrete Shotcrete Pump has the advantage of high quality and competitive price and good after-sales service.
Electric motor shotcrete pump
2.5Mpa (Trelleborg Hose)
4-8m3/h
10mm
50mm
50mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LDS2000E electric shotcrete pump runs by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. Shotcrete pump is widely used in engineering construction, mines, tunnels, culverts, subways, hydropower projects, underground projects and coal mine marsh roadways sprayed concrete construction operations; various industrial furnaces, furnace lining refractory materials spray molding or repair; various slope protection greening construction , soil transportation, spraying. The shotcrete pump can be used for wet spraying, dry spraying and various fiber spraying operations.
Application
LDS2000E shotcrete pump for sale is used for building dome, swimming pool etc, and pumping and spraying normal concrete, mortar, plaster and cellular light concrete. Shotcrete is also the preferred material for underground stations, slopes, shops and provides long term stability. It can be used as a final or permanent lining for subterranean structures. Shotcrete has high strength, durability, low permeability, excellent bond, and limitless shape possibilities.
- Shotcrete pump is used for building dome, swimming pool etc;
- Shotcrete pump is used for pumping and spraying normal concrete;
- Shotcrete pump is used for pumping and spraying mortar/plaster;
- Shotcrete pump is used for pumping and spraying cellular light concrete.
Features
1. LDS2000E small wet shotcrete pump for sale is equipped with highly-reliable direct drive planetary gearbox;
2. Infinite speed variation;
3. Specially hopper / agitator stir design;
4. Shotcrete pump for sale is easy to move with wheels;
5. Easily operating on work site;
6. Infinite speed variation;
7. Power, compact and reliable;
8. Small shotcrete pump is easy operating on site work;
9. Standard spare part supply.
2. Infinite speed variation;
3. Specially hopper / agitator stir design;
4. Shotcrete pump for sale is easy to move with wheels;
5. Easily operating on work site;
6. Infinite speed variation;
7. Power, compact and reliable;
8. Small shotcrete pump is easy operating on site work;
9. Standard spare part supply.
Product Details
-
Directional valve of shotcrete pump -
Electric control box of shotcrete pump -

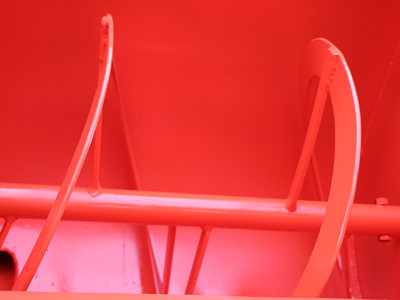

Hopper mixing blade of shotcrete pump -
Hopper mixing directional valve of shotcrete pump -
Hopper vibrating screen of shotcrete pump -
Pump outlet of shotcrete pump
Technical Parameters
Technical Data
| Item | Description |
| Drive Type | Electric motor |
| Working Pressure | 2.5Mpa (Trelleborg Hose) |
| Output | 4-8m3/h |
| Max. Aggregate Size | 10mm |
| Squeeze Hose ID | 50mm |
| Conveying Hose ID | 50mm |
| Squeeze Pump Model | LH50-680 |
| Power | 7.5kw, electric motor |
| Hopper Volume | 240 Liter |
| Requested Air Compressor | 6m3/min, 0.6Mpa Pressure |
| Vertical Conveying Distance | 30m (Trelleborg Hose) |
| Horizontal Conveying Distance | 80m (Trelleborg Hose) |
Note: The diesel engine or gasoline engine shotcrete pump is for optional.
Many thanks for visiting our web, we can supply shotcrete pump for you. Before we send quotation, please let me know the following question:
1. What's the project you will use the shotcrete pump do, for slope protect, or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel ? What voltage it is on your local? It is 3 phase 380V 50Hz in China
We have many standard models shotcrete pump for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
