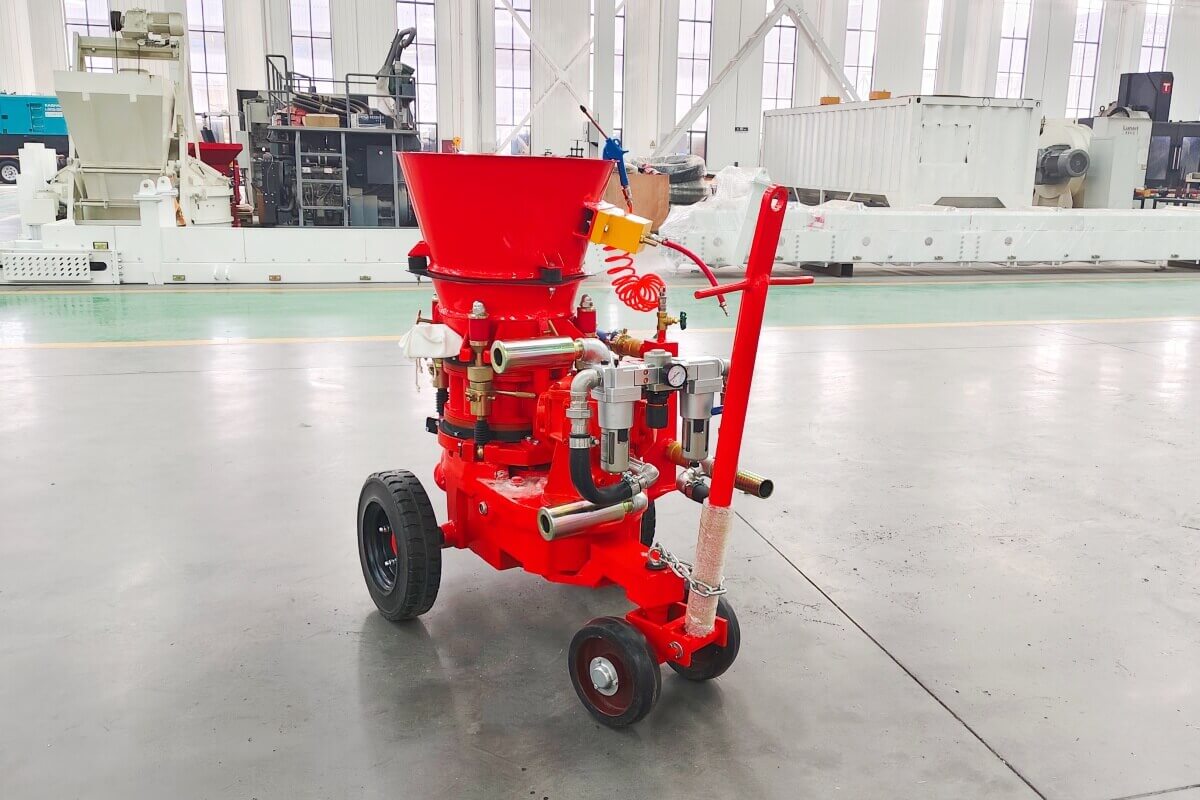

LZ-5AR Refractory spraying machine

LZ-5AR refractory spraying machine is driven by one air motor (also it could be driven by a electrical motor). LZ-5AR is a powerful, compact and reliable refractory material spraying machine, it is specifically designed for refractory dry mix shotcrete application, as well as for concrete shotcrete application.

Rated Output 1-5m3/h(2-10Ton/h)

Max. Horizontal Conveying Distance 100m

Max. Aggregate Size Φ15 mm

Conveying Hose Inner Diameter 51mm

Operating Air Pressure 0.2-0.4MPa(29-58PSI)

Air Consumption 8~9m3/min(285-325CFM)

Send Email Chat Now Catalogue

PRODUCTS LIST

Grout Mixing Plant

Grout Mixer

Grout Pump

Hydroseeder

Refractory Gunning Machine

Refractory Pan Mixer

Shotcrete Gunite Machine

Peristaltic Hose Pump

Foam Concrete Machine

Hydraulic Jack

Small Concrete Pump

Mortar Spraying Machine

Power Pack

Scraper Conveyor

Drilling Rig

HOT products

LZ-3ER/S Refractory gunning machine

$lastest refractory gunning machine$

LGM80/50PLD-E Double plunger hydraulic grout pump

LMA750-1500E Grout mixer machine for sale

LRM1000 Refractory Pan Mixer Machine

$refractory pan mixer machine supplier$

LH100-915B China Foam Concrete Pump for Sale

LCP40H-E Large Flow Hose Type Concrete Pump

LMP70/30 Double Piston Plastering Machine

LPS-7A Wet Shotcrete Machine

LGP300/300/75 PI-E China compact grout plant

LFC1000-H Foam concrete machine supplier

CASE

Foam concrete used for void filling

Inquiry

Name:

* Email:

* Inquiry:

Introduction

Product Details

Technical data

Cases

Inquiry

Description

LZ-5AR refractory spraying machine consists of the following parts: bag making machine, barrel cover, blade and blade gasket, gasket bearing, upper rubber plate, steel plate, rotor, steel plate, lower rubber plate, rotor base, outlet elbow plate and outlet elbow, etc. With this spraying refractory machine, you can get low dust and high performance spraying flow in nozzle.

Application

LZ-5AR refractory spraying repair machine from Lead Equipment is specifically designed for refractory dry-mix shotcrete application, as well as for concrete shotcrete application, it is widely used for lining kilns, boilers, furnaces and concrete building repair.

Features

refractory spraying machine,refractory spraying repair machine,spraying refractory machine,spraying refractory material machine,refractory material spraying machine

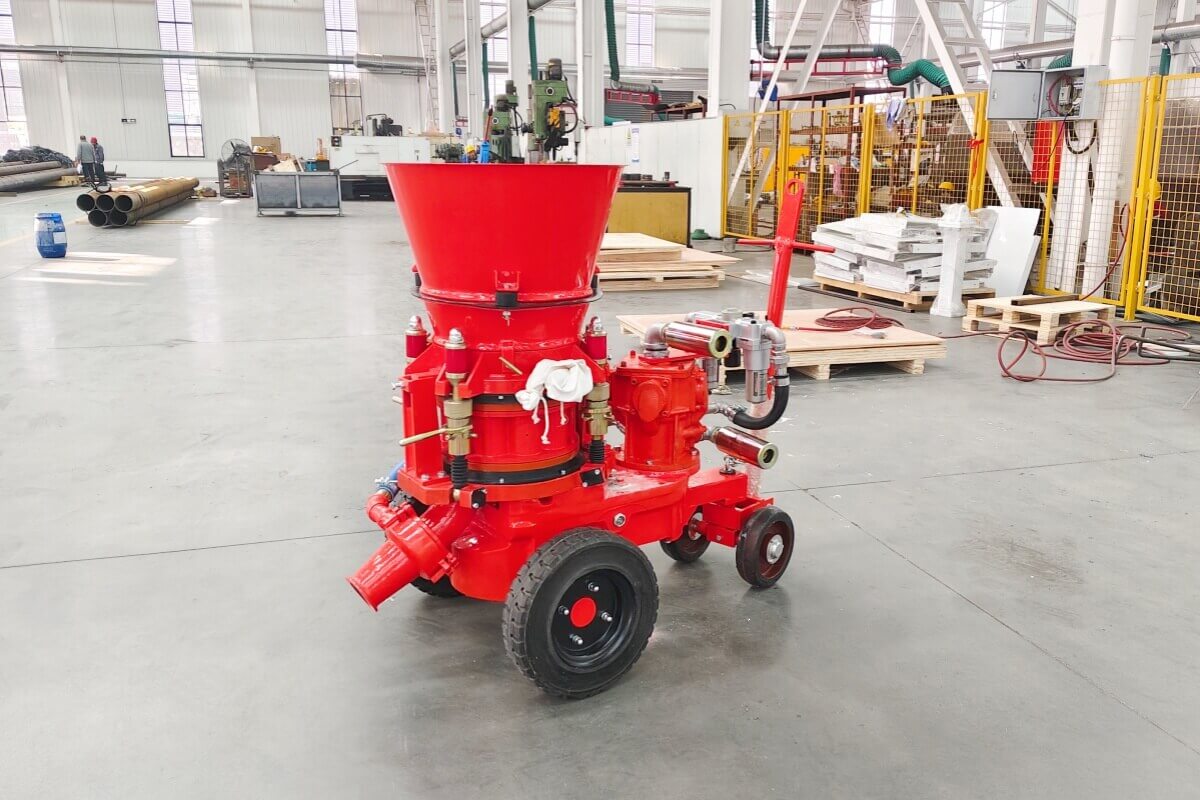

LZ-5AR is air motor full pneumatic straight chamber rotor type refractory gunning machine.

$process of gunning machine for refractory$

1. 5 cylinders piston air motor, more powerful

2. Pneumatic transmission system, the pneumatic triple pieces is refers to the air filter, relief valve and oil mist

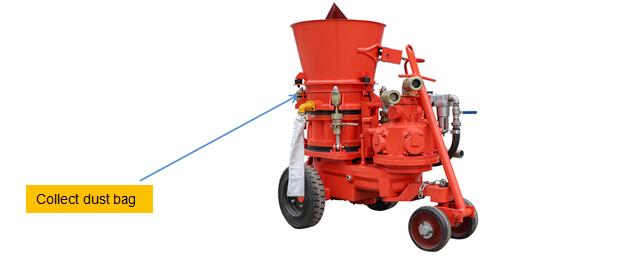

3. Collect dust bag

4. Clean dust gun

5. Heavy-duty solid wheels

6. Coupling and clamp, the coupling and clamp are optional as below:

7. Light weight nozzle, new pre-dampening nozzle!
Low rebound, low dust.
Reduce additive water amount.
Improve refractory compactness and strength.

8. Blast rubber hose

9. High pressure water pump, 6 bar pressure make sure to add water fully atomize, mix evenly.

Product Details

$Refractory spraying machine for steel plant$

Refractory spraying machine for steel plant

$Rotor refractory spraying machine$

Rotor refractory spraying machine

$Refractory spraying machine factory$

Refractory spraying machine factory

$Light weight nozzle of refractory spraying machine$

Light weight nozzle of refractory spraying machine

$High pressure water pump for refractory spraying machine$

High pressure water pump for refractory spraying machine

$Pre-dampening nozzle of refractory spraying machine$

Pre-dampening nozzle of refractory spraying machine

Technical Parameters

Technical Data

Rated Output	1-5m³/h(2-10Ton/h)
Max. Horizontal Conveying Distance	100m
Max. Aggregate Size	Φ15mm
Conveying Hose Inner Diameter	51mm
Operating Air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	8~9m³/min(285-325CFM)
Air consumption for air motor	7.5m3/min
Drive Type	Air motor
Material Charging Height	1.2m
Rotor Speed	0-13.2r/min
Overall Dimension(L×W×H)	1.35×0.75×1.3m
Weight	500kg

case

Refractory gunite machine for smoke hood project
