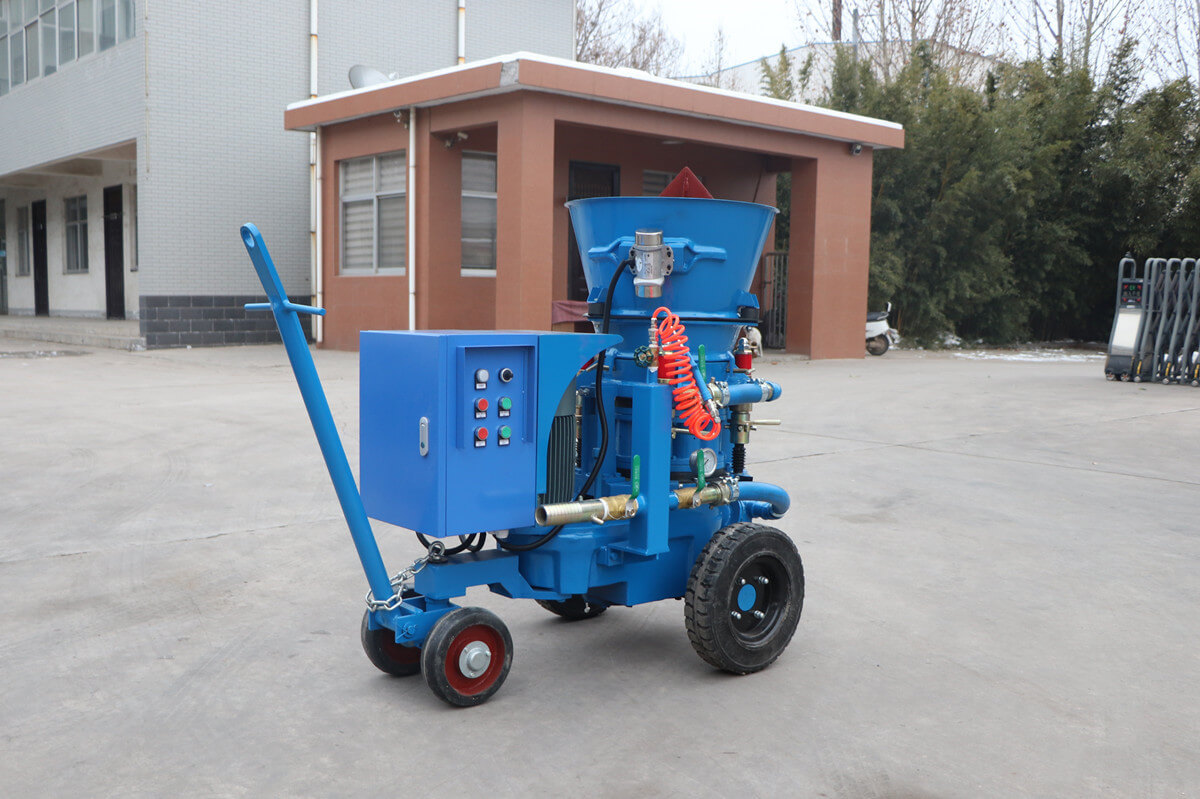

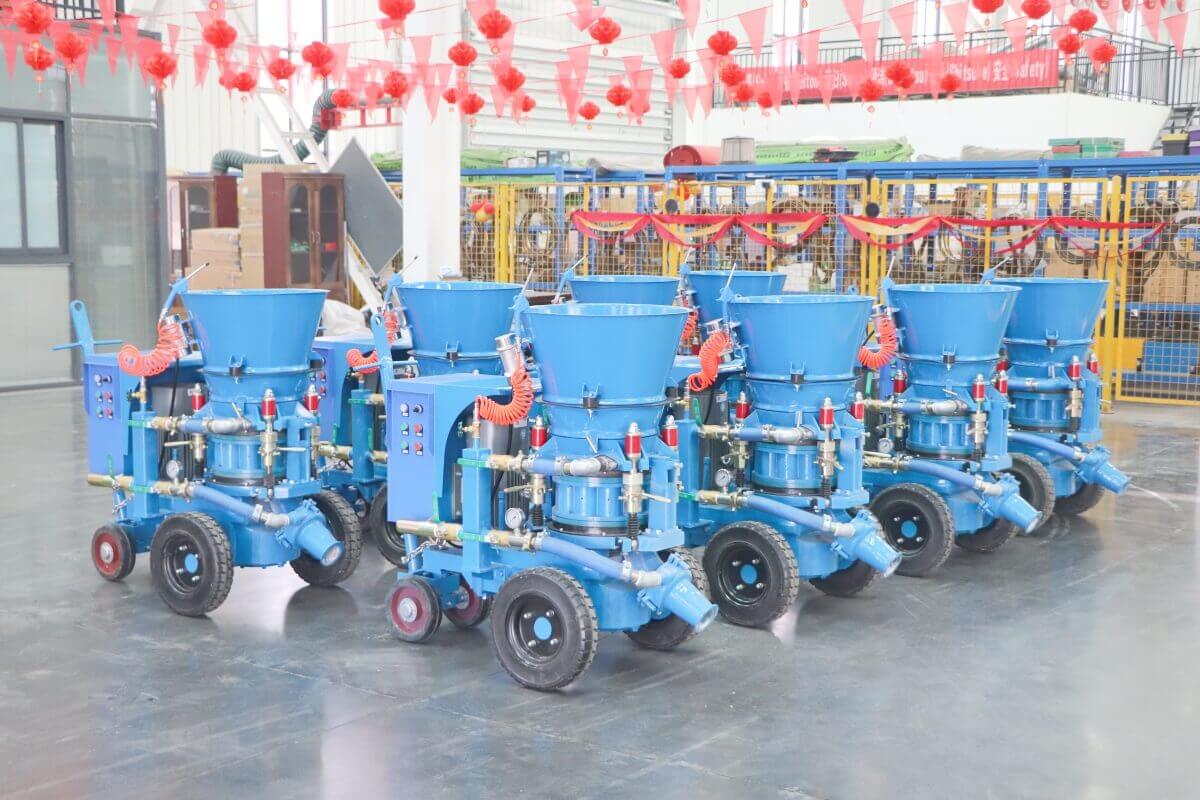

LZ-3ER Refractory Gunite Machine Price
LZ-3ER refractory gunite machine is a dry monolithic refractory material designed for dry spray gun equipment. The spray gun is applied by a special machine that uses compressed air to push the dry (or pre-wetted) spray gun through the hose into the target. Add water (or additives) to the nozzle to wet the dry mixture and make it stick to the surface.
1-3m3 /h(2-6/h)
100m
Φ10 mm
32/38mm
0.2-0.4MPa(29-58PSI)
5~6m3/min(180-215CFM)
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LZ-3ER refractory gunite machine is a dry monolithic refractory material designed for dry spray gun equipment. The spray gun is applied by a special machine that uses compressed air to push the dry (or pre-wetted) spray gun through the hose into the target. Add water (or additives) to the nozzle to wet the dry mixture and make it stick to the surface.
LZ-3ER refractory gunite machine price is reasonable, stable in performance, uniform and continuous spraying, and easy to move. It is the preferred equipment for refractory spraying.
Application
LZ-3ER refractory gunite machine can be used for spraying refractory concrete mixture in furnace lining and heating furnace lining of metallurgical and glass factories. It can also be used in factory boilers, coke oven batteries, cement plants, metallurgical, chemical and glass processing industries.
Features
LZ-3ER refractory gunite machine is well received by customers at home and abroad for its favorable price, high quality and stable performance. The main features of LZ-3ER refractory gunite machine are:
1. Variable Output with ABB variable frequency drive.
2. Bag cutter and flat hopper with vibrator.
3. Collect dust bag.
4. Clean dust gun.
5. Heavy-duty solid wheels.
6. Coulping and clamp.
7. New type pre-dampening nozzle assy.
8. Blast rubber hose.
♦LZ-3ER is straight chamber rotor type refractory gunning machine.

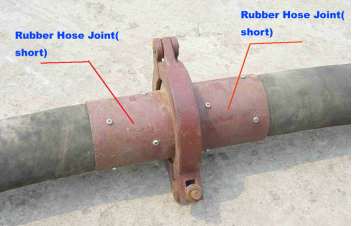

♦Coupling and clamp/The Coupling and Clamp are optional as below
1. Variable Output with ABB variable frequency drive.
2. Bag cutter and flat hopper with vibrator.
3. Collect dust bag.
4. Clean dust gun.
5. Heavy-duty solid wheels.
6. Coulping and clamp.
7. New type pre-dampening nozzle assy.
8. Blast rubber hose.
♦LZ-3ER is straight chamber rotor type refractory gunning machine.
♦Coupling and clamp/The Coupling and Clamp are optional as below
Product Details
-
electric vibrator -

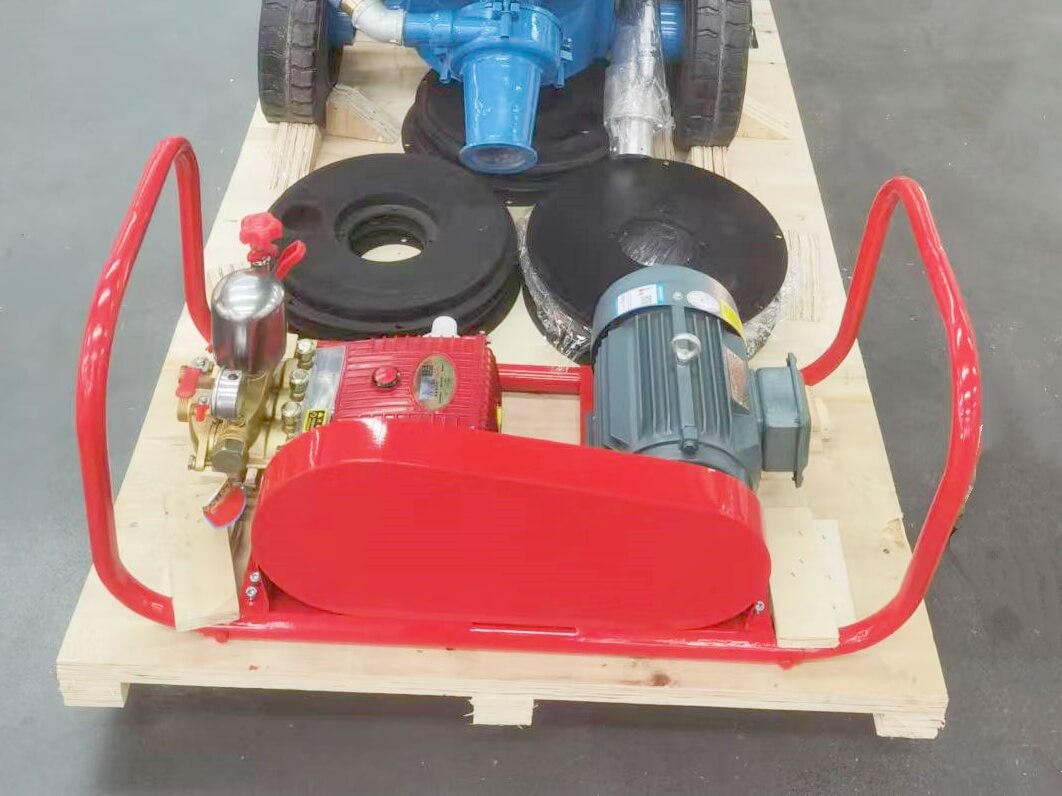

high pressure water pump -

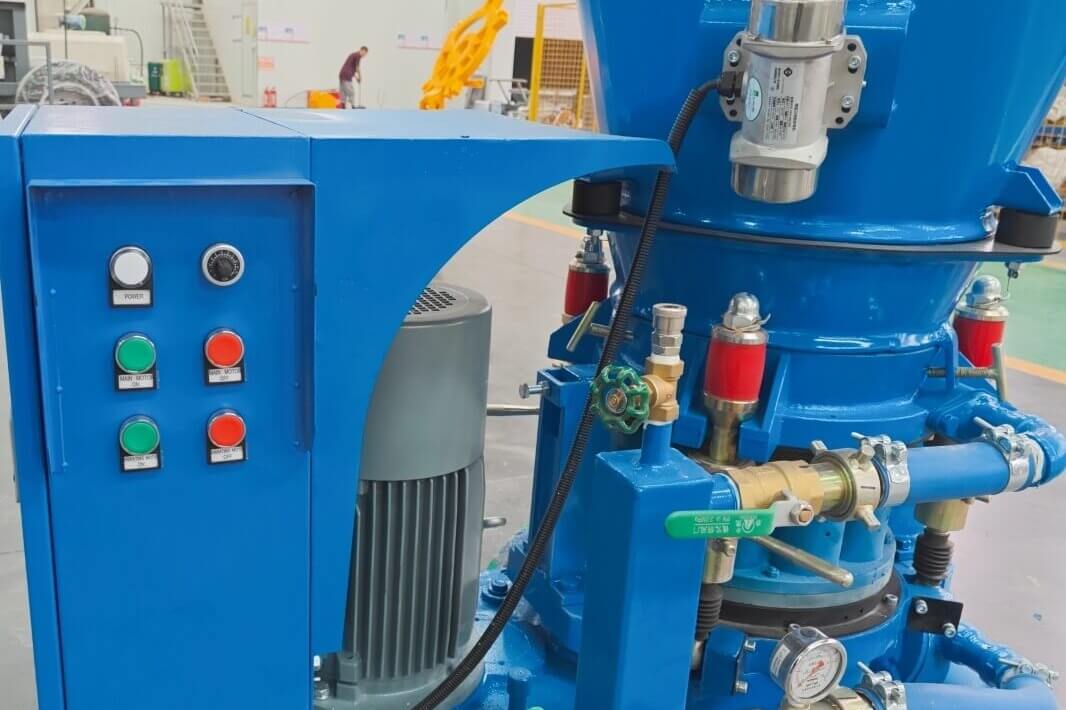

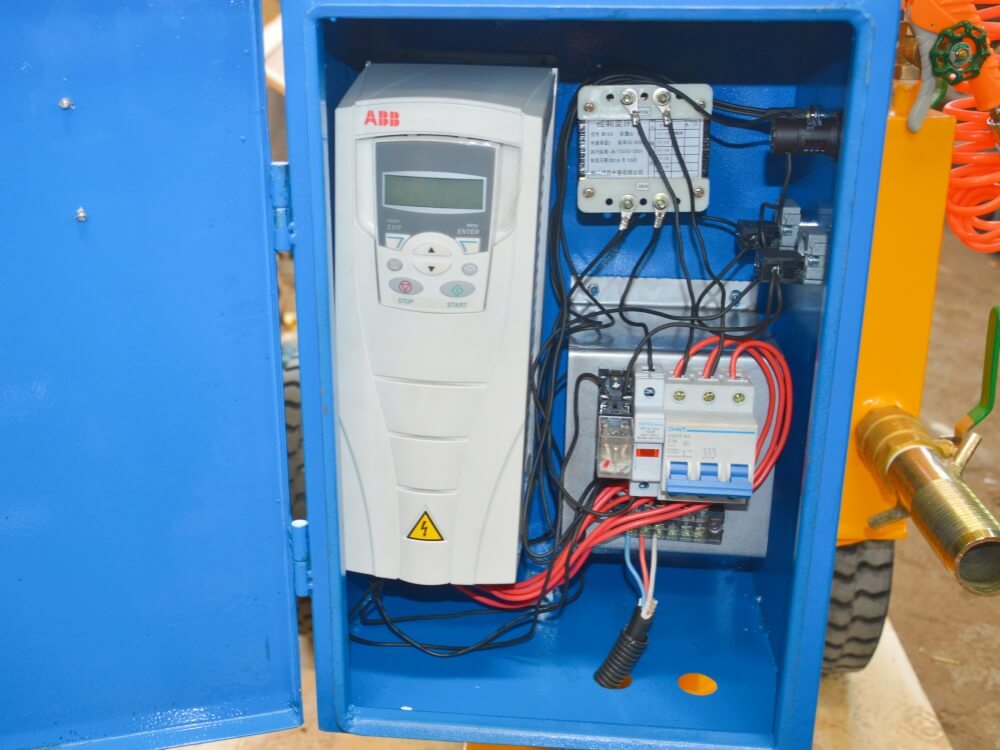

variable-frequency drive -

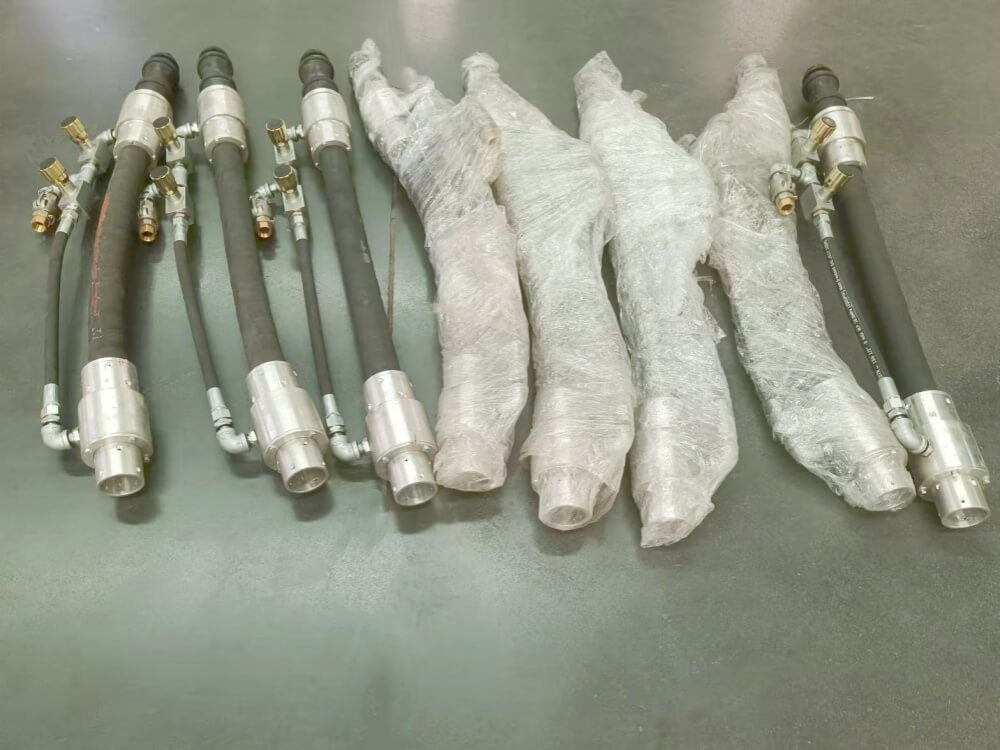

shotcrete nozzle -

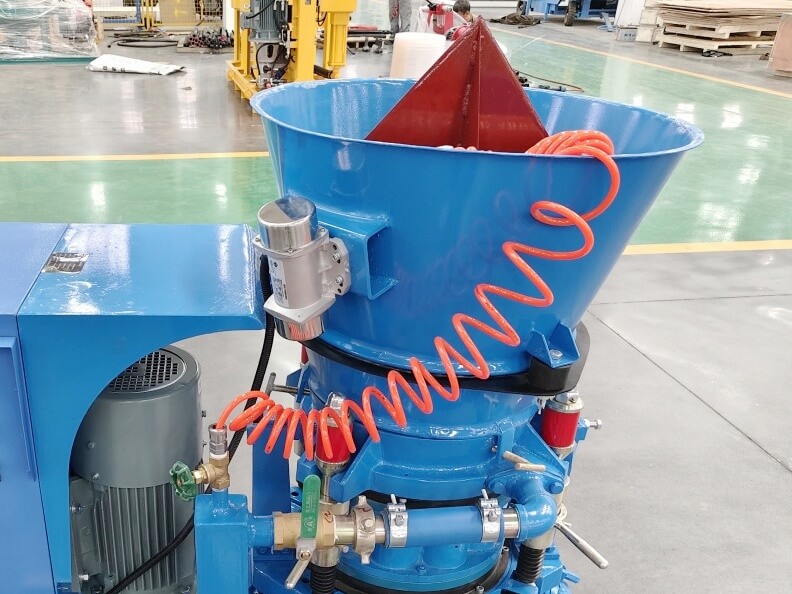

bag cutter and high hopper with vibrator -

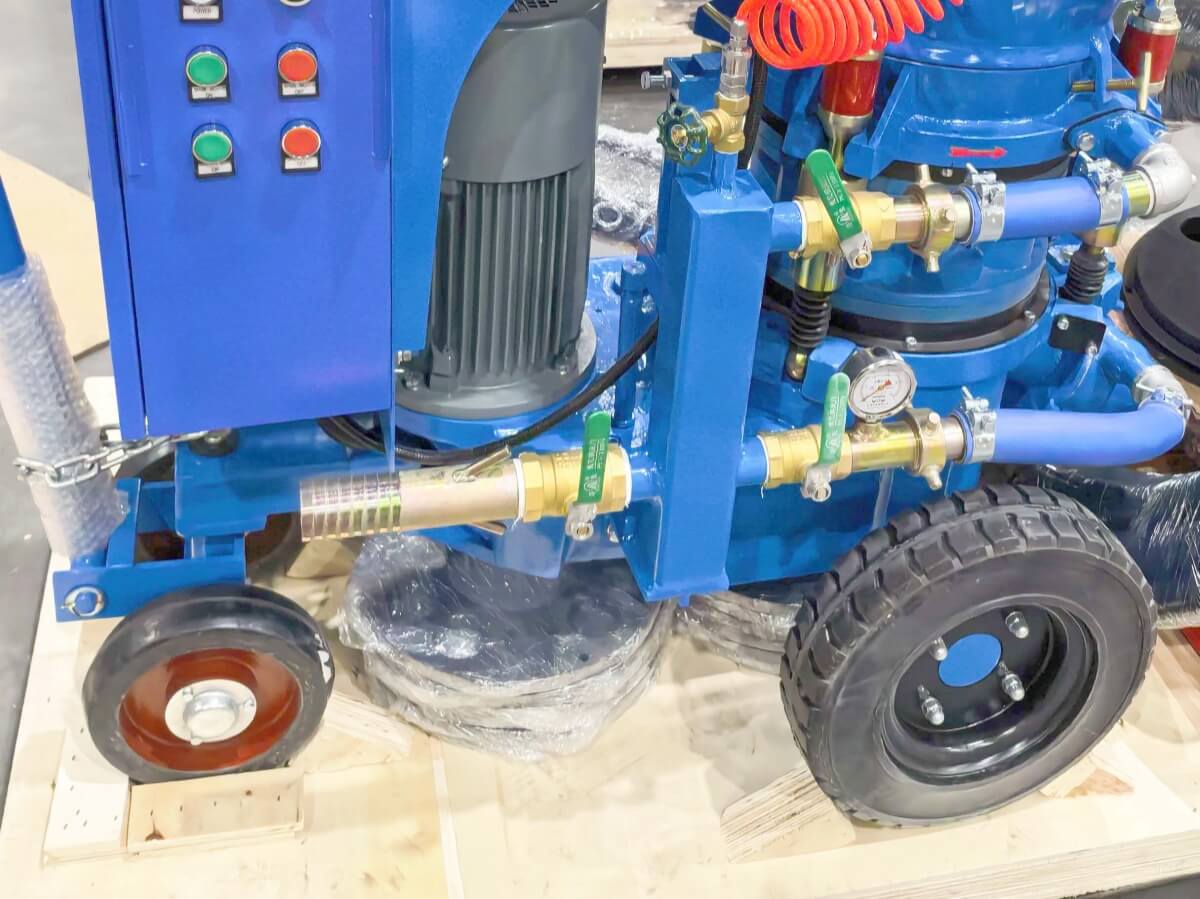

heavy duty solid wheels
Technical Parameters
| Rated Output | 1-3m3 /h(2-6/h) gunite machine |
| Max. Horizontal Conveying Distance | 100m |
| Max. Aggregate Size | Φ10 mm |
| Conveying Hose Inner Diameter | 32/38mm |
| Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 5~6m3/min(180-215CFM) |
| Motor Power | 4kW |
| Voltage | 3 phase,380V,50Hz |
| Material Charging Height | 1.1m |
| Rotor Speed/ | 0-13.2r/min |
| Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
| Weight | 430kg |

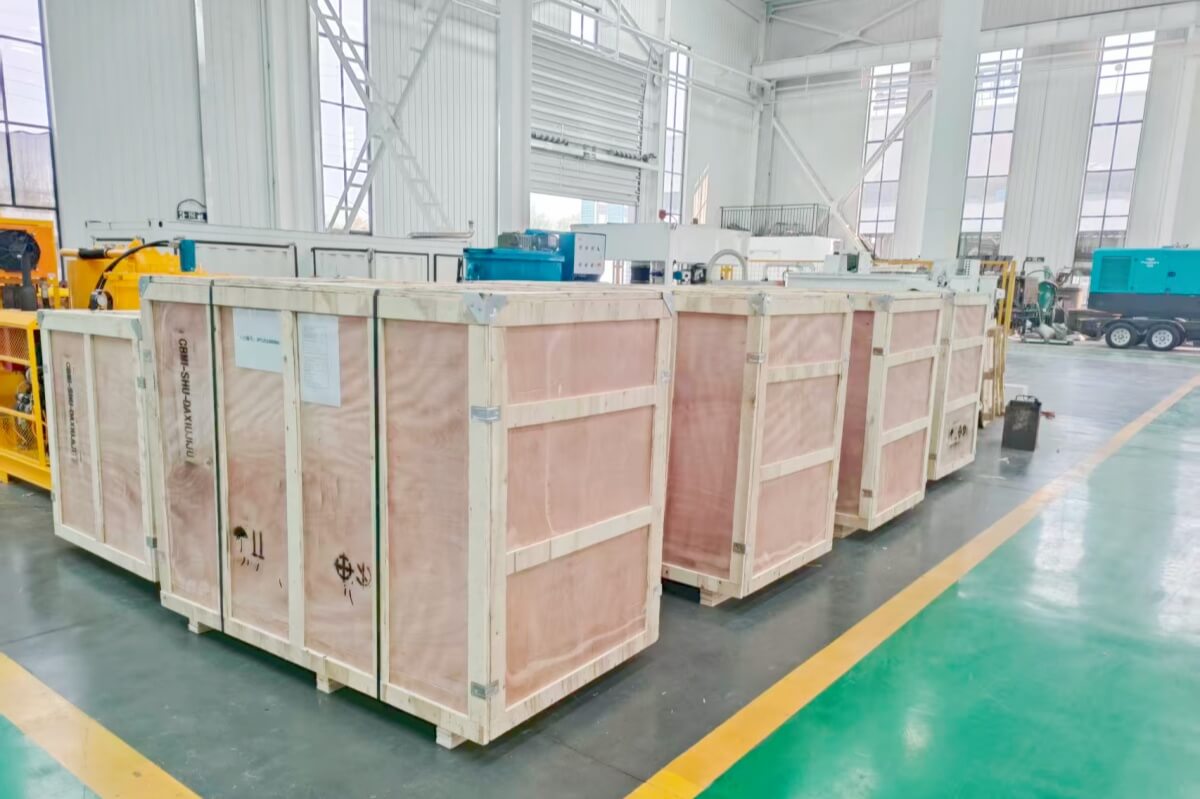

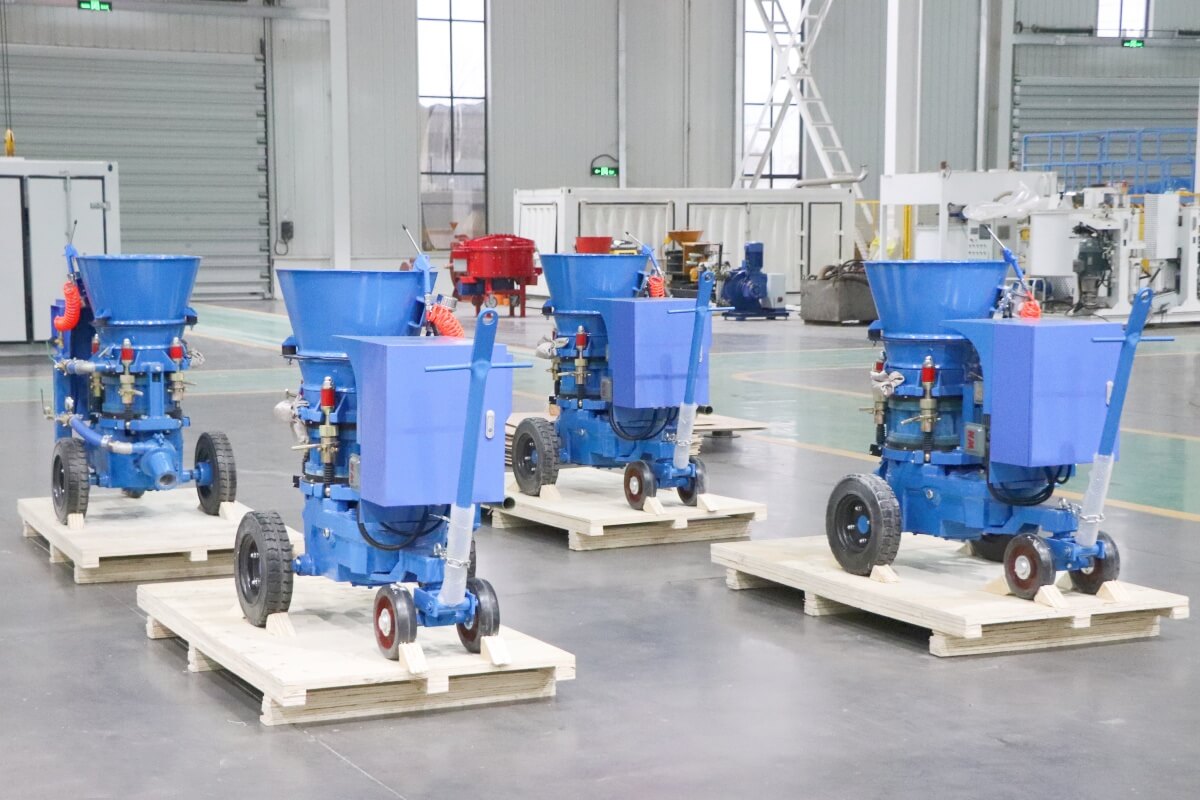

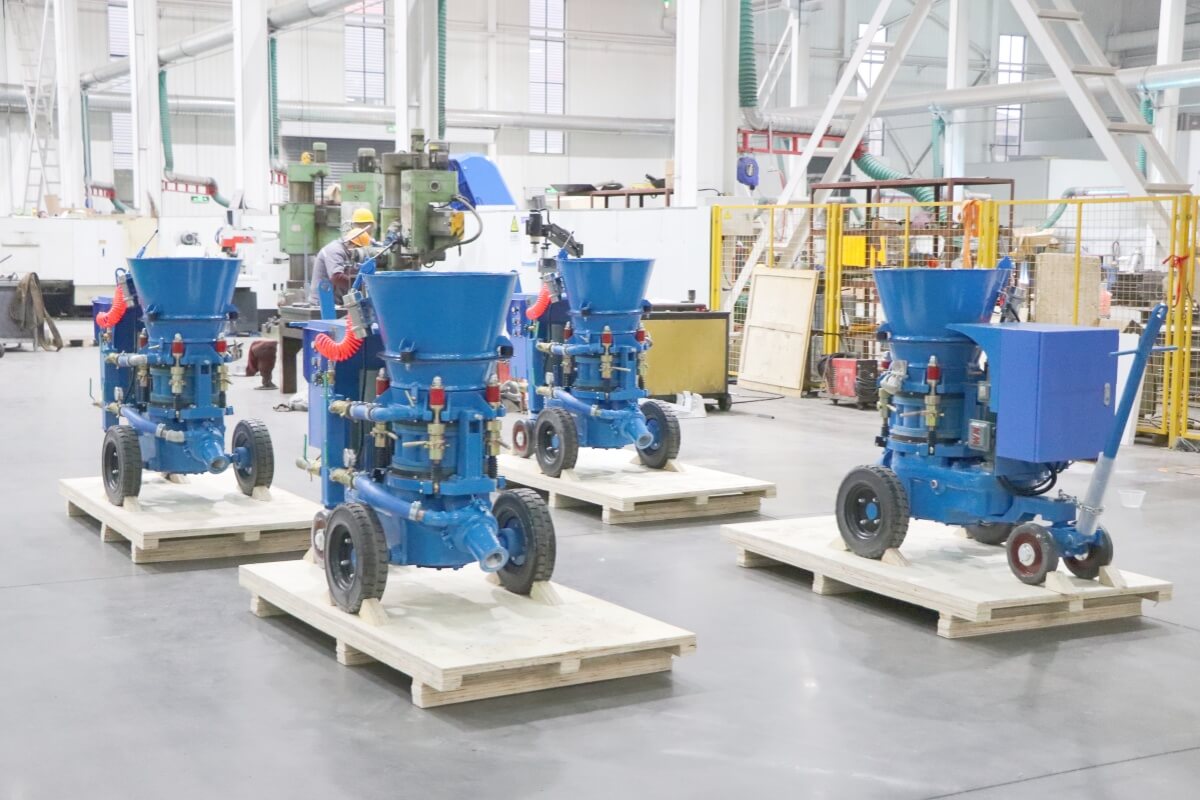

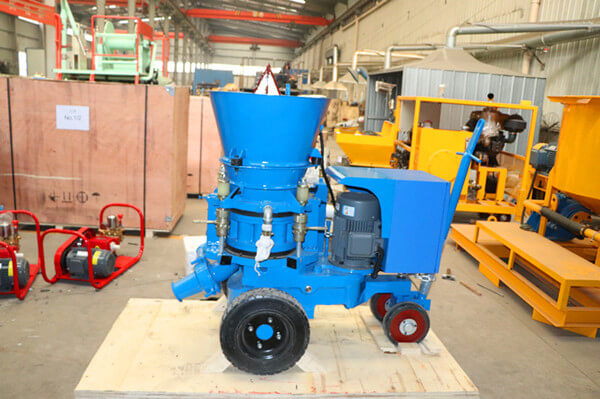

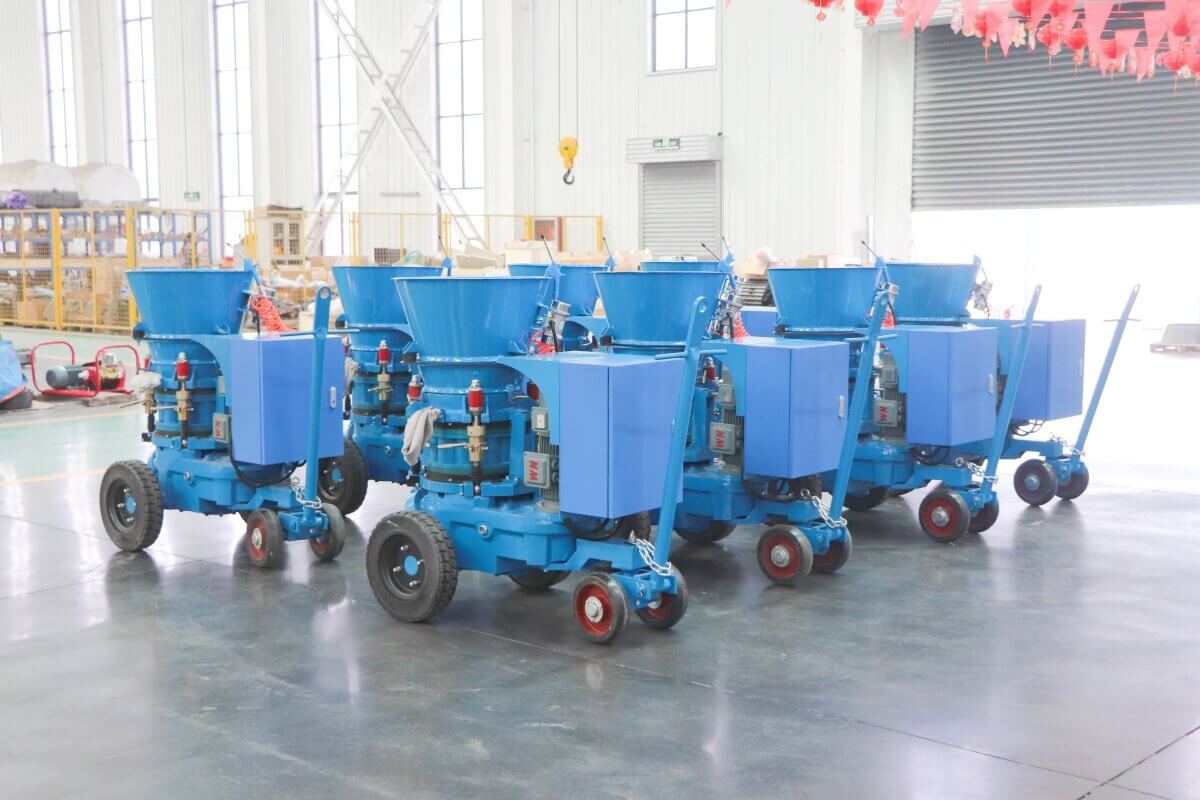

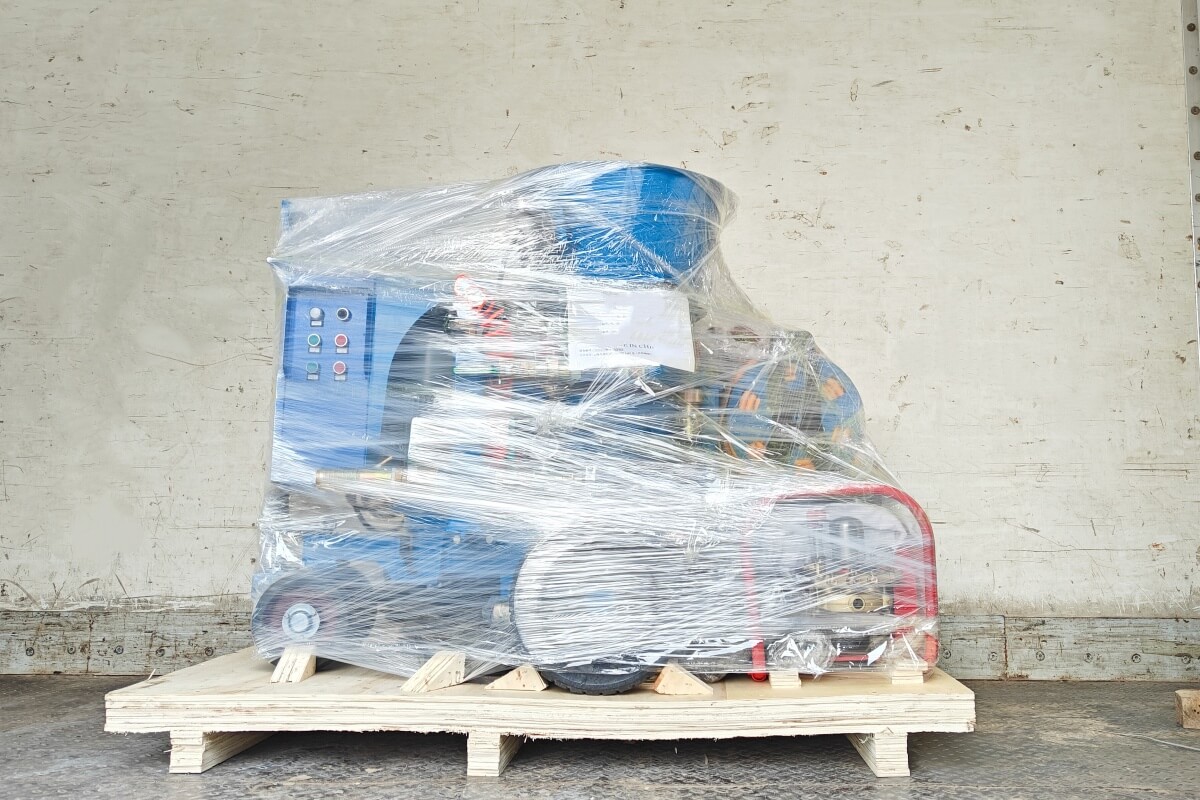

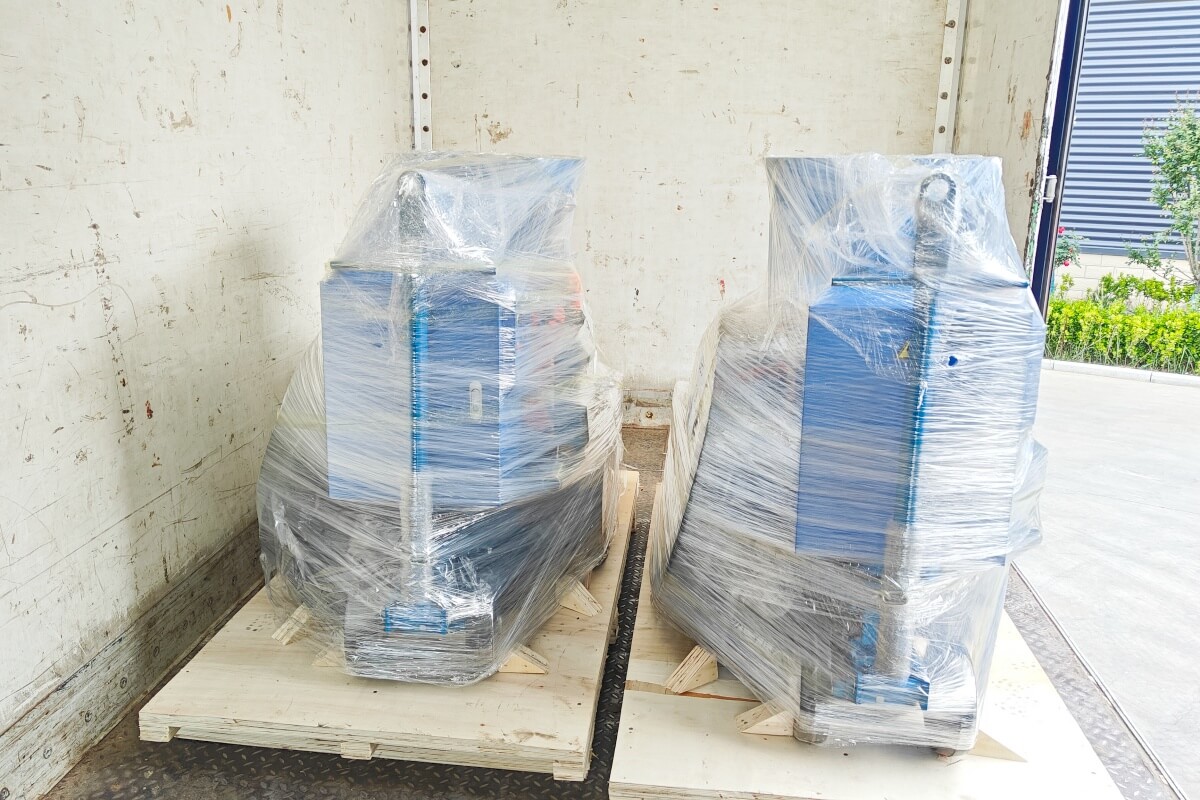

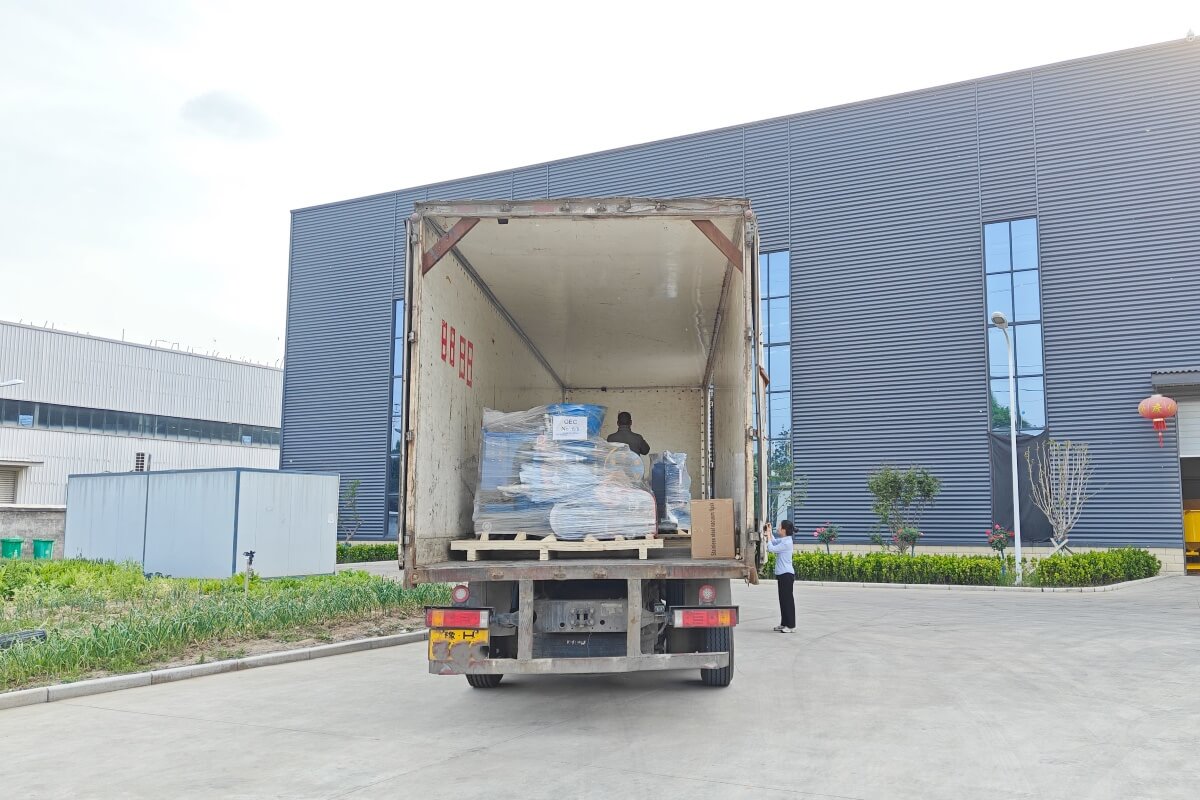

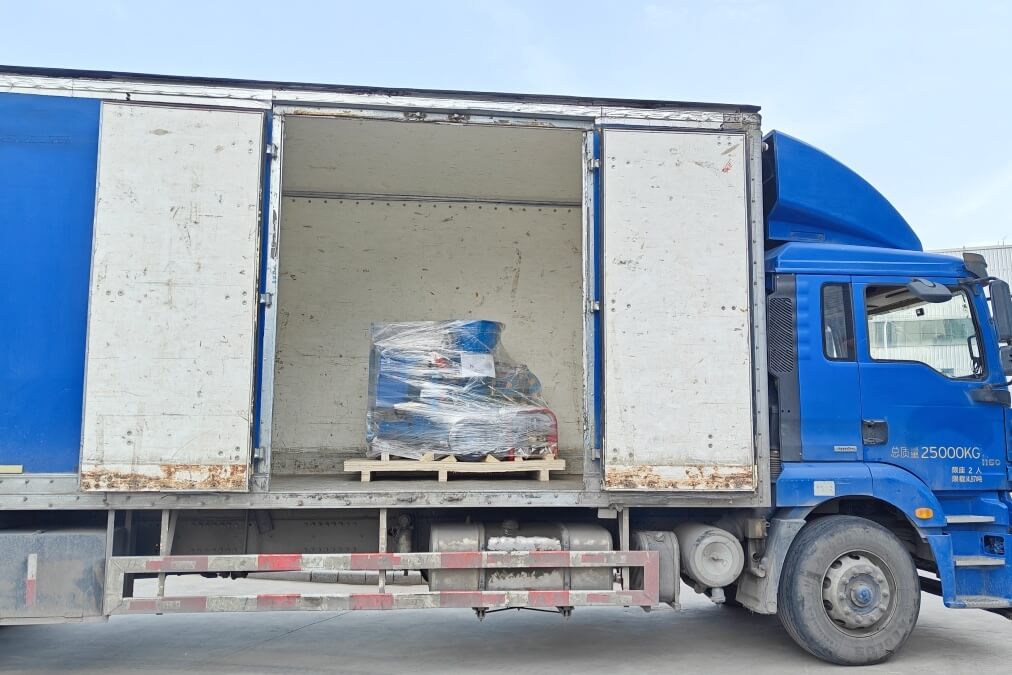

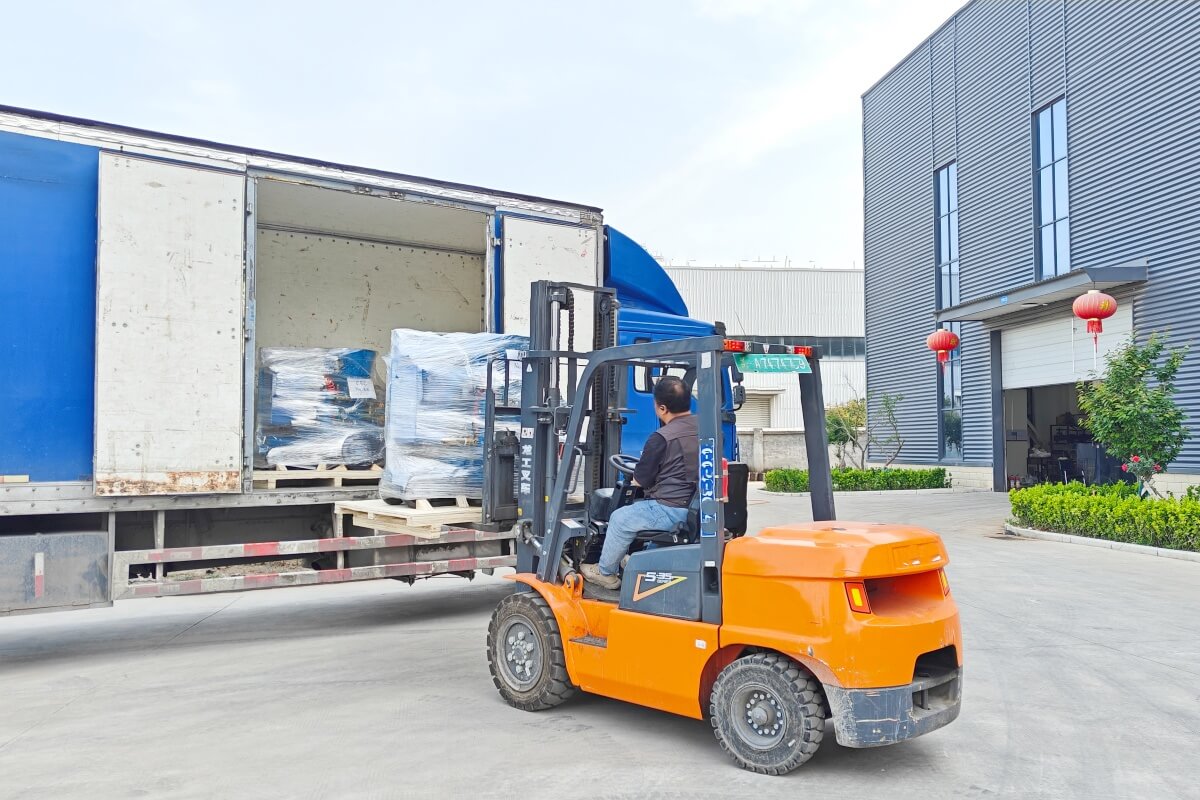

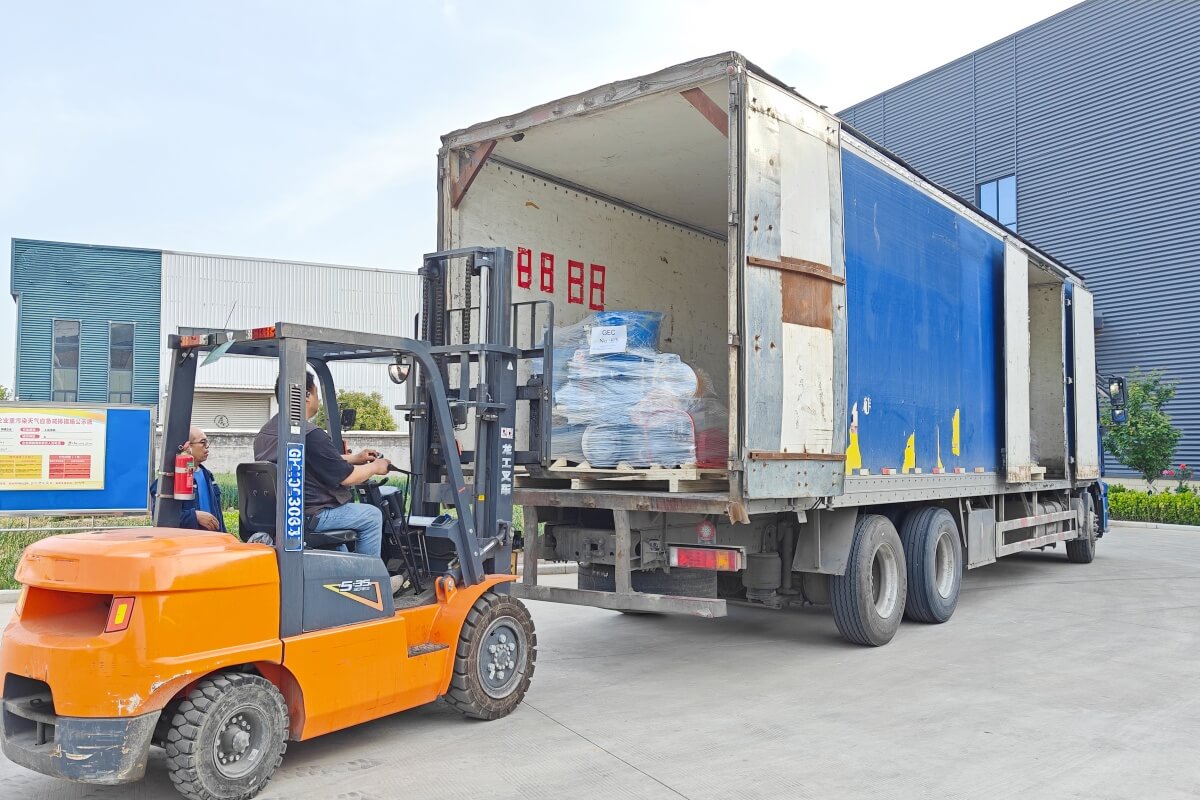

Refractory gunite machine factory delivery pictures:
