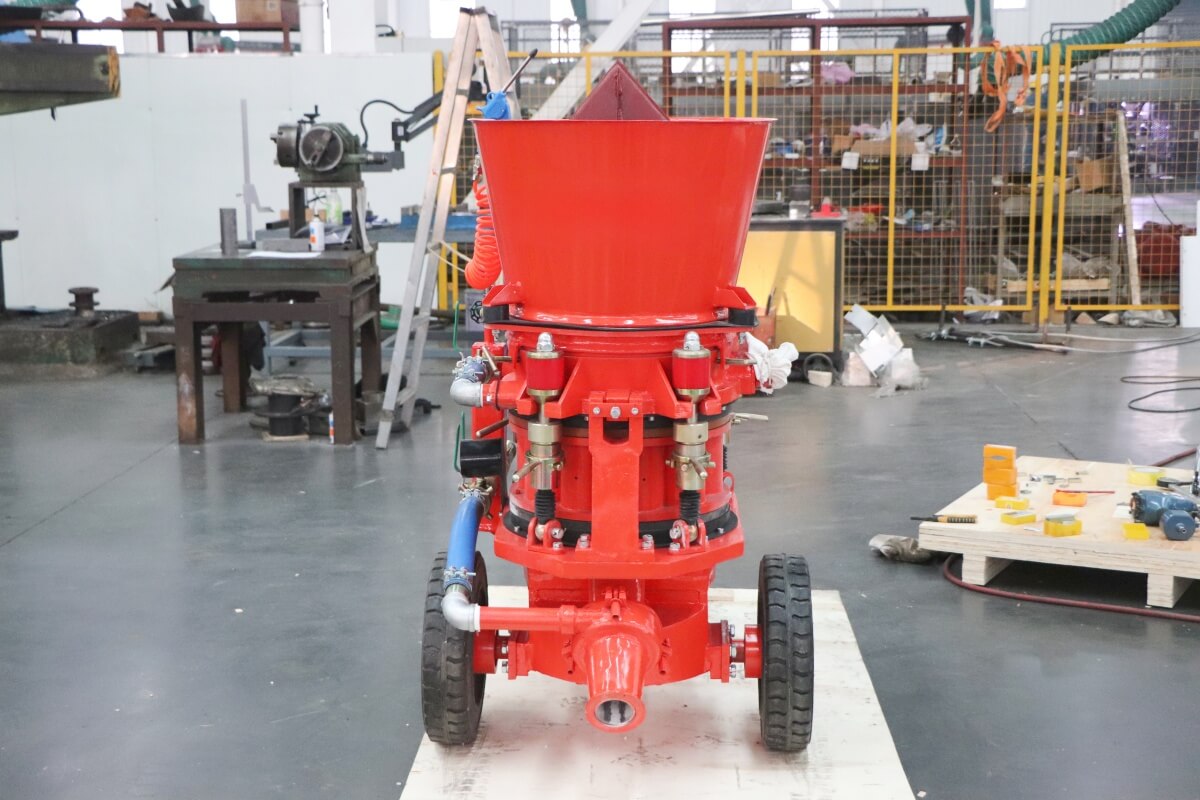

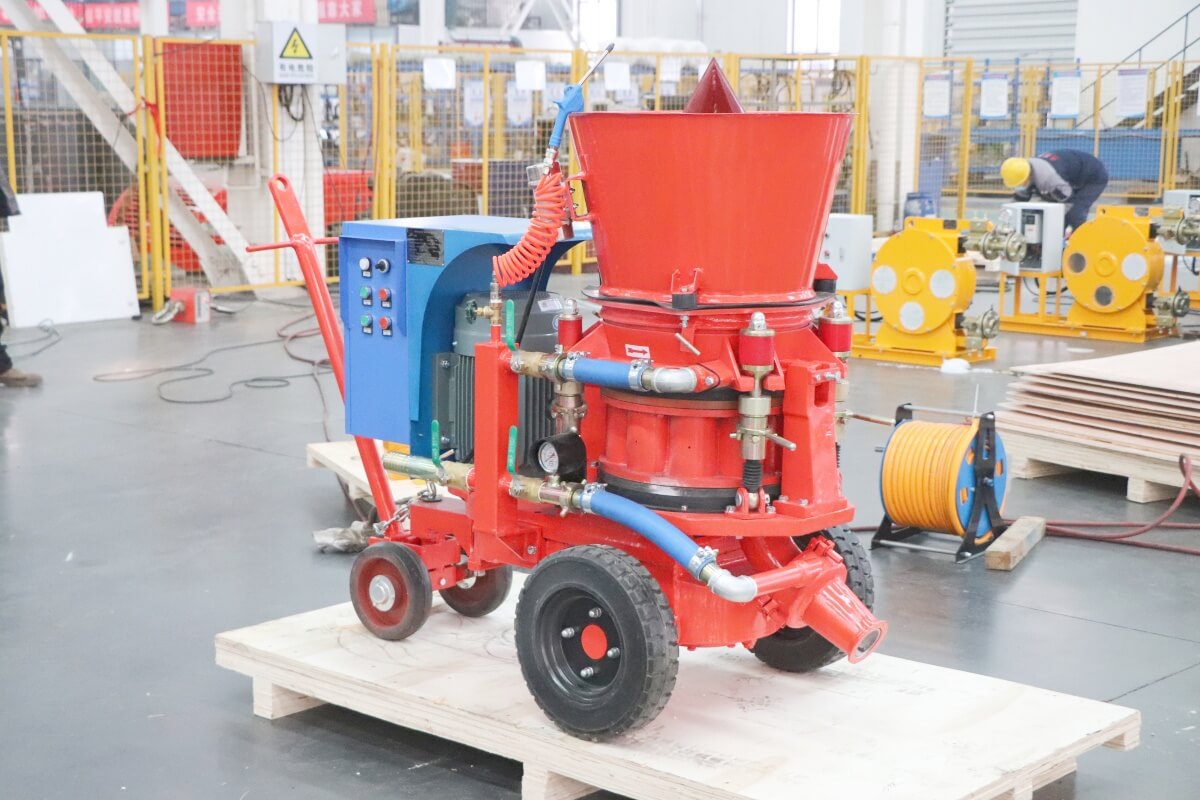

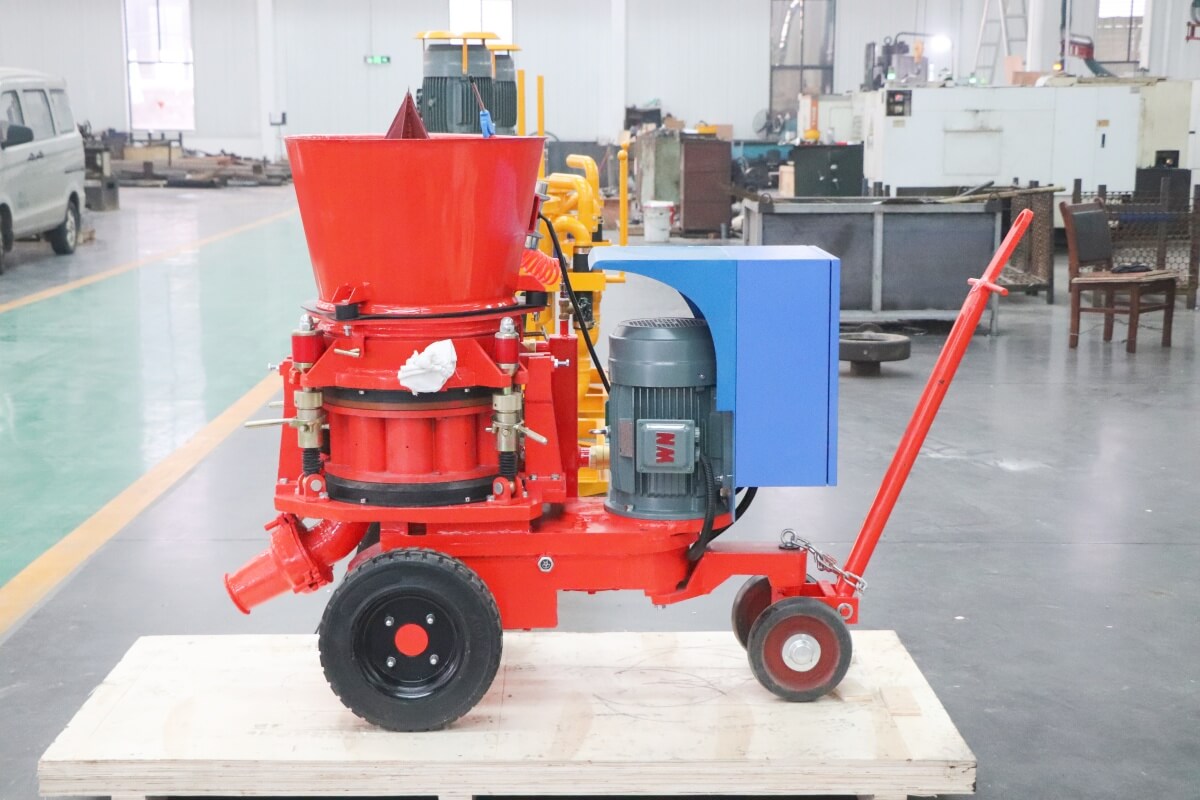

LZ-5ER Gunning Machine for Refractory
LZ-5ER gunning machine for refractory for sale is a dry gunning machine designed for dry spraying refractory materials. It usually contains additives that make it more sticky.
1-5m3 /h(2-10ton/h)
100m
Φ15mm
51mm
0.2-0.4MPa(29-58PSI)
8~9m3/min(285-325CFM)
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LZ-5ER gunning machine for refractory for sale is a dry gunning machine designed for dry spraying refractory materials. It usually contains additives that make it more sticky.
The spray gun is applied by a special machine. LZ-5ER gunning machine uses compressed air to push the dry (or pre-wetted) spray gun through the hose into the target. Add water (or additives) to the nozzle to wet the dry mixture and make it stick to the surface.
The spray gun is applied by a special machine. LZ-5ER gunning machine uses compressed air to push the dry (or pre-wetted) spray gun through the hose into the target. Add water (or additives) to the nozzle to wet the dry mixture and make it stick to the surface.
Application
LZ-5ER gunning machine is mainly used in metallurgy and glass factory furnace linings, refractory concrete mixture spraying in heating plants, boilers, coke oven batteries, cement plants, but also in metallurgy, chemical and glass processing industries.
Features
The main features of LZ-5ER gunning machine are as follows：
♦New!!! Pre-dampening Nozzle!
1. Low rebound, low dust.
2. Reduce additive water amount.
3. Improve refractory compactness and strength.

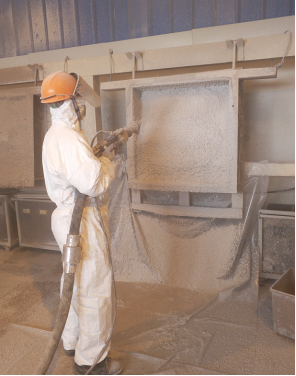

♦Refractory Gunning Machine spraying effect.
Product Details
-
Clamping device, galvanization process to avoid rust -
.JPG)
Hopper for refractory gunning machine -
Pneumatic distribution device -
Electric vibrator, high excitation force -
ABB frequency converter -
Unique four-point pressing point, good sealing performance
Technical Parameters
| Rated Output | 1-5m3 /h(2-10ton/h) |
| Max. Horizontal Conveying Distance | 100m |
| Max. Aggregate Size | Φ15mm |
| Conveying Hose Inner Diameter | 51mm |
| Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 8~9m3/min(285-325CFM) |
| Motor Power | 5.5kW |
| Voltage | 3 phase,380V,50Hz |
| Material Charging Height | 1.1m |
| Rotor Speed | 0-13.2r/min |
| Overall Dimension(L×W×H) | 1.32×0.75×1.2m |
| Weight | 720kg |
.jpg)
