LH32-330SR Single roller hose pump for sale
No valve, no seal single roller hose pump for sale with best price, any need this peristaltic hose pump, you can contact us freely.
1200L/h
10bar
32mm
30rpm
3Kw, IP55
380V, 50HZ, 3phase, customized
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LH32-330SR single roller hose pump, different with foreign press shoe structure, single roller design reduce number of hose squeezing, extend the hose service life. Usually single circulation flow is larger than conventional press shoe design. Based on different characteristic pumping materials, Leadcrete Equipment could provide NR, NBR and EPDM different materials squeeze hose for industrial hose pump.
Working principle of single roller hose pump:
When the rotor unit drives single roller to rotate, hose is squeezed and deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through output under rollers' push, finally forms pressure conveying of slurries.
Working principle of single roller hose pump:
When the rotor unit drives single roller to rotate, hose is squeezed and deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through output under rollers' push, finally forms pressure conveying of slurries.
Application
Compared with other type pump, LH32-330SR Single roller hose pump for sale have many wide application fields. Such as:
- Construction
- Water and Waste Treatment
- Papermarking
- Mining
- Ceramic and Glass
- Food and Beverage
- Textile Mill
Features
1. No valve, no seal;
2. Simple structure, easy maintenance;
3. Only hose contact with pumping materials;
4. Reversibility, convenient for emptying the pipeline or clearing blockages;
5. Single roller reduce number of hose squeezing, extend the hose service life;
6. Single circulation flow of LH32-330SR Single roller hose pump for sale is larger than conventional press shoe design.
2. Simple structure, easy maintenance;
3. Only hose contact with pumping materials;
4. Reversibility, convenient for emptying the pipeline or clearing blockages;
5. Single roller reduce number of hose squeezing, extend the hose service life;
6. Single circulation flow of LH32-330SR Single roller hose pump for sale is larger than conventional press shoe design.
Product Details
-
Single roller peristaltic hose pump design -
Single roller hose pump design -
Single roller peristaltic pump design -
Hydraulic motor solo roller hose pump for sale -
Hydraulic solo roller hose pump -
Hydraulic motor solo roller squeeze hose pump
Technical Parameters
Technical Data
| Electric motor LH32-330SR single roller hose pump | |
| Model | LH32-330SR |
| Output | 1200L/h |
| Working Pressure | 10bar |
| Squeeze hose ID | 32mm |
| Rotate Speed | 30rpm |
| Motor Power | 3Kw, IP55 |
| Voltage | 380V, 50HZ, 3phase, customized |
| Dimension | 580x550x790mm |

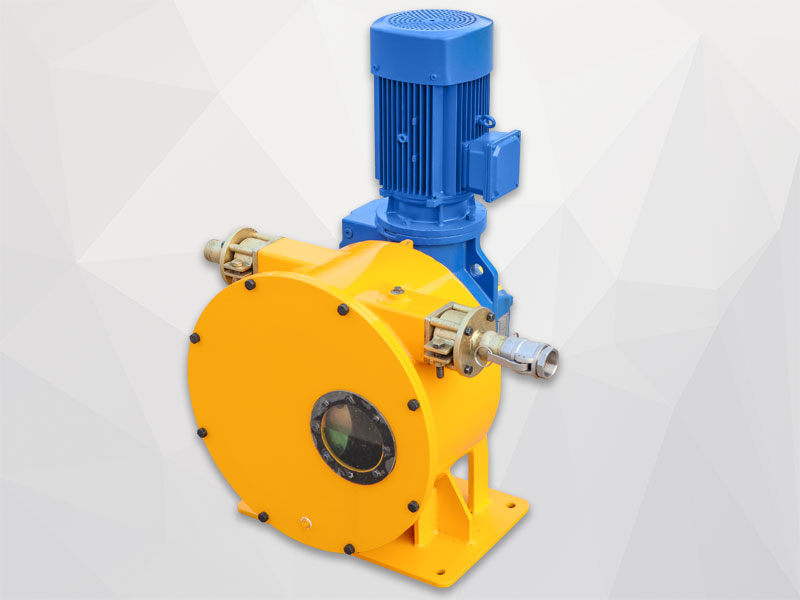

Electric motor LH32-330SR single roller hose pump pictures
| Hydraulic drive LH32-330SR single roller hose pump | |
| Model | LH32-330SR |
| Output | 1900L/h |
| Working Pressure | 10bar |
| Squeeze Hose ID | 32mm |
| Rotate Speed | 30rpm |
| Motor Power | 3Kw, IP55 |
| Voltage | 380V, 50HZ, 3phase, customized |
| Dimension | 580x550x790mm |
| Optional: Hydraulic Drive | LM1-320 motor. Required Hydraulic power: 12L/min@13MPa |
Hydraulic motor LH32-330SR single roller hose pump pictures
