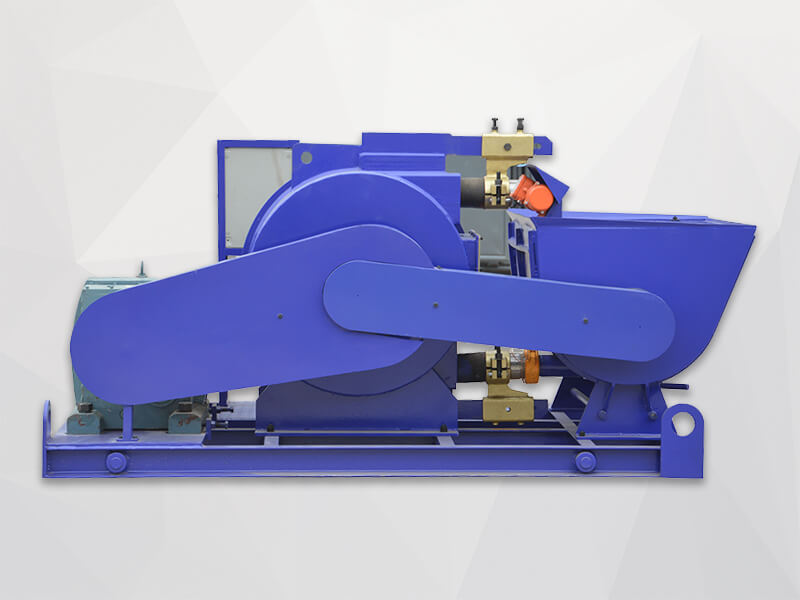

LCP15H-E Industrial Peristaltic Hose Pump
LCP15H-E Industrial Peristaltic Hose Pump is designed by Peristaltic Pump Manufacturer Lead Equipment based on a concrete pump. This industrial peristaltic pump uses a high pressure, wear-resistant extrusion tube. More widely used for pumping foam concrete, lightweight concrete, mortar and refractory materials. LCP15H-E industrial peristaltic pump can also be used for spraying or grouting concrete or refractory materials.
parameter
LH76-610
75mm (Trelleborg Squeeze hose)
37rpm
15m3/h
2.5Mpa
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data

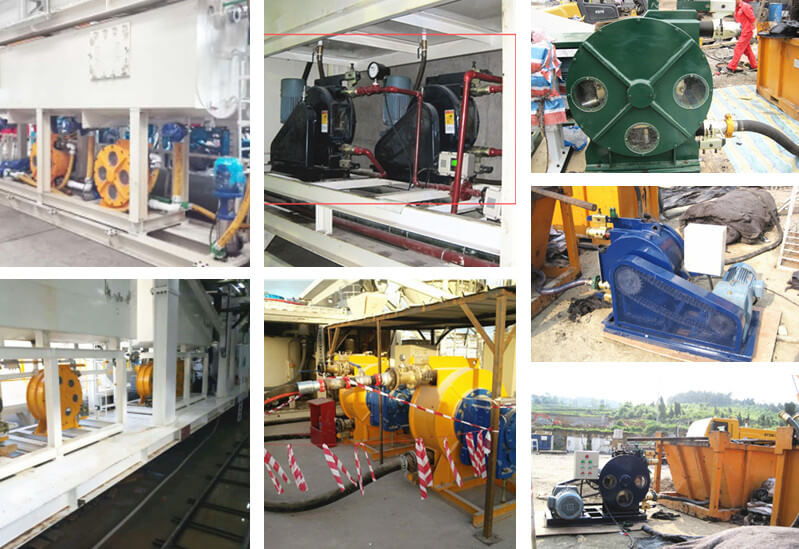

Cases
Inquiry
Description
LCP15H-E industrial peristaltic pump is designed by industrial peristaltic pump manufacturer Lead Equipment based on a concrete pump. LCP15H-E industrial peristaltic pump uses a high pressure, wear-resistant extrusion tube,the pressure can reach 2.5Mpa, and the output is 15m3/h. More widely used for pumping foam concrete, lightweight concrete, mortar and refractory materials. LCP15H-E Industrial Peristaltic Pump can also be used for spraying or grouting concrete or refractory materials.
Lead Equipment is an industrial peristaltic pump manufacturer specializing in R&D, manufacturing and sales. We strictly control the quality of the entire industrial peristaltic hose pump and have passed ISO9001: 2008, CE and SGS certification.
Lead Equipment is an industrial peristaltic pump manufacturer specializing in R&D, manufacturing and sales. We strictly control the quality of the entire industrial peristaltic hose pump and have passed ISO9001: 2008, CE and SGS certification.
Application
LCP15H-E Industrial Peristaltic Hose Pump has no seal, no leakage, strong self priming ability, simple structure, convenient operation and maintenance. Peristaltic Hose Pump is suitable for conveying all kinds of viscosity, density, corrosive and abrasive materials. It can be used for ground construction, underground engineering, tunnels, mines, highways, railways, hydropower and construction projects.
Features
The main features of the LCP15H-E industrial peristaltic pump are as follows:
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. LCP15H-E industrial peristaltic pump installation of frequency control, stepless output.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Reversible work, facilitate the removal of plugging failure.
6. Clean on the line, sample, convenient.
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. LCP15H-E industrial peristaltic pump installation of frequency control, stepless output.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Reversible work, facilitate the removal of plugging failure.
6. Clean on the line, sample, convenient.
Product Details
-
Electric control box internal structure -
Electric control box -
Hopper -
Outlet -
Pressure gauge -
Squeeze hose and inlet
Technical Parameters
Technical Data
| Description | Parameter |
| Squeeze Hose Pump | LH76-610 |
| Hose ID | 75mm (Trelleborg Squeeze hose) |
| Speed | 37rpm |
| Output | 15m3/h |
| Pressure | 2.5Mpa |
| Max. Aggregate size | <15mm |
| Concrete Slump | 15-23cm |
| Hopper Capacity | 350L |
| Stirring speed | 37rpm |
| Reducer Model | NR137 |
| Voltage | 22KW 50HZ IP55 3~380V |
| Overall Dimension | 2400x1300x1200mm |
| Weight | 1560kg |
| Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar | |
