LCP15H-D Diesel Squeeze Hose Concrete Pump for Sale
LCP15H-D Diesel Squeeze Hose Concrete Pump for Sale was designed based on the squeeze hose pump, the concrete pump uses high pressure, wear resisting extruded tubes. Usually only the extruded hose is in contact with the material, and different extruded hoses can be replaced according to the characteristics of the pumped material.
parameter
LH76-610
37rpm
15m3/h
2.5Mpa
<15mm
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LCP15H-D hose concrete pump for sale was designed based on the squeeze hose pump, the concrete pump uses high pressure, wear resisting extruded tubes. More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.

Diesel Squeeze Hose Concrete Pump
hose pump for pumping concrete
Squeeze Concrete Pump
Squeeze Hose Concrete Pump
Squeeze Hose Pump

LCP15H-D hose concrete pump for sale in many countries in the world, such as Malaysia, Mexico, UAE, Saudi Arabia, Singapore, Kazakhstan, Thailand, Myanmar, Russia and many other countries, and has been well received by foreign customers.

Shipment of squeeze hose concrete pump

LCP15H-D hose concrete pump for sale have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.
Application
LCP15H-D hose concrete pump for sale can be used in the following applications:
1. Construction: mortar, concrete and spraying and transfer
2. Textile mill: fiber, liquid, dye and wastewater transfer
3. Dye manufacturing: paint, paint and pigment delivery
4. Water treatment: transport water and wastewater
5. Papermaking: Conveying pulp, pigments and glue
6. Mining: Conveying Mineral Waste
7. Ceramics: conveying glaze and coloring
8. Beer and beverages: convey beer, wine, milk, juice, additives and residues
9. Underground Engineering: In TBM, LCP15H-D hose concrete pump for sale pump concrete, bentonite, mud, mortar, etc.

Squeeze Hose Pump cases
Features
1. LCP15H-D hose concrete pump for sale is diesel driven, with strong power.
2. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Clean on the line, sample, convenient.

Product Details
Air cooler
Clean port
Diesel engine
Stirring blade
Hopper

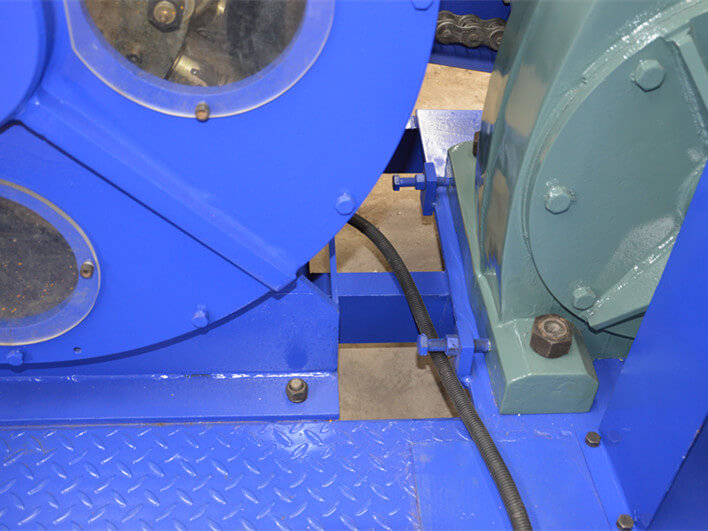

Details of hose pump
Technical Parameters
Technical Data
Description Parameter
Squeeze Pump LH76-610
Hose ID 75mm (Trelleborg Squeeze hose)
Speed 37rpm
Output 15m3/h
Pressure 2.5Mpa
Max. Aggregate size <15mm
Concrete Slump 15-23cm
Hopper Capacity 350L
Stirring speed 37rpm
Diesel engine power 30KW
Overall Dimension 2400x2100x1800mm
Weight 2300kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar
