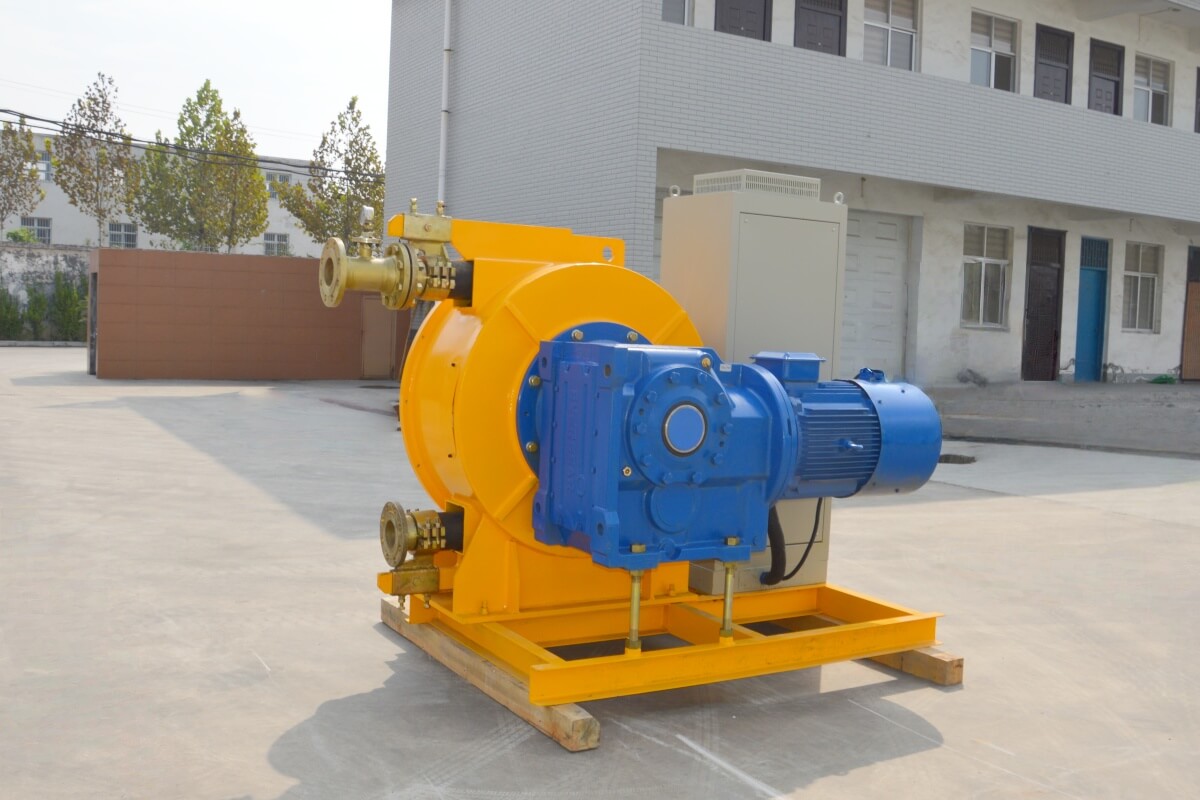

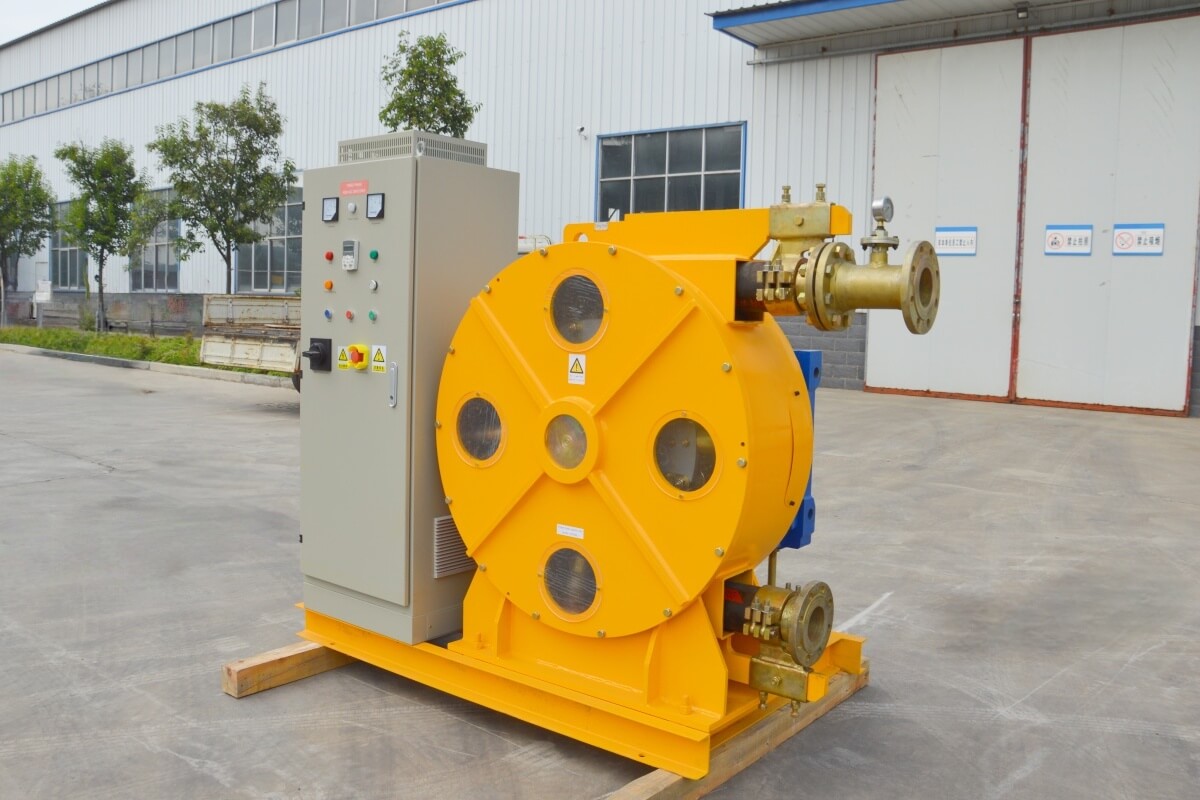

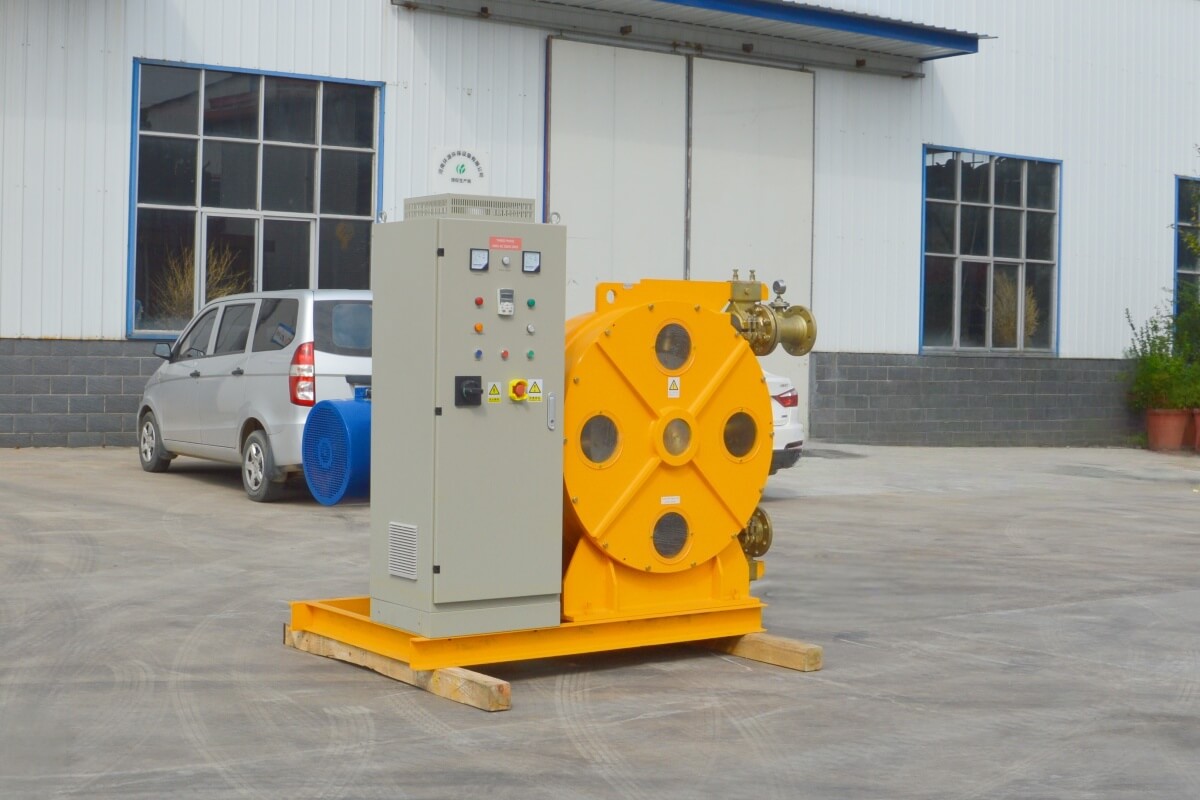

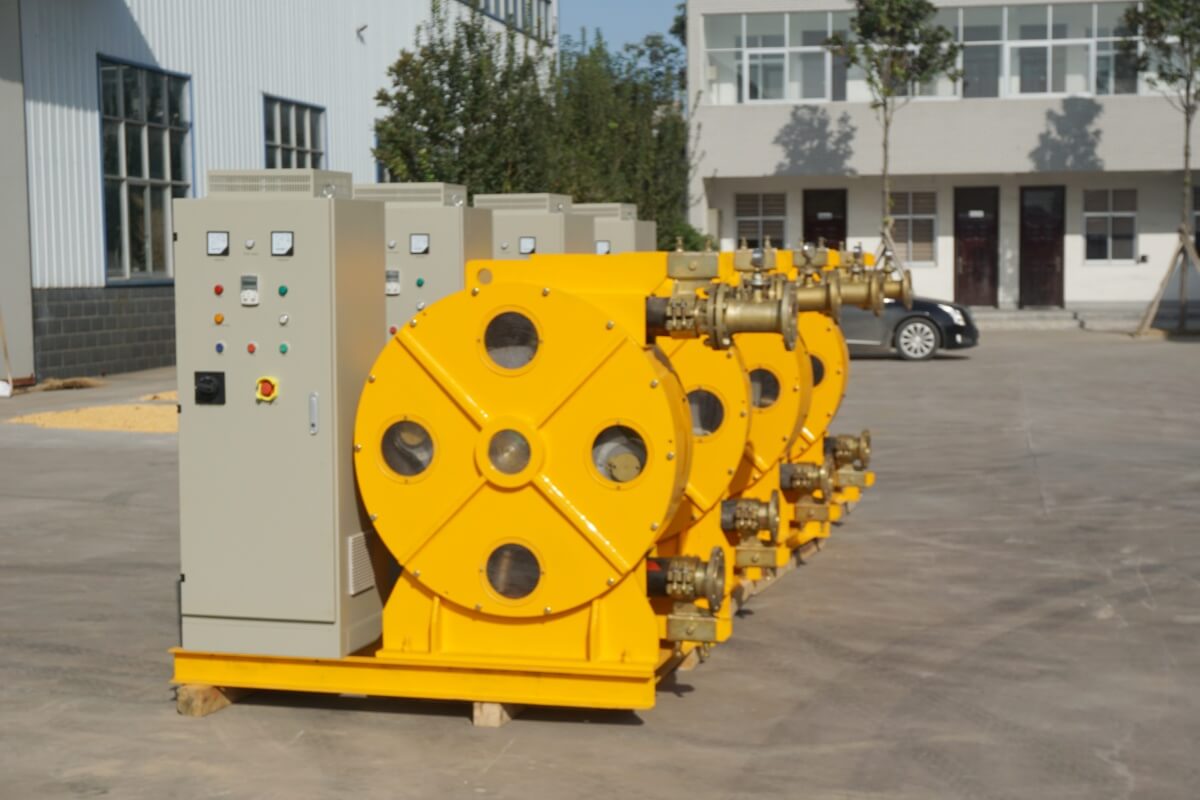

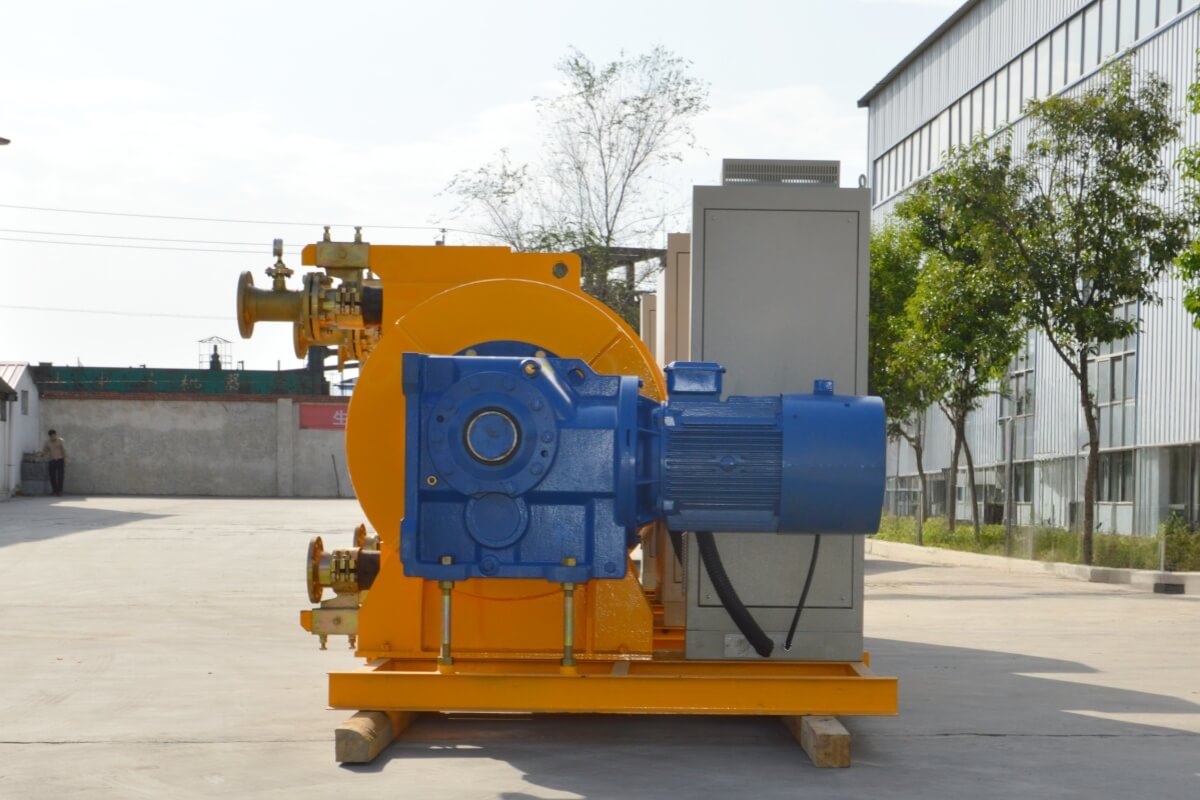

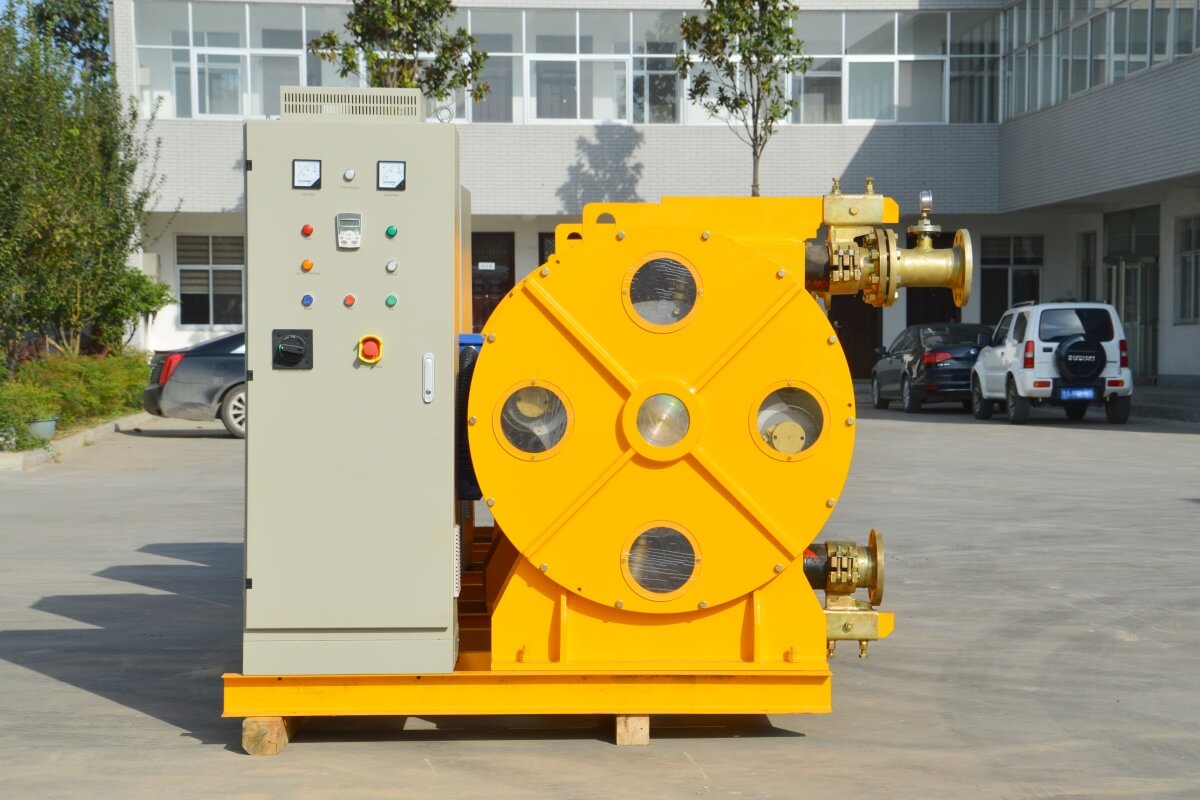

LH100-915 High Pressure Peristaltic Pump Factory
LH100-915 high pressure peristaltic pump is a new type of peristaltic pump produced by the Lead Equipment peristaltic pump factory. It uses a special process to squeeze the hose and the working pressure can reach 26bar.
32m3/h
25bar
32RPM
20mm
5m
45KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LH100-915 high pressure peristaltic pump is a new type of peristaltic pump produced by the Lead Equipment peristaltic pump factory. It uses a special process to squeeze the hose and the working pressure can reach 26bar.

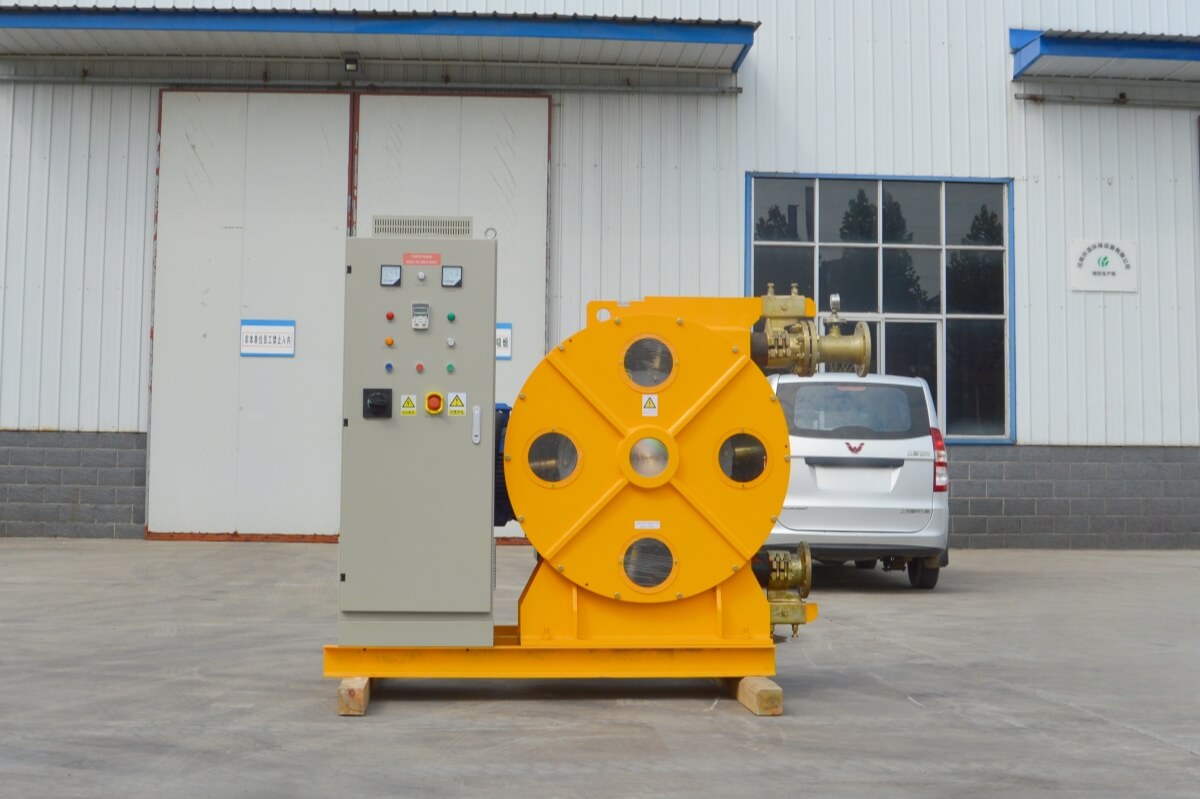

LH100-915 high pressure peristaltic pump has obvious advantages in conveying strong abrasive media. This means that the peristaltic pump has a valveless seal structure without any leakage and pollution. Only the inner cavity of the rubber hose is in contact with the medium, while the other components are completely independent of the outside of the medium; the flow rate can be adjusted linearly without blocking any fluid transport due to high viscosity and impurities.
Lead Equipment peristaltic pump factory has 20 years of experience in producing peristaltic pumps. LH100-915 high pressure peristaltic pump has been exported to foreign countries and has been sold in Malaysia, Mexico, United Arab Emirates, Saudi Arabia, Singapore, Kazakhstan, Thailand, Myanmar, Russia Waiting for sales in many countries, praised by foreign customers.

Application

LH100-915 high pressure peristaltic pumps are used in many industries:
1. Gold smelting industry: gold pulp and tailings transportation;

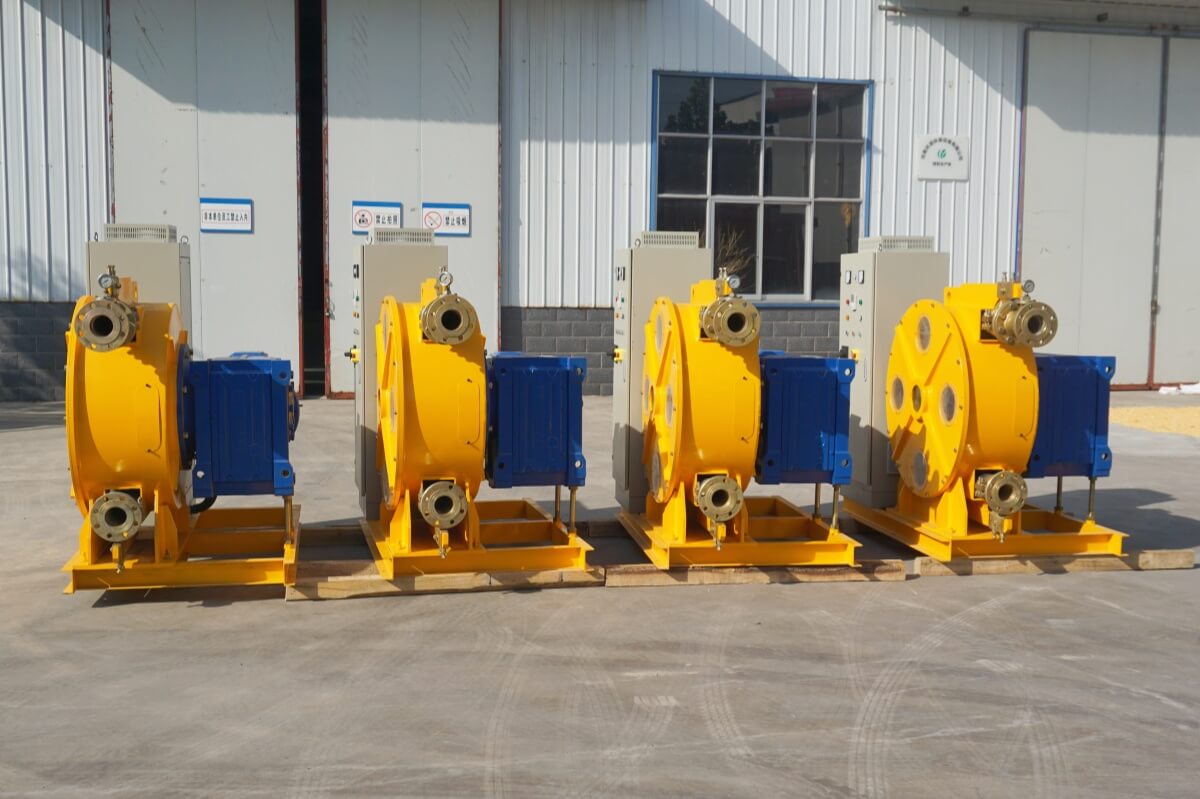

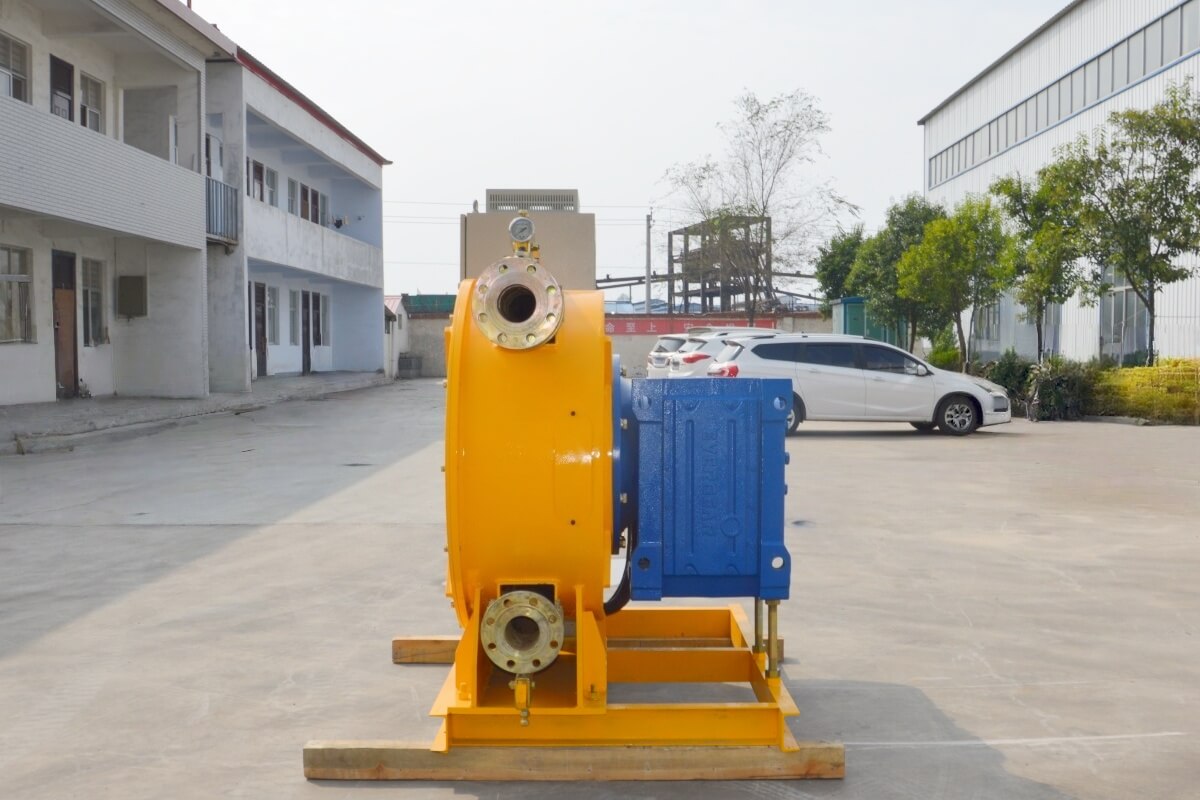

2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;
3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;
4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;
5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

Features
LH100-915 high pressure peristaltic pump is a new hose pump produced by Lead Equipment peristaltic pump factory, which absorbs advanced technology at home and abroad. LH100-915 high pressure peristaltic pump has more advantages than traditional other types of pumps.
1. No seals
2. No valves
3. Self -priming
4. Only tube to replace
5. Dry –running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time

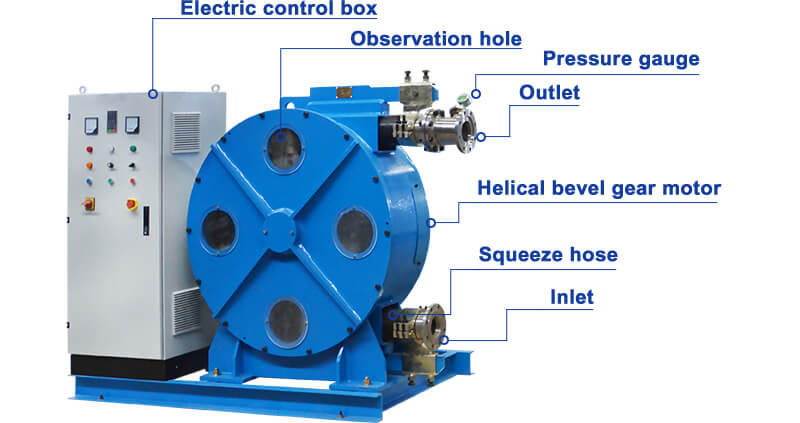

Nice quality electric control box Helical Bevel Gear Units for Reducer

Product Details

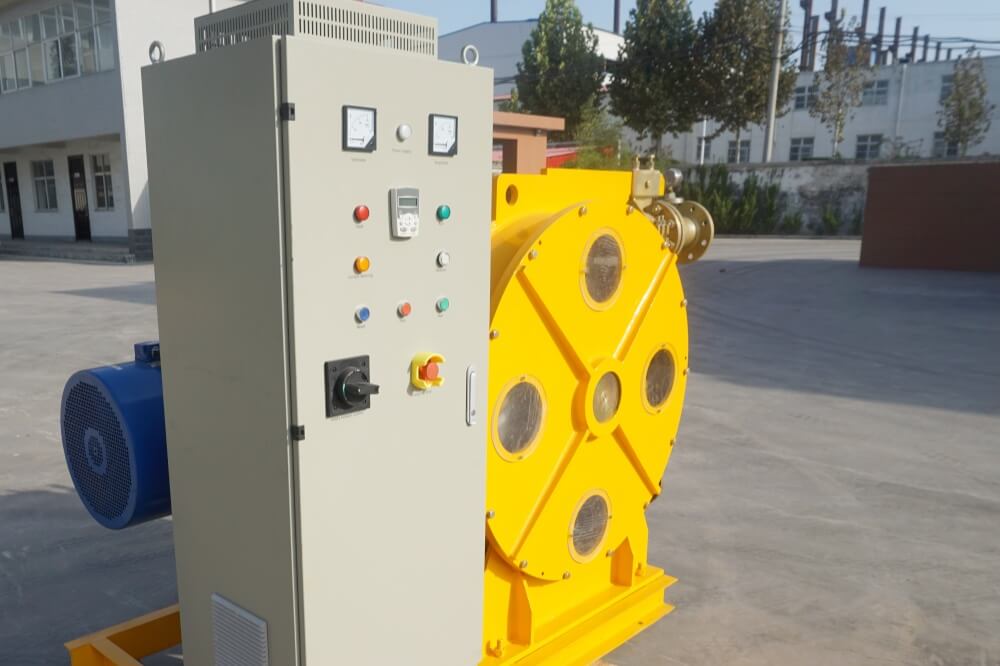

Nice quality electric control box

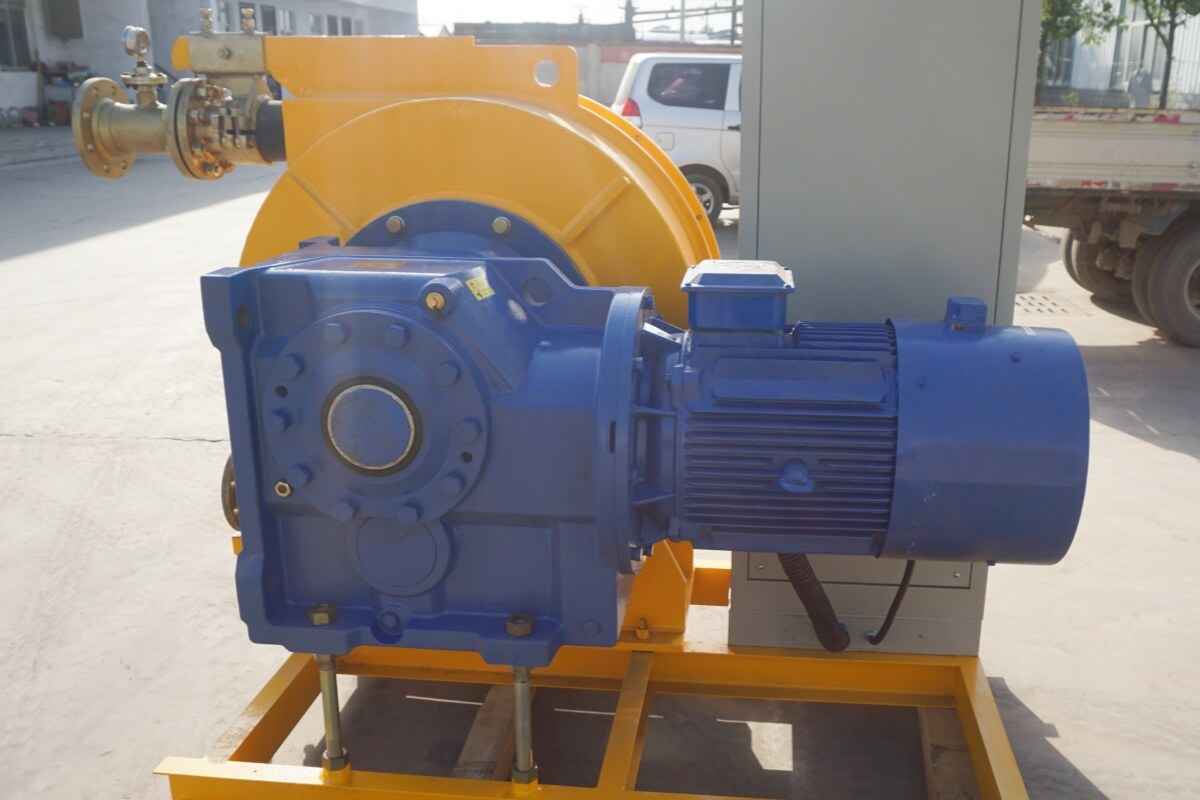

Helical Bevel Gear Units for Reducer

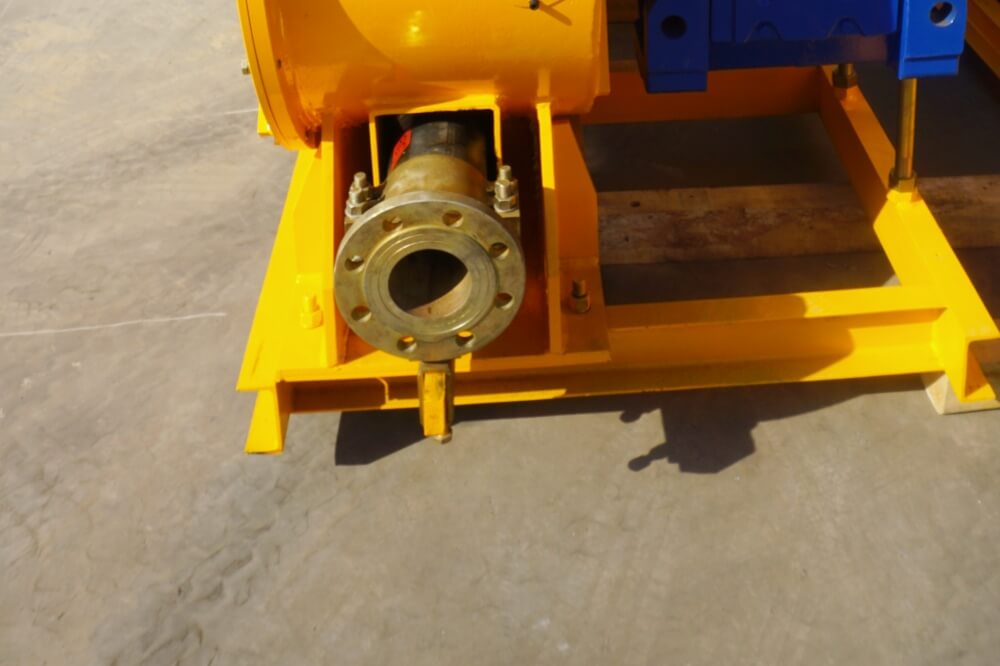

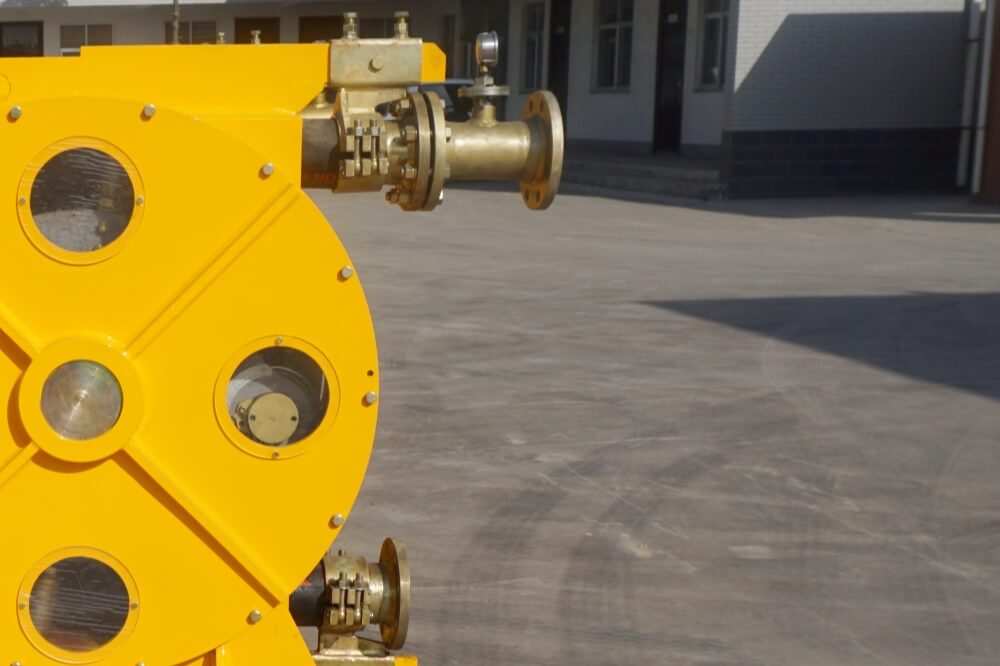

Good quality interface for peristaltic pump
Technical Parameters
Output 32m3/h
Max. Pressure 25bar
Squeeze Hose ID 100mm
Revolution Speed 32RPM
Max. Aggregate Size 20mm
Max. Suction Lift 5m
Motor Power 45KW
Weight 1750kg
