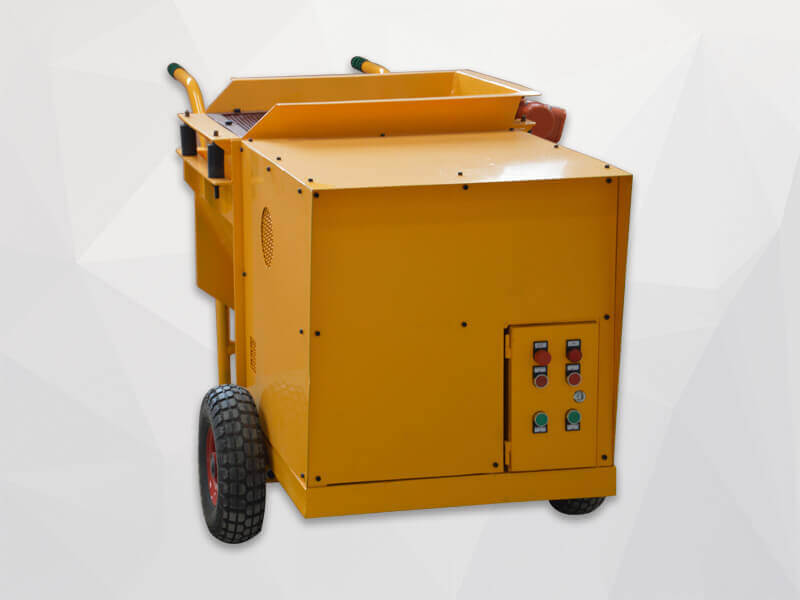

LMP35/30 Wall Plaster Machine for Sale
LMP35/30 wall plaster machine for sale is a piston pump with one single cylinder single acting, mainly was designed for conveying and spraying mortar or plaster. LMP35/30 wall plaster machine for sale has compact structure reliable operation, low failure rate, convenient cleaning, easy maintenance and high pumping pressure etc advantages, so it has widely been using for mortar spraying, pumping and grouting in tunnel excavation and maintenance mine engineering, constructing dams, bridges and foundation treatment etc. projects.
0~30bar
35L/min
100 times/minute
Φ75mmx85mm
6mm
260mm
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMP35/30 wall plaster machine for sale is a piston pump with one single cylinder single acting, mainly was designed for conveying and spraying mortar or plaster. LMP35/30 wall plaster machine for sale has compact structure reliable operation, low failure rate, convenient cleaning, easy maintenance and high pumping pressure etc advantages, so it has widely been using for mortar spraying, pumping and grouting in tunnel excavation and maintenance mine engineering, constructing dams, bridges and foundation treatment etc. projects.
LMP35/30 wall plaster machine also has been using for mortar and putty pumping and spraying civil buildings.
Application
LMP35/30 wall plaster machine for sale has compact structure, reliable operation, low failure rate, convenient cleaning, easy maintenance and high pumping pressure etc advantages, so it has widely been using for mortar spraying, pumping and grouting in tunnel excavation and maintenance, mine engineering, constructing dams, bridges and foundation treatment etc. projects. The pump also has been using for mortar and putty pumping and spraying civil buildings.
Features
 1. LMP35/30 wall plaster machine is single cylinder single-acting, ball valve, quick clamp connection, operation and cleaning conveniently;
 2. Adopt special design rubber parts to connect to the feeding and back port, easy to disassemble;
 3. Vbelt and gear transmission, high efficiency, low failure rate;
 4. The special design of the working valve chamber ensures the mortar flow easily, small resistance, no deposition;
 5. The screen adopts rubber spring with cone bolt installation, convenient disassembly;
 6. The mixing shaft in the hopper is directly linked to the piston rod, thus this shaft is synchronously moved with the said piston rod effectively prevent mortar precipitation;
 7. LMP35/30 wall plaster machine equipped with special mortar nozzle, making spraying operation more smoothly, continuously and reducing the rebound effectively.

Product Details
Back port
Hopper for wall plaster machine
Inside of electric cabinet
Outside of electric cabinet
Pressure gage
Sucking port
Technical Parameters
 Item Technical data
Working Pressure 0~30bar
Output 35L/min
Reciprocate 100 times/minute
Stroke'travel 75mm×85mm
Maximum material diameter(EPS Particle) 6mm
Material consistency ≥60mm
Hopper volume 140L
Main Driving Motor Y2-114m-44w
Horizonta transport distance 80m
Vertical delivery distance 30m
 Dimens on(L×W×H) 1940895960mm
Weight 385kg
