LHS0117 Small hydroseeding machine
Small hydroseeding machine is mainly used in slope ecological management, mine regreening, road, high-speed rail, slope greening restoration, mine quarry geological environment management, high and steep rock slope greening and other projects, as well as waterfront bank slope and reservoir area fading provide complete solutions with ecological construction technology, ecological environment restoration in disturbed areas of water conservancy and hydropower projects, etc.
LHS0117
17kw, gasoline engine, air cooled
Liquid capacity: 1200L(317Gallon)
3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance
0-110rpm
2600x1340x1515mm
Introduction
Product Details
Technical data
Cases
Inquiry
Description

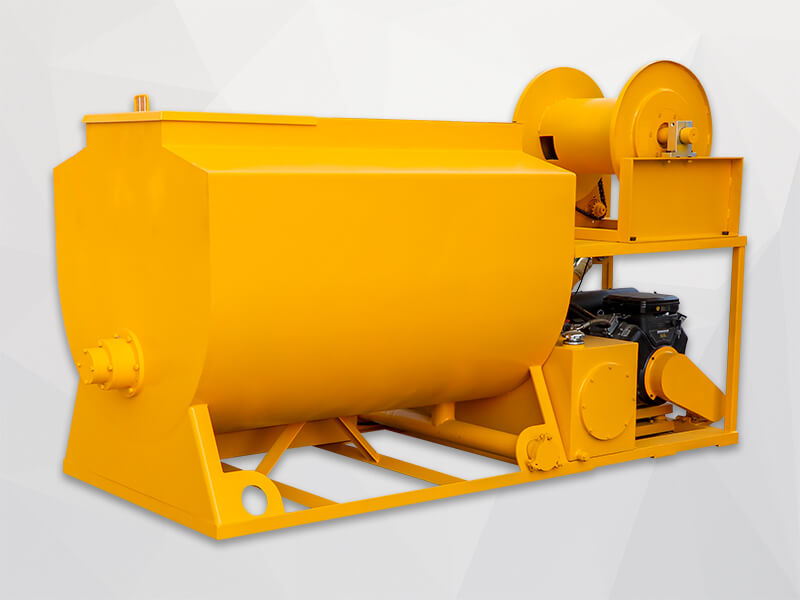

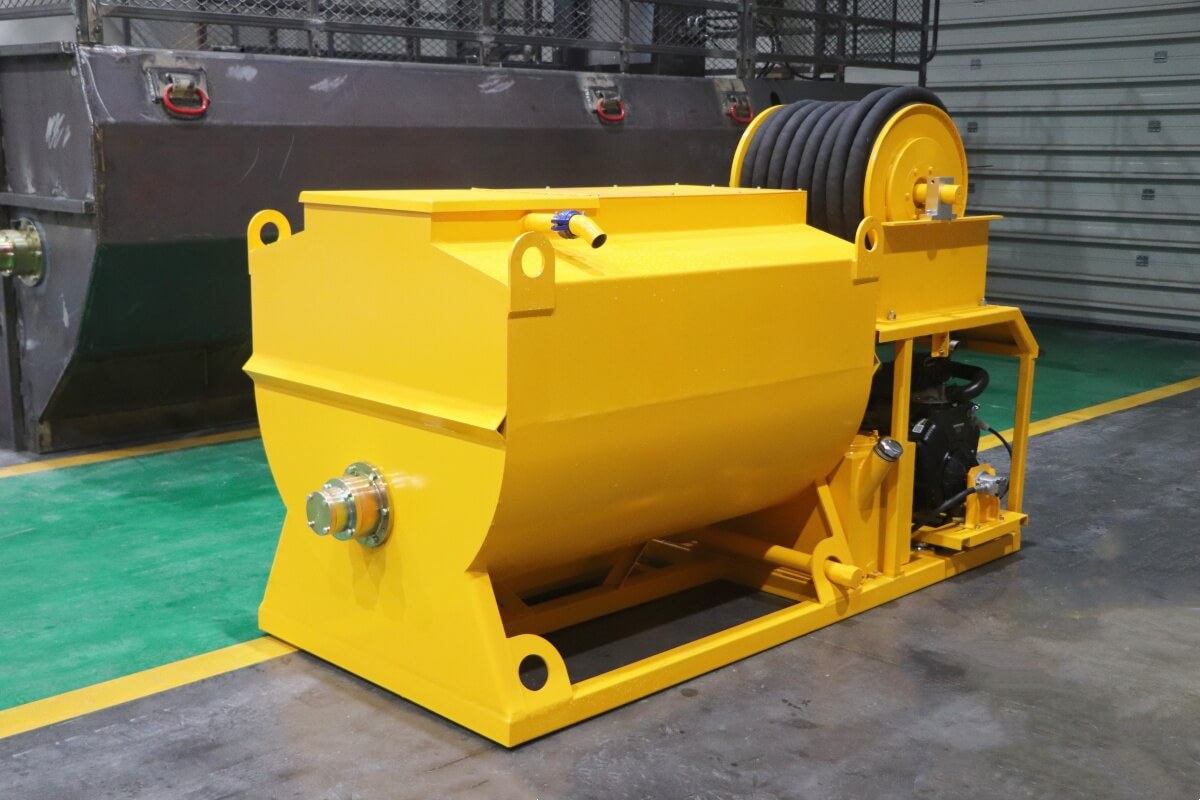

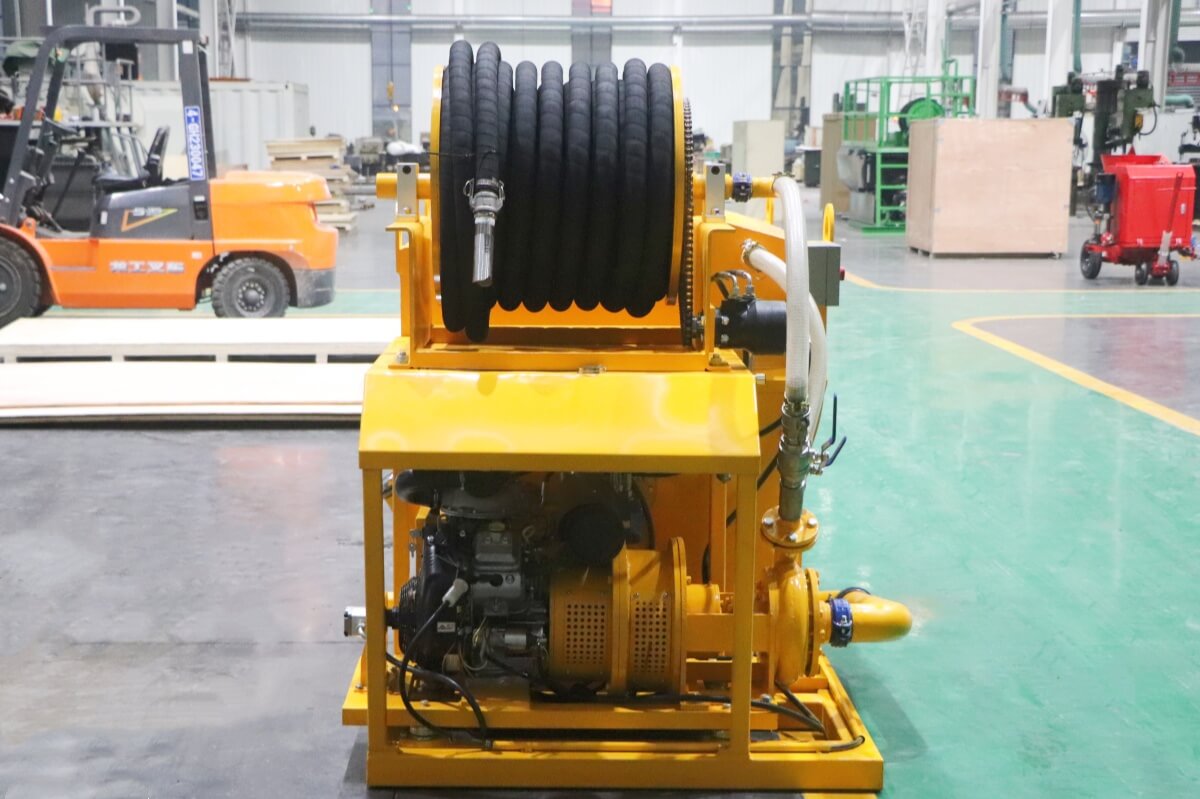

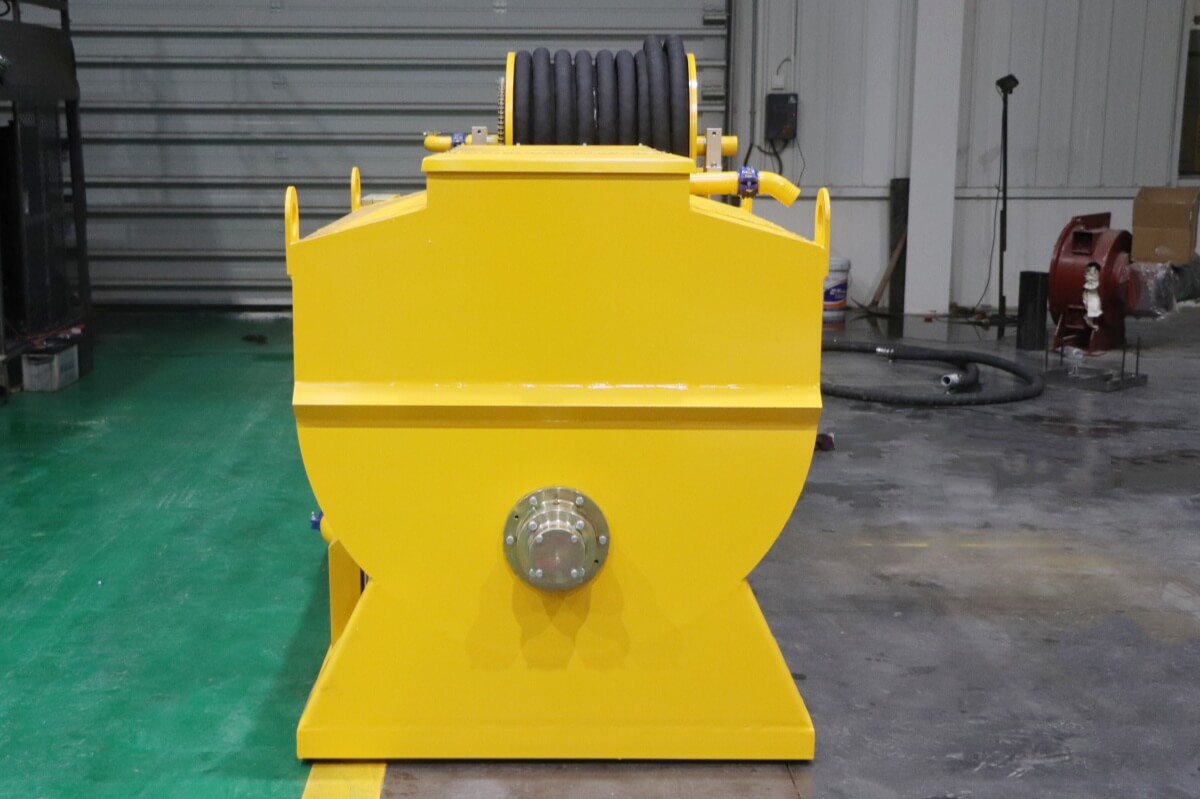

LHS0117 Hydroseeding machine is a small hydroseeder, its tank volume is only 1200L (317Gallon), and the power adopts an air-cooled, 17kw Briggs & Stratton gasoline engine. Small hydroseeding machine is mainly used for small hydroseeding and greening projects such as professional quality seeding, fiber mulching, and much more.  It is one ideal entry-level hydroseeder loaded with features that come standard with every unit.

hydroseeder structure diagram

LHS0117 Small hydroseeding machine uses a quick connector to connect the tank and the pump, and is equipped with a slag discharge port, which can easily dredge the pipeline and spray. The whole hydroseeding machine has good maneuverability, is operated by a gasoline engine, has complete supporting facilities, and is safe and convenient to operate.

small hydroseeding machine factory

We are a manufacturer and exporter of hydroseeder. We are constantly improving and innovating our hydroseeder. We have a professional hydroseeder R&D team with rich experience in production, manufacturing and sales. Our customers are located in more than 200 countries and regions around the world. If you want to know more about small hydroseeding machine, please email or visit the factory. We look forward to your arrival, email address: sales1@leadcrete.com.
Application
LHS0117 Small hydroseeding machine can be used everywhere: parks, houses, cemeteries, sports fields, golf courses, offices, apartment complexes, etc.

Small hydroseeding machine cases

A hydroseeding machine is professional equipment used in slope greening. Through this hydroseeder equipment, the soil substrate, greening grass seeds, water retaining agent, adhesive, fertilizer, etc. are mixed with water in the mixing tank of the sprayer to form a gel-like slurry. The mud pump sprays it on the slope. Because the slurry contains water-retaining materials, bonding materials, and various nutrients, it ensures the water and other sources of nutrients needed for plant growth and effectively prevents rainwater from damaging the sprayed materials, so plants can grow healthily and rapidly.

The hydroseeding machine is suitable for greening spraying in places where it is difficult for plants to grow, such as rocks, hard soil, sandy soil, barren land, acidic soil, arid areas, and coastal dams. Today, hydroseeding machines are widely used in projects such as high-speed railway slope greening, mine regreening, ecological restoration, and desert control. It can be used not only for spraying rice fields, lawns, trees and flowers, crop seeds, etc., but also for daily care and soil improvement such as irrigation, fertilization, and pesticide spraying.1. Durable, 1200L (320gallon) capacity steel tank
2. 17kw Briggs & Stratton gasoline engine, air-cooled, low fuel consumption, easy operation and easy maintenance, reducing use and work costs
3. Using especially designed centrifugal pump: 3''x1.5'', capacity15m/h, it handles the thickest of slurries with ease, can spray viscous material from the nozzle at high speed
4. With hydraulic or electric hose reel with a 30m rubber hose
5. Hydraulically-driven and reversible mechanical agitator, agitator with helical paddle orientation and liquid recirculation, ensures that the mixed solution is in a fully suspended and completely uniform state during the spraying process, and can evenly spray the mixed raw materials at one time
6. The equipment is powerful, spraying distance of up to 26m from the cannon,
7. Reliable mechanics for long life and easy maintenance
8. Simple control for a one-man operation that is both economical and profitable
9. Beautiful appearance, compact structure, moderate price
Features
1. Durable, 1200L (320gallon) capacity steel tank;
2. 17kw Briggs & Stratton gasoline engine, air-cooled, low fuel consumption, easy operation and easy maintenance, reducing use and work costs;
3. Using especially designed centrifugal pump: 3''x1.5'', capacity15m/h, it handles the thickest of slurries with ease, can spray viscous material from the nozzle at high speed;
4. With hydraulic or electric hose reel with a 30m rubber hose;
5. Hydraulically-driven and reversible mechanical agitator, agitator with helical paddle orientation and liquid recirculation, ensures that the mixed solution is in a fully suspended and completely uniform state during the spraying process, and can evenly spray the mixed raw materials at one time;
6. The equipment is powerful, spraying distance of up to 26m from the cannon;
7. Reliable mechanics for long life and easy maintenance;
8. Simple control for a one-man operation that is both economicaland profitable;
9. Beautiful appearance, compact structure, moderate price.

hydroseeder packing and shipping

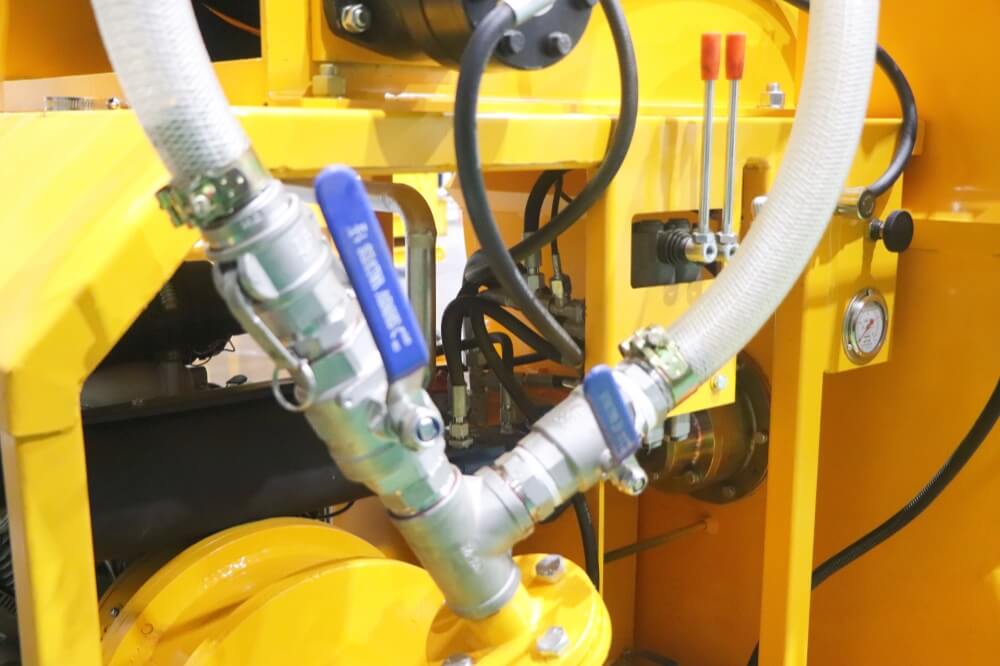

Product Details
320 gallon tank capacity

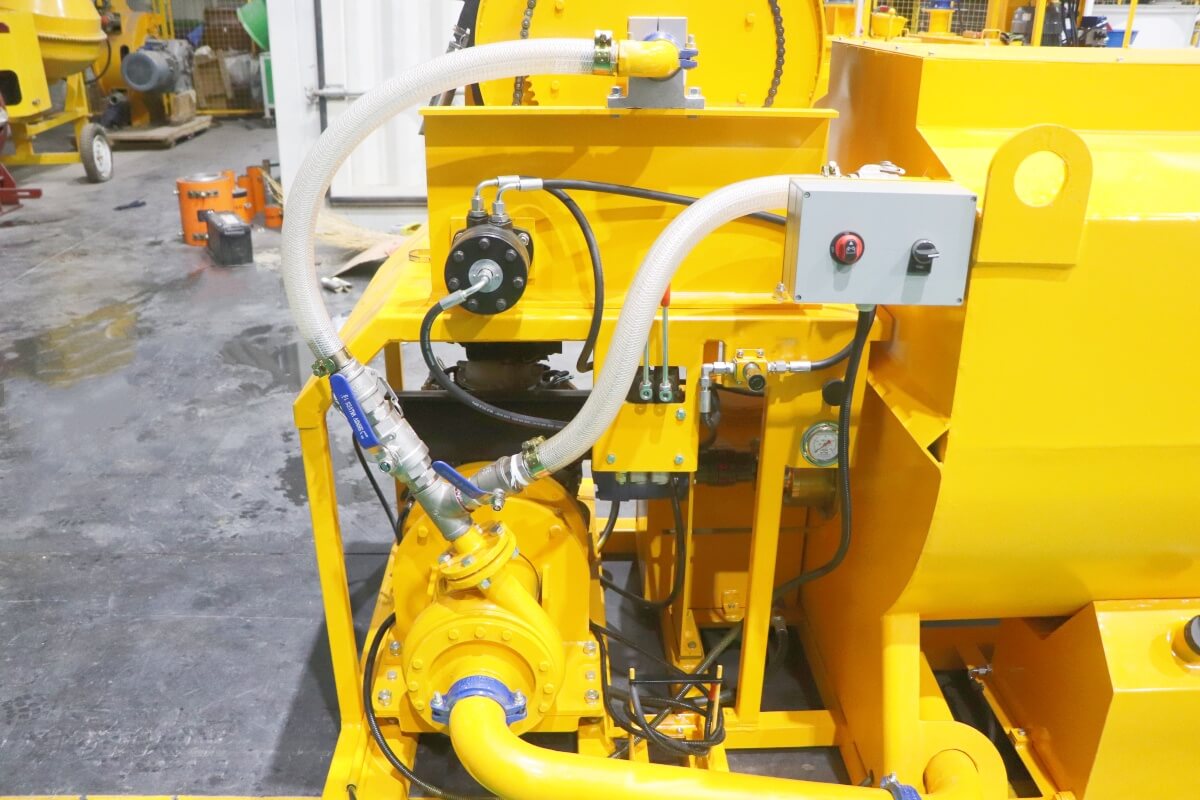

Centrifugal pump
Fuel tank
Gasoline engine

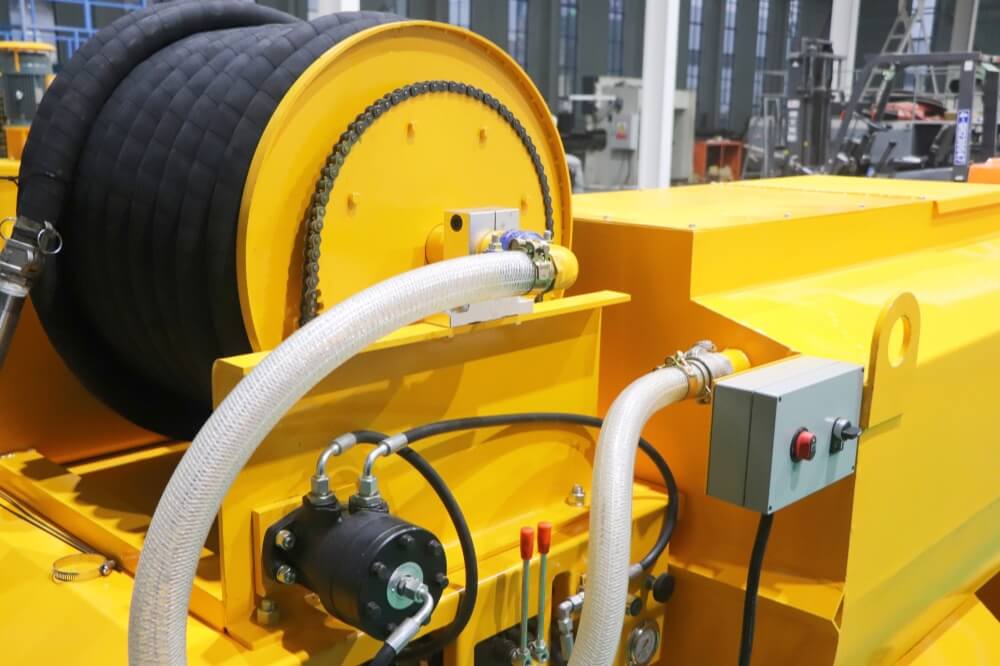

Hydraulic hose reel
Hydraulic oi tank
Technical Parameters
Technical Data
Model LHS0117 Small hydroseeding machine
Power 17kw Briggs & Stratton gasoline engine, air cooled
Tank size  Liquid capacity: 1200L(317Gallon)
Working capacity: 1000L(264Gallon)
Pump Centrifugal pump:3''x1.5'' (7.5X3.75cm),
15m³/h@5bar, 19mm solid clearance
Agitation Mechanical agitator with helical paddle
orientation and liquid recirculation
Rotating speed of mixer shaft 0-110rpm
Maximum horizontal conveying distance 26m
Spraying guns type Hose gun
Height of fence 1100mm
Dimensions 2600x1340x1515mm
Weight 1320kg
Options Stainless steel material for whole unit
Hose Reel with hose
Remote control unit
Trailer
