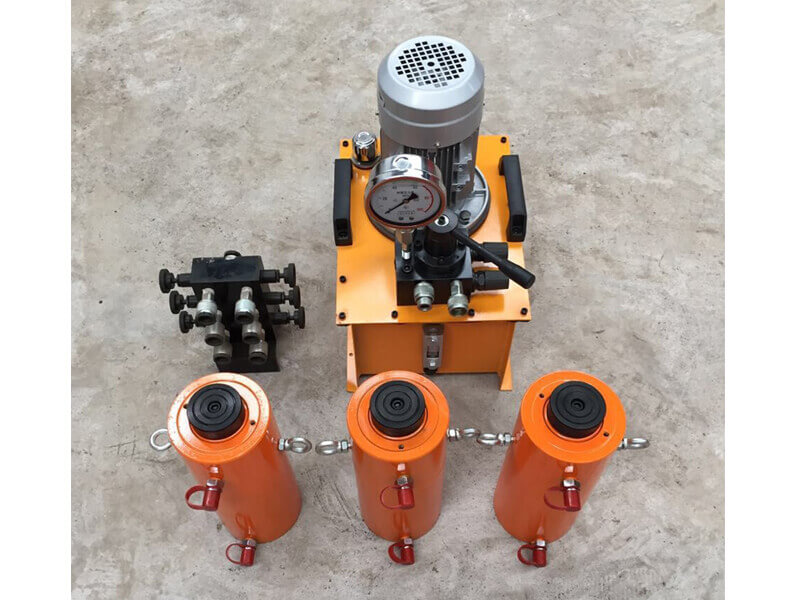

Electric Hydraulic Oil Pump for Tensioning Jack
This electric hydraulic oil pump for tensioning jack is a complete hydraulic power pack, it is made of oil pump, control valve, oil box, motor, oil gauge and etc. Compact structure, powerful function, small size, light weight, and convenient use High working pressure.
ZB Series
63
2
0.55-11
0.4-9
1-15
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
This electric hydraulic oil pump for tensioning jack is a complete hydraulic power pack, it is made of oil pump, control valve, oil box, motor, oil gauge and etc. Compact structure, powerful function, small size, light weight, and convenient use High working pressure.
Application
1. Electric hydraulic oil pump can be installed into some machine for supplying power pack.
2. As a test pressure pump station for kinds of high pressure hydraulic components, high pressure container, high pressure rubber hose.
3. Electric hydraulic oil pump for tensioning jack is matched with other hydraulic tools, it can supply driven for lifting, profiling, bending pipe, straightening, tearing down, cutting, installing, gauging pipe, punching and etc.
2. As a test pressure pump station for kinds of high pressure hydraulic components, high pressure container, high pressure rubber hose.
3. Electric hydraulic oil pump for tensioning jack is matched with other hydraulic tools, it can supply driven for lifting, profiling, bending pipe, straightening, tearing down, cutting, installing, gauging pipe, punching and etc.
Features
1) Electric hydraulic oil pump is a small dimension, lightweight, convenient usage, high working pressure.
2) Holding function: at the condition that outer oil-way is no reveal, stop the pump for holding 5 minters, rated pressure reduce less than 5Mpa.
3) Pump station: high-low pressure pump supply oil at the same time when low pressure, it can get the large output flow; low pressure pump automatically unloading back the oil via control valve when high pressure, it can reduce the consumption of the electric motor.
2) Holding function: at the condition that outer oil-way is no reveal, stop the pump for holding 5 minters, rated pressure reduce less than 5Mpa.
3) Pump station: high-low pressure pump supply oil at the same time when low pressure, it can get the large output flow; low pressure pump automatically unloading back the oil via control valve when high pressure, it can reduce the consumption of the electric motor.
Product Details
-
diesel electric pump -
Electromagnetic valve remote control electric pump -
gasoline electric oil pump
Technical Parameters
Technical Data
| Model | WorkingPressure Mpa | Low pressure Mpa | High pressure flow L/min | Low pressure flow L/min | Power Kw | Voltage V | Oil capacity L |
| ZB-0.55 | 63 | 2 | 0.4 | 1 | 0.55 | 380/220 | 7 |
| ZB-0.75 | 63 | 2 | 0.7 | 2.4 | 0.75 | 380/220 | 16 |
| ZB-1.5 | 63 | 2 | 1 | 6 | 1.5 | 380/220 | 26 |
| ZB-2.2 | 63 | 2 | 2.4 | 6 | 2.2 | 380/220 | 42 |
| ZB-3 | 63 | 2 | 3 | 6 | 3 | 380/220 | 42 |
| ZB-4 | 63 | 2 | 4 | 9 | 4 | 380/220 | 60 |
| ZB-5.5 | 63 | 2 | 6 | 9 | 5.5 | 380/220 | 90 |
| ZB-7.5 | 63 | 2 | 7 | 9 | 7.5 | 380/220 | 120 |
| ZB-11 | 63 | 2 | 9 | 15 | 11 | 380/220 | 150 |
