Double Acting Hydraulic Cylinder for Sale
Double acting hydraulic cylinder for sale is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, double acting hydraulic cylinder for sale is designed a safe protect pressurizer, it can protect emergent overpressure, especial construction can protect jack.
100T
180mm
100mm
140mm
58-130kg
63MPA
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
Double acting hydraulic cylinder for sale is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, double acting hydraulic cylinder for sale is designed a safe protect pressurizer, it can protect emergent overpressure, especial construction can protect jack.
Double acting hydraulic cylinder for sale can bear partial loading is 5% of rated pressure. Double acting hydraulic cylinder for sale is specifically designed for lifting and maintenance applications. It is easy to operate and control, especially in large projects. All model hydraulic jacks are supplied with a tilting saddle to reduce the risk of damage caused by side loading and an integral stop ring for stroke limitation is fitted as standard.
Double acting hydraulic cylinder for sale can bear partial loading is 5% of rated pressure. Double acting hydraulic cylinder for sale is specifically designed for lifting and maintenance applications. It is easy to operate and control, especially in large projects. All model hydraulic jacks are supplied with a tilting saddle to reduce the risk of damage caused by side loading and an integral stop ring for stroke limitation is fitted as standard.
Application
Double acting hydraulic cylinder for sale has been used in many large projects around the world. It has good quality, long life, simple operation, and convenient control. Double acting hydraulic cylinder for sale is mainly used in electric power, construction, lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment, machinery manufacturing, mining, railway bridges, shipbuilding and other industries equipment installation, lifting and handling operation.
Features
Double acting hydraulic cylinder for sale has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
Product Details
-

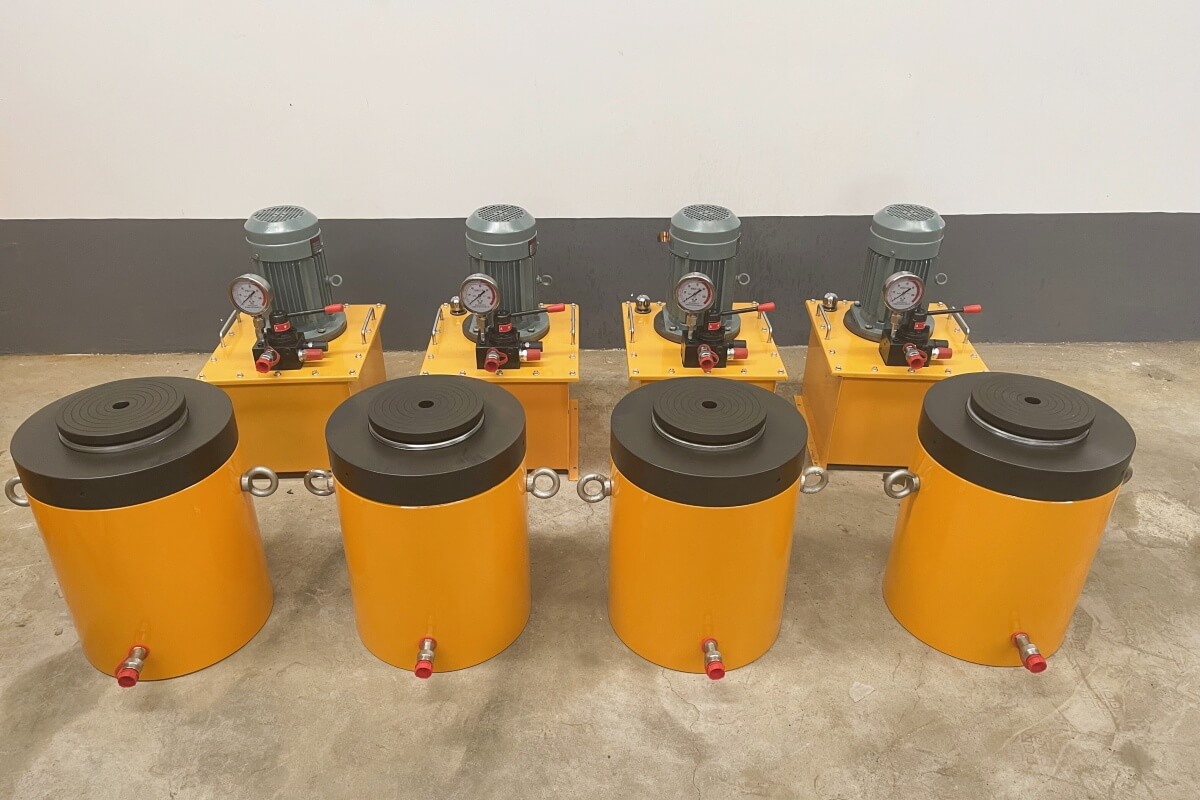

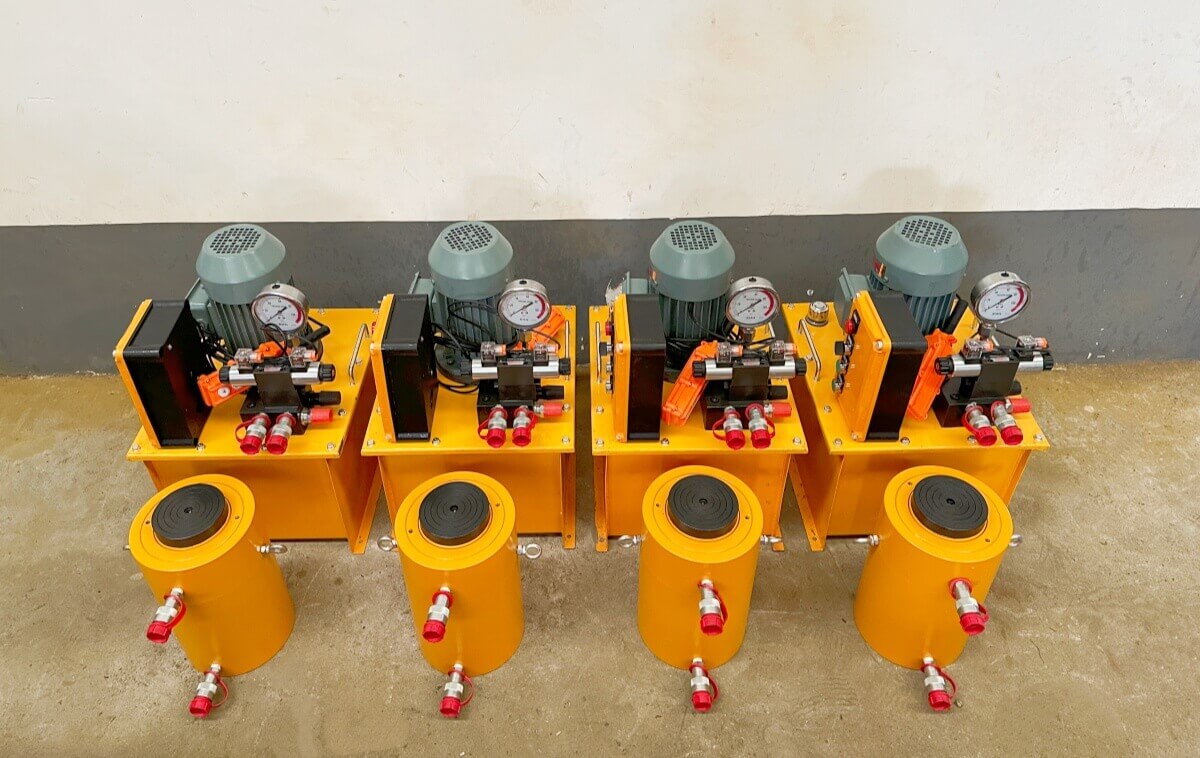

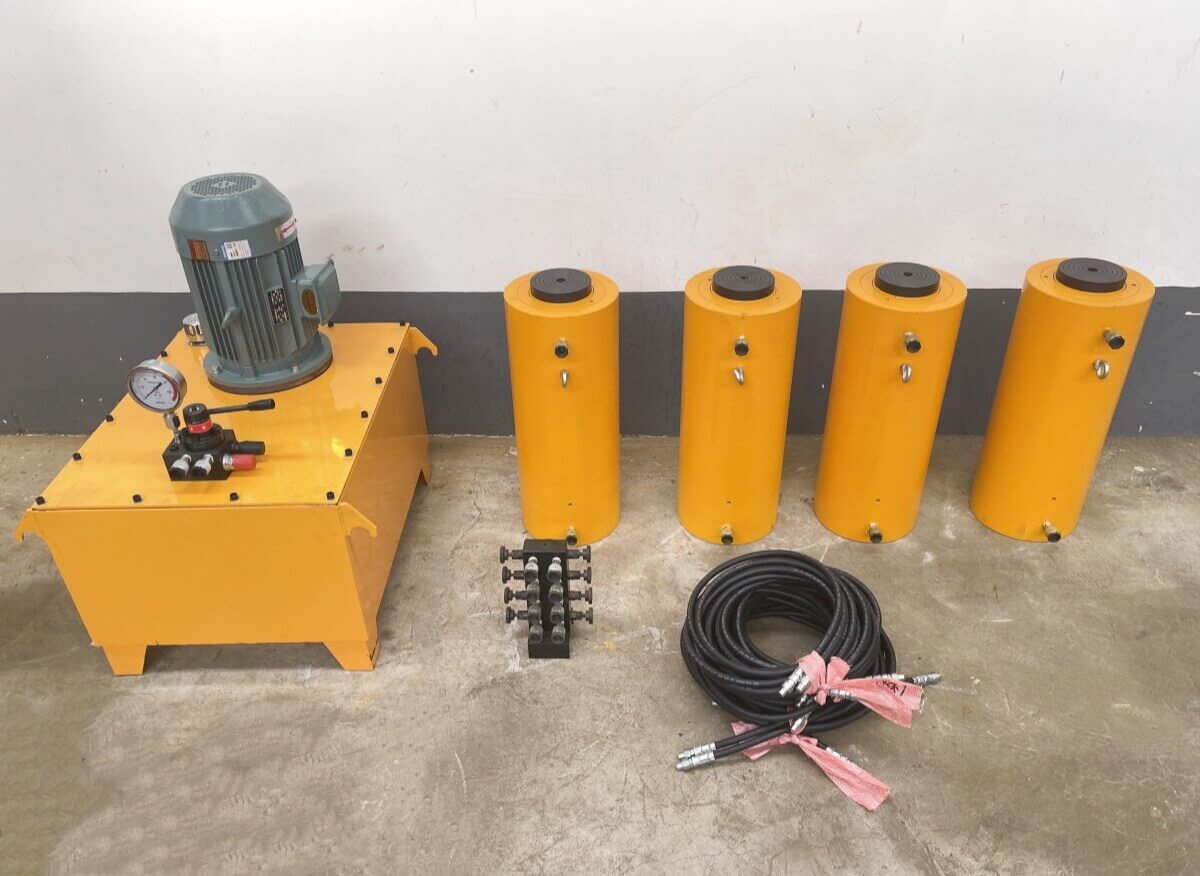

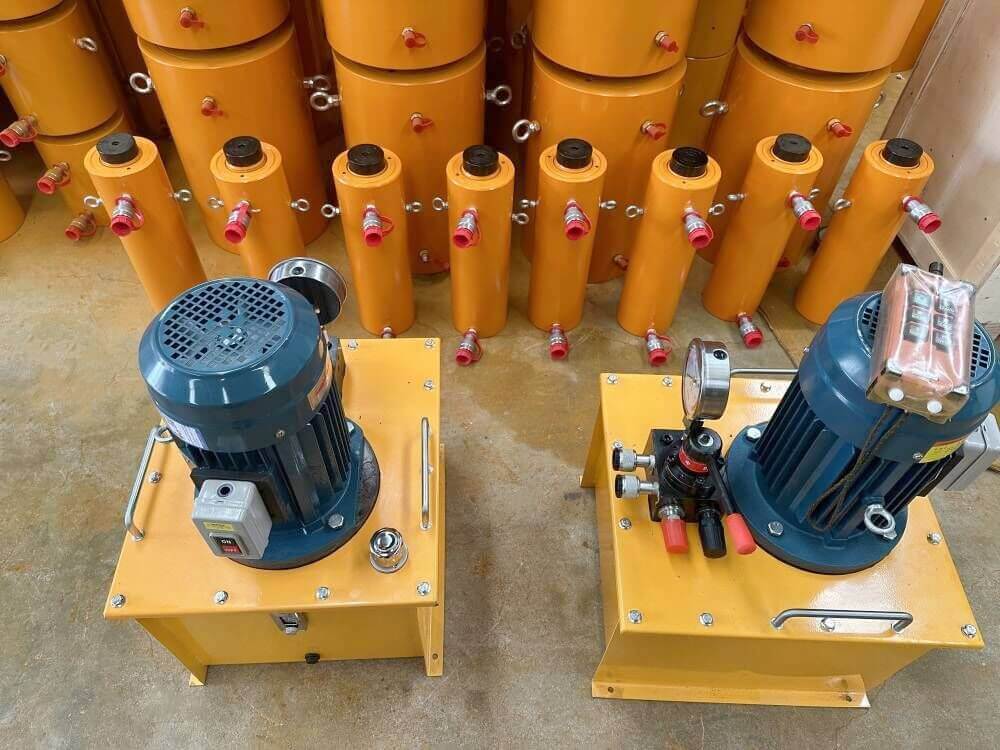

double acting hydraulic jack with electric pump -

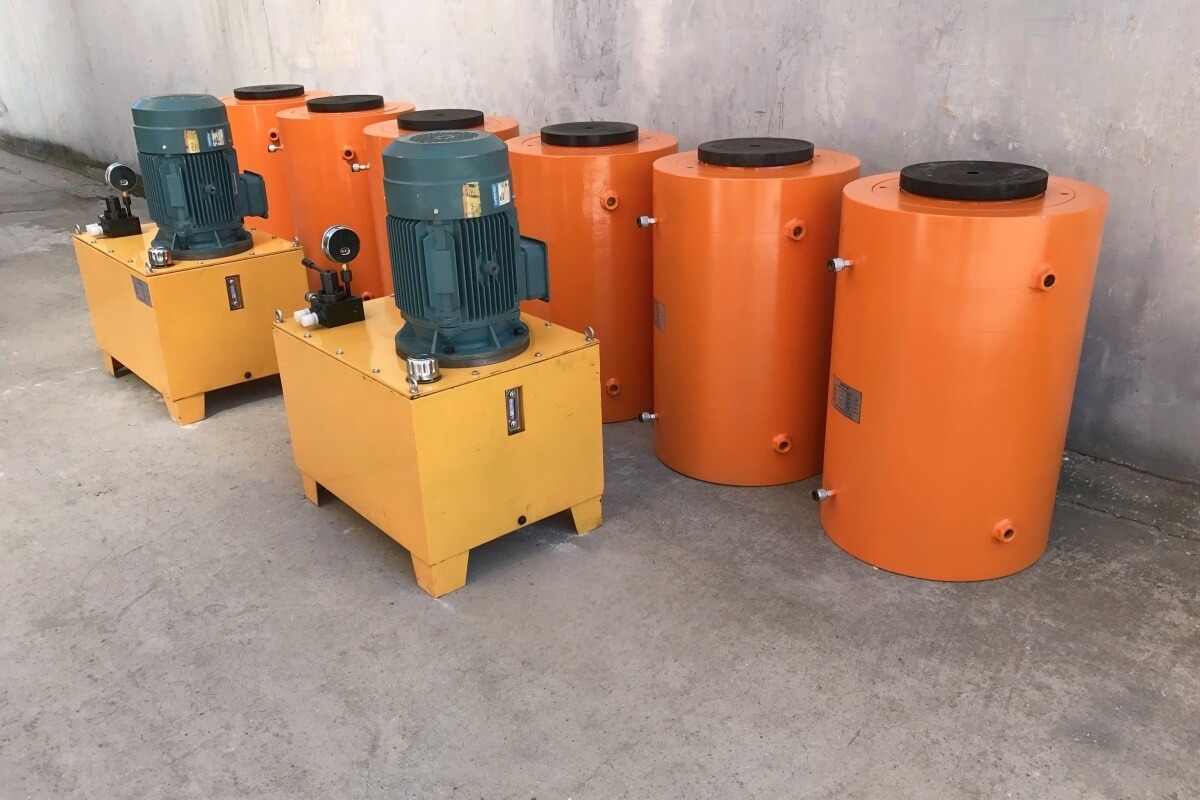

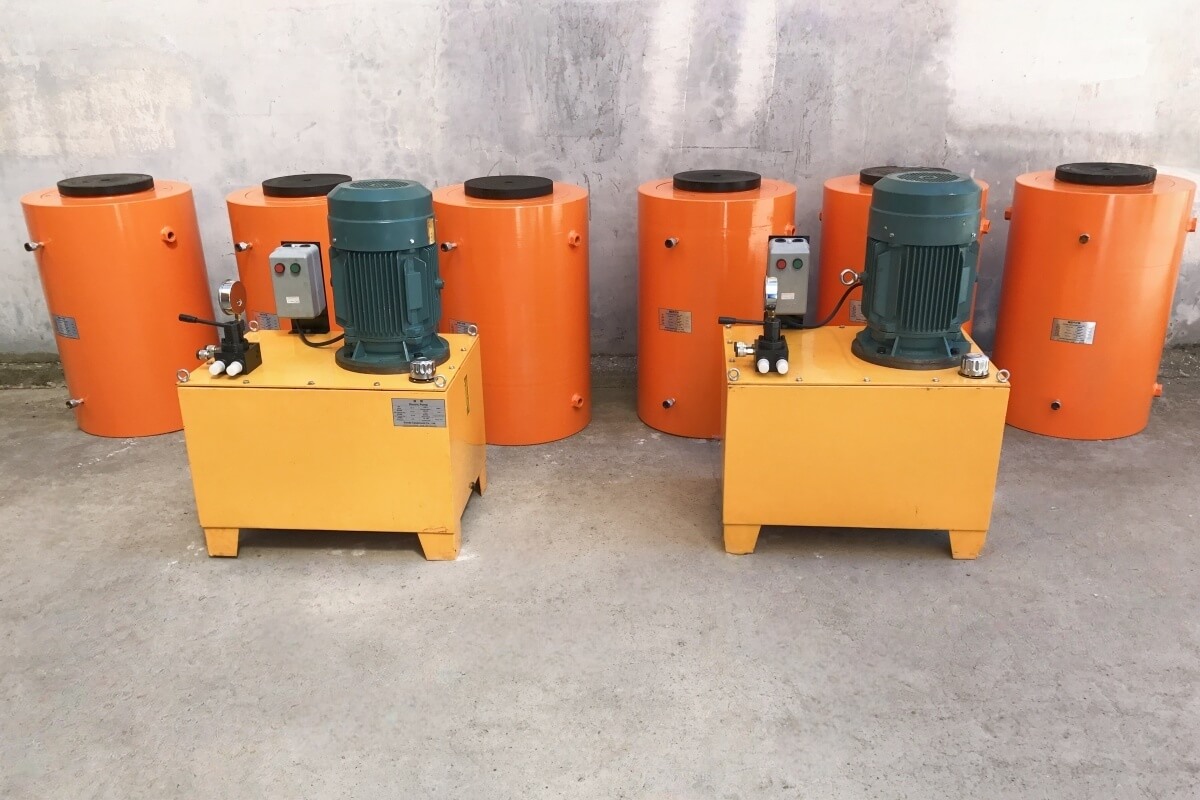

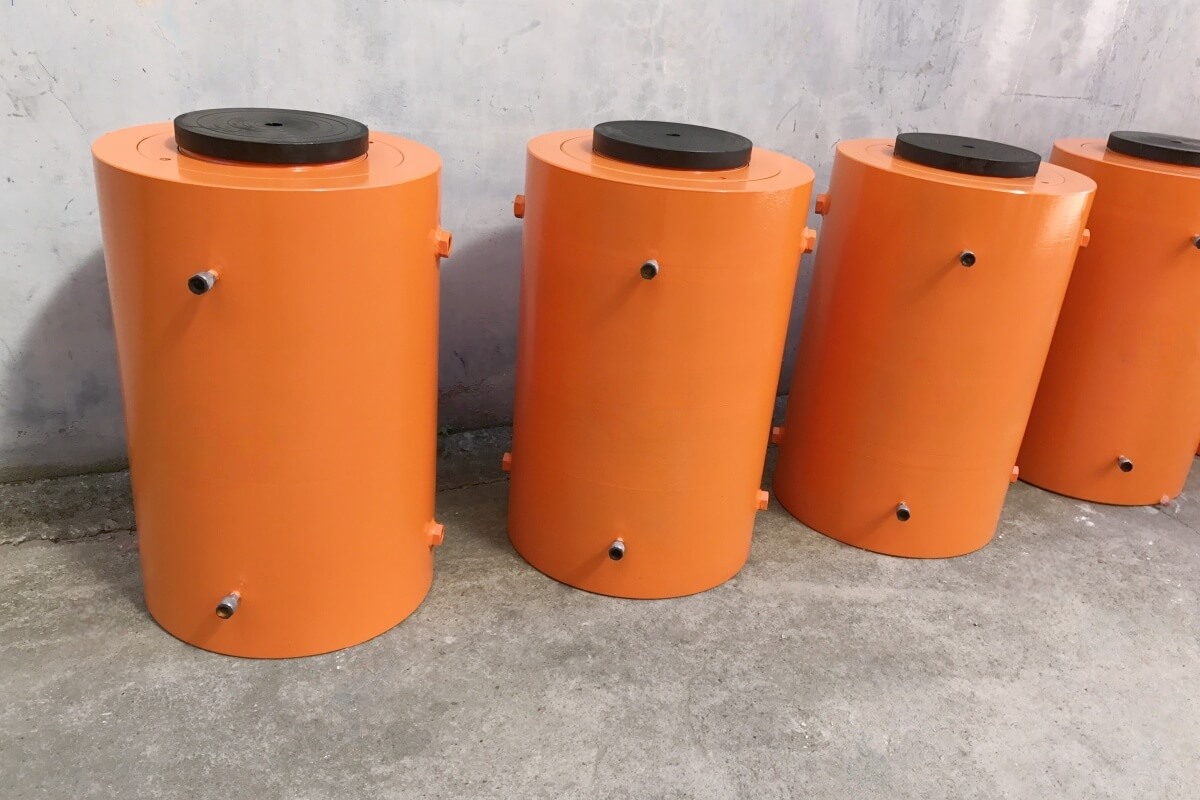

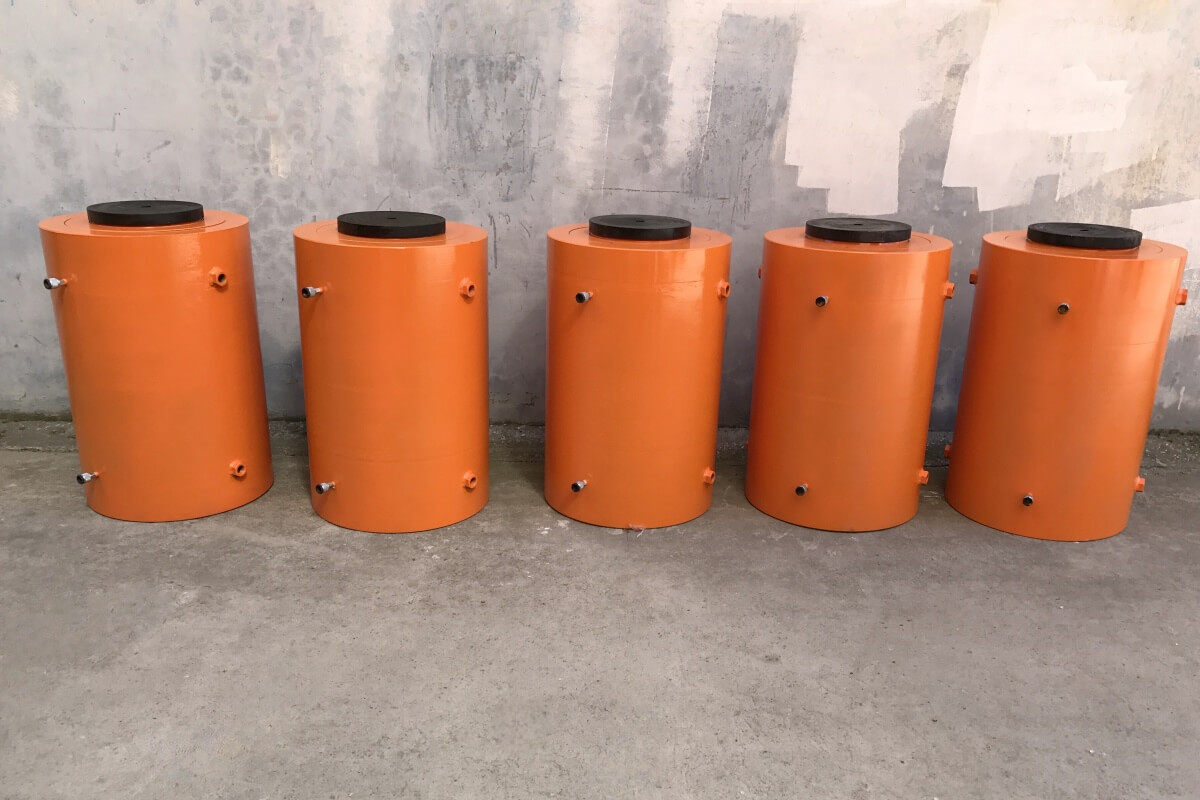

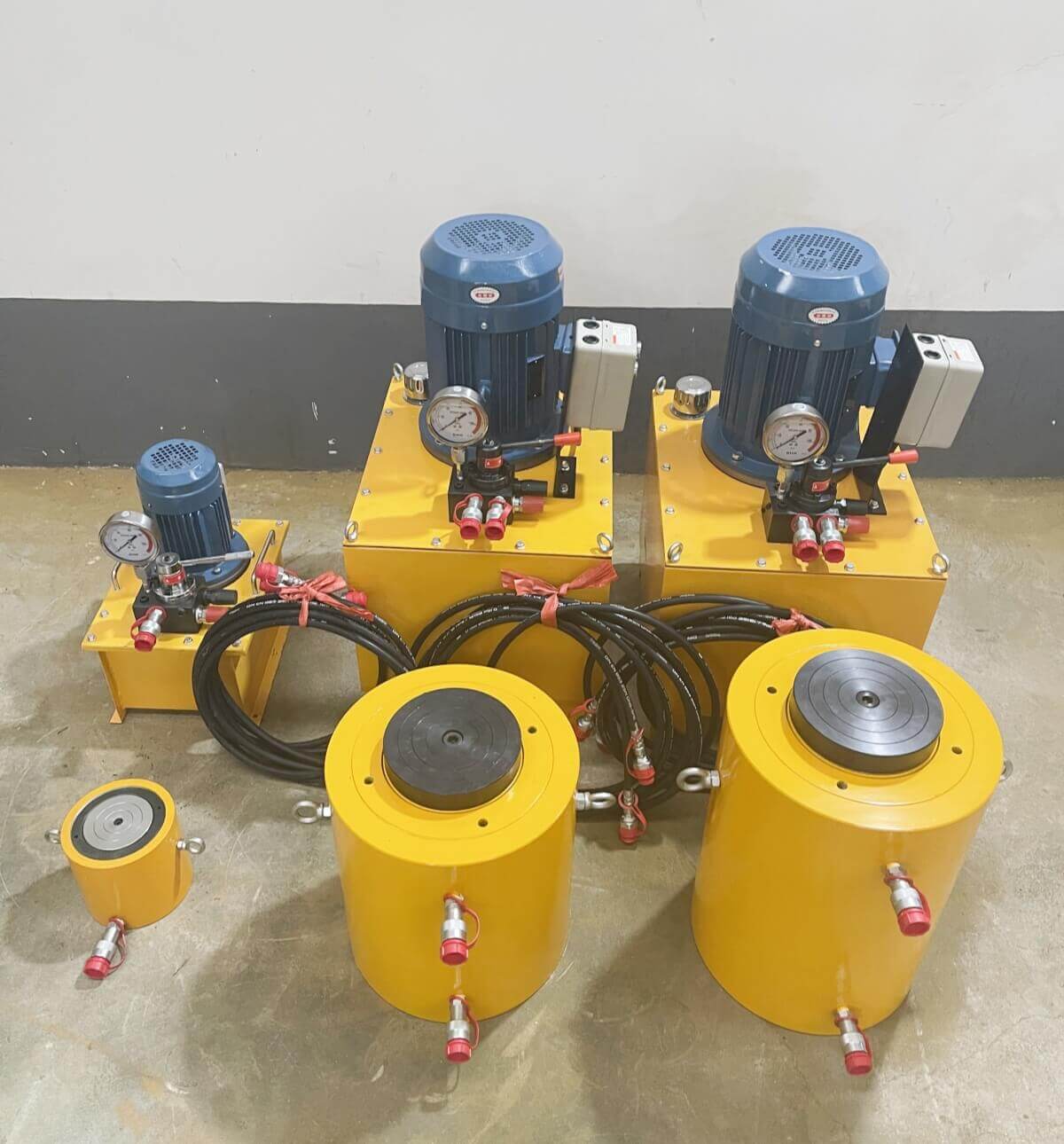

30ton 100ton 200ton 300ton 400ton double atcing hydraulic jack -

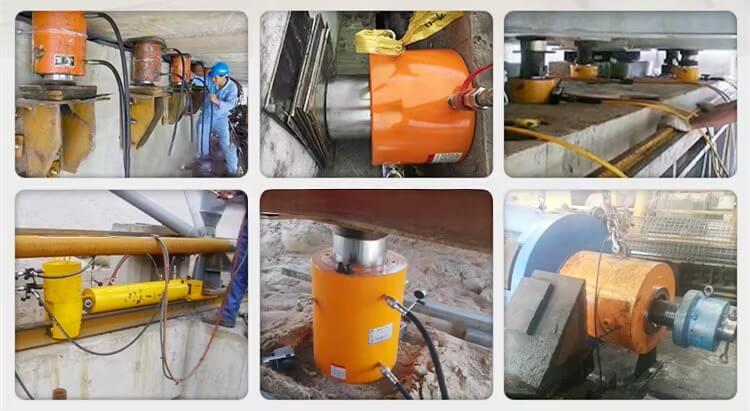

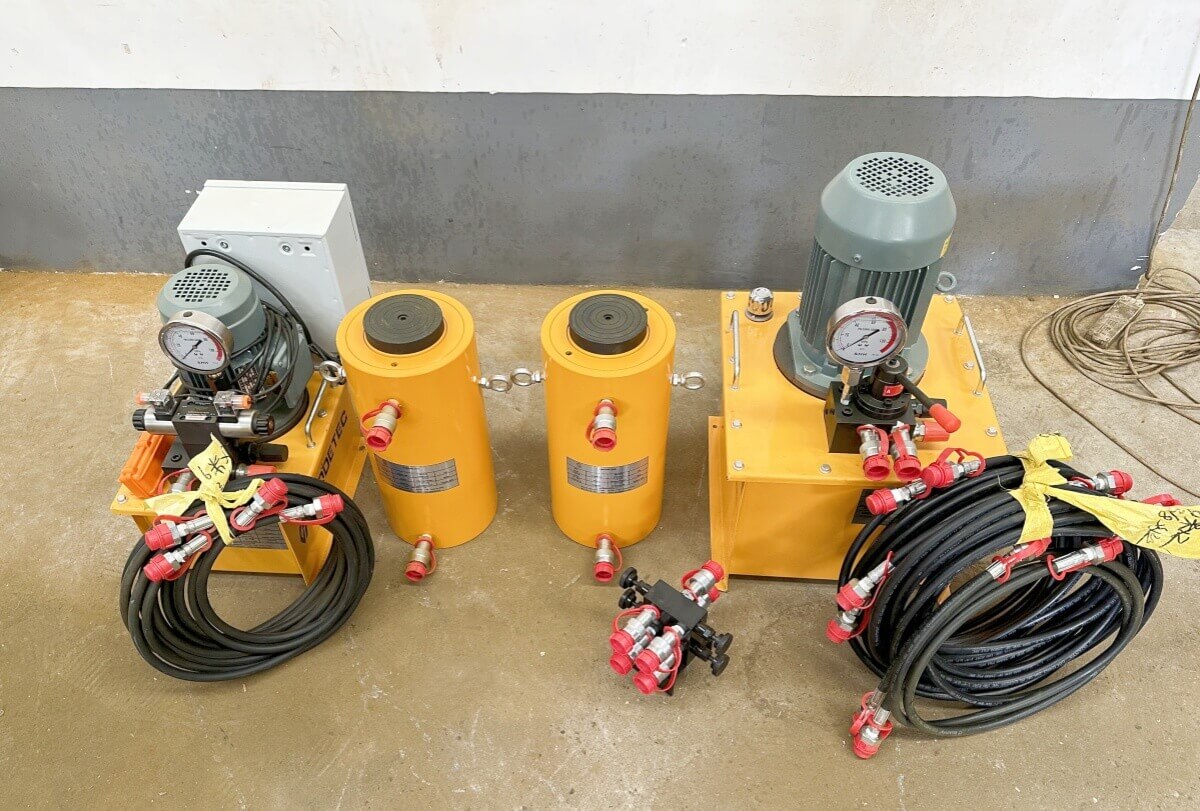

double acting hydraulic jack use for buliding
Technical Parameters
Technical Data
| Model | Tonnage T |
Stroke mm |
height A mm |
Extend height B mm |
Outer diameter of oil cylinder mm |
Dia. of piston mm |
ID of cylinder mm |
Weight kg |
Pressure |
| STQ50-100 | 50 | 100 | 225 | 325 | 127 | 70 | 100 | 35 | 63MPA |
| STQ50-160 | 160 | 285 | 445 | 39 | |||||
| STQ50-200 | 200 | 325 | 525 | 46 | |||||
| STQ50-300 | 300 | 425 | 725 | 48 | |||||
| STQ50-500 | 500 | 625 | 1125 | 63 | |||||
| STQ100-100 | 100 | 100 | 250 | 350 | 180 | 100 | 140 | 58 | 63MPA |
| STQ100-160 | 160 | 310 | 470 | 63 | |||||
| STQ100-200 | 200 | 350 | 550 | 78 | |||||
| STQ100-300 | 300 | 450 | 750 | 96 | |||||
| STQ100-500 | 500 | 650 | 1150 | 130 | |||||
| STQ150-100 | 150 | 100 | 260 | 360 | 219 | 125 | 180 | 58 | 63MPA |
| STQ150-160 | 160 | 320 | 480 | 69 | |||||
| STQ150-200 | 200 | 360 | 560 | 86 | |||||
| STQ150-300 | 300 | 460 | 760 | 103 | |||||
| STQ150-500 | 500 | 660 | 1160 | 255 | |||||
| STQ200-100 | 200 | 100 | 285 | 385 | 240 | 150 | 200 | 96 | 63MPA |
| STQ200-160 | 160 | 345 | 505 | 103 | |||||
| STQ200-200 | 200 | 385 | 585 | 116 | |||||
| STQ200-300 | 300 | 485 | 785 | 161 | |||||
| STQ200-500 | 500 | 685 | 1185 | 221 | |||||
| STQ320-100 | 320 | 100 | 310 | 410 | 330 | 180 | 250 | 196 | 63MPA |
| STQ320-160 | 160 | 370 | 530 | 240 | |||||
| STQ320-200 | 200 | 410 | 610 | 258 | |||||
| STQ320-300 | 300 | 510 | 810 | 311 | |||||
| STQ320-500 | 500 | 710 | 1210 | 456 | |||||
| STQ400-100 | 400 | 100 | 355 | 455 | 380 | 200 | 290 | 198 | 63MPA |
| STQ400-160 | 160 | 415 | 575 | 231 | |||||
| STQ400-200 | 200 | 460 | 660 | 264 | |||||
| STQ400-300 | 300 | 555 | 855 | 367 | |||||
| STQ400-500 | 500 | 755 | 1255 | 456 | |||||
| STQ500-100 | 500 | 100 | 360 | 460 | 430 | 200 | 320 | 323 | 63MPA |
| STQ500-160 | 160 | 420 | 580 | 330 | |||||
| STQ500-200 | 200 | 460 | 660 | 420 | |||||
| STQ500-300 | 300 | 560 | 860 | 581 | |||||
| STQ500-500 | 500 | 760 | 1260 | 599 | |||||
| STQ630-100 | 630 | 100 | 417 | 517 | 500 | 250 | 360 | 560 | 63MPA |
| STQ630-160 | 160 | 477 | 637 | 633 | |||||
| STQ630-200 | 200 | 517 | 717 | 696 | |||||
| STQ630-300 | 300 | 617 | 917 | 898 | |||||
| STQ630-500 | 500 | 817 | 1317 | 1250 | |||||
| STQ800-100 | 800 | 100 | 488 | 588 | 560 | 300 | 400 | 896 | 63MPA |
| STQ800-200 | 200 | 598 | 798 | 1040 | |||||
| STQ800-300 | 300 | 698 | 998 | 1380 | |||||
| STQ800-500 | 500 | 898 | 1398 | 1520 | |||||
| STQ1000-100 | 1000 | 100 | 530 | 630 | 600 | 320 | 450 | 1286 | 63MPA |
| STQ1000-200 | 200 | 630 | 830 | 1332 | |||||
| STQ1000-300 | 300 | 760 | 1060 | 1663 |
