Wedges And Anchor for Prestressed Strand
Wedges and anchor for prestressed strand systems:  1. Wedges and anchor for prestressed strand has high performance with good quality  2. Wedges and anchor for prestressed strand used for railway, bridge highway. buildings  3. Flat or slab anchor systems
LBM15(13)-2
80
52
160
160
Introduction
Product Details
Technical data
Cases
Inquiry
Description
Wedges and anchor for prestressed strand systems:
 1. Wedges and anchor for prestressed strand has high performance with good quality
 2. Wedges and anchor for prestressed strand used for railway, bridge highway. buildings
 3. Flat or slab anchor systems
Application
Wedges and anchor for prestressed strand have been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway, and highway construction, buildings and channel construction, etc.

Features
1. LBM15(13)  flat stressing-end anchorage is used for the strand with a diameter of 15.2-12.7, 12.7-12.9.
2. If the prestressing strand is collocated in plate-type, you can arrange the prestressing strand into a flat redial pattern by flat anchorage to avoiding to increasing the thickness of plating.
3. Anchor for prestressed strand includes flat anchor plate, working wedge, flat bearing plate, and uses the QYC front-end fixed jack to stressing.
5. Wedges and anchors for prestressed strand can work automatically, have a high anchor efficiency and very good performance. They are easy to use, safe and reliable. They are the crystallization of large quantity of experiences and scientific research.
6. They are used to anchor prestressing strands from 12.7mm and 15.2mm, 15.24mm.varies from 1 to 22 and we can produce according to your specific requirements.
7. The strength of the extension of a single can be up to 2000 Mpa.
Product Details
steel berang plate anchor used
two parts wedges
flat anchor plate
Technical Parameters
Technical Data
Model flat anchor plate flat bellows flat base plate flat spiral spring
A B C D E F L G H N T
LBM15(13)-2 80 46 52 22 160 70 140 160 100 5 45
LBM15(13)-3 115 46 65 22 180 70 150 180 100 5 45
LBM15(13)-4 150 46 74 22 220 80 210 220 100 5 45
LBM15(13)-5 185 46 90 22 260 80 270 260 100 5 45
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
Name:
Country:
Email:*
Phone:
Products you need:
Company:
Inquiry:*
Related products

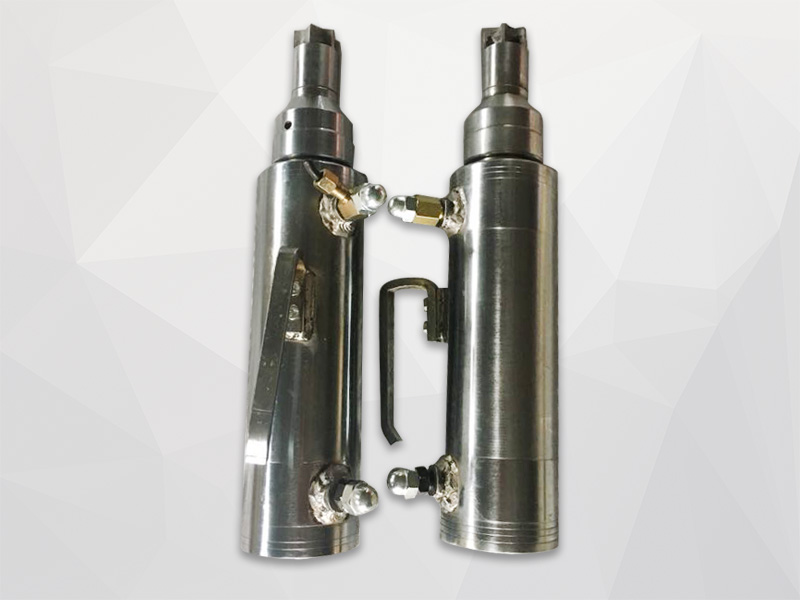

mono strand jack with manual pump
