LGP250/350/100PI-D Grout plant for mining
LGP250/350/100PI-D grout plant for mining is a hydraulic driven combination of 250L grout mixer, 350L grout agitator and hydraulic system of grout pump, it is specially design for continuous cement mixing and grouting in ground and underground engineering. LGP250/350/100PI-D compact grout plant for mining can fast mix water, cement, sand, bentonite, filler, clay power, silicates and other additives, then the mixed slurry can be stored into a 350 liters agitator, thus the mixing work can make sure mix cement slurry evenly and more quickly.
LGP250/350/100PI-D
250L
4m3/h
1200L/min
0.5 to 1
350L
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LGP250/350/100PI-D grout plant for mining is a hydraulic driven combination of 250L grout mixer, 350L grout agitator and hydraulic system of grout pump, it is specially design for continuous cement mixing and grouting in ground and underground engineering. LGP250/350/100PI-D compact grout plant for mining can fast mix water, cement, sand, bentonite, filler, clay power, silicates and other additives, then the mixed slurry can be stored into a 350 liters agitator, thus the mixing work can make sure mix cement slurry evenly and more quickly.
LGP250/350/100PI-D Grout plant for sale could be matched with other machines, and doing the micro-tunneling grouting , mining grouting, dam grouting, borehole grouting, drill grouting etc. projects. Grouting unit and a system has delivered some grout plant to the world famous tunnel builders, and help do the most significant ground anchoring, soil nailing, micro-piling, and post-tensioning grouting jobs.
Application
LGP250/350/100PI-D grout plant can be used for continuous cement mixing and grouting in mining, dam, borehole, drill, micro-tunneling, tunnel lining, soil, earth foundation stabilization, waterproofing, underwater foundation, bridge decks, deep well casing, slope line grouting, etc. projects.

Grout mixing plant for mining
Features
1. LGP250/350/100PI-D grout plant for mining for sale with CE, ISO certification.
2. Less spare parts ensure low maintenance grout plant for mining costs.
3. Grouting pressure, displacement is stepless adjustable.
4. Backfill grouting plant with continuous output with small pulse.
5. High speed vortex mixer ensures mix quickly and evenly.
6. Compact grout plant for mining is simple structure, light weight, easy maintenance.
7. China grout plant for dam switch by using squeeze handle, it is safe, reliable and easy to operate.
8. The motor of borehole grouting plant has an overload protection function. Hydraulic system with oil temperature overheating protection.
9. China drill grout plant with high-speed, low-speed mode, by using ball valve to achieve two-function switch.
Product Details

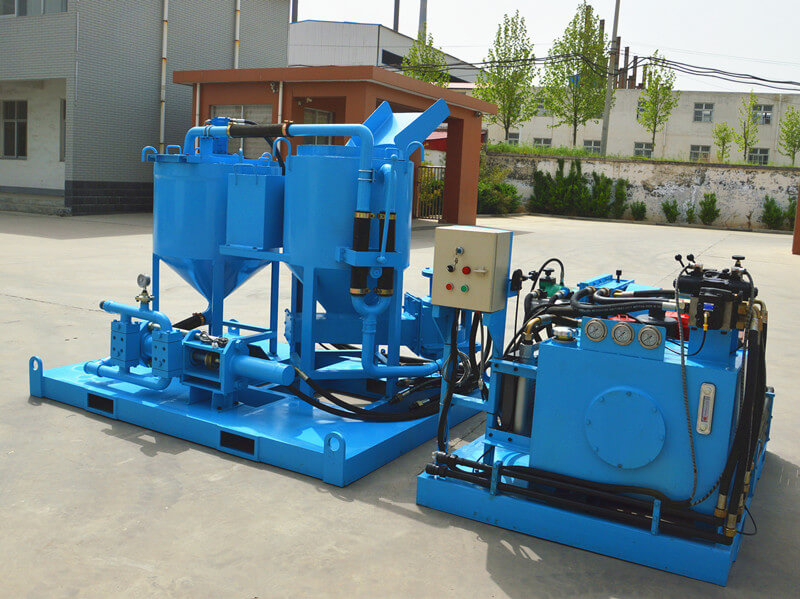

Details of grout plant unit
Details of grout plant unit
Diesel engine grout plant for mining
Grout plant factory
Hydraulic system of grout pump
Grout mixer and agitator
Technical Parameters
Technical Data
Description Data
Grout plant for mining type LGP250/350/100PI-D
Mixer volume 250L
Mixer production(w/c ratio=1) 4m3/h
Circulation capacity 1200L/min
Suitable W/C ratio 0.5to1
Agitator volume 350L
Agitator speed 36rpm
Water tank 60L
Grout pump type LGH90
Grout pump output(Max) 100L/min
Grout pump work pressure 10Mpa
Overall dimension 3300x1650×1500mm
Weight 1400kgs
 Note: LGP250/350/100PI-D Grout plant unit for mining is a combination of mixer, agitator and grout pump in one base frame.
