LGP400/700/100PL-D Cement grout plant for sale
For the LGP400/700/100PL-D Cement grout plant for sale, it with high shear high speed grout mixer, its volume is 400L, agitator volume is 700L, grout pressure is 0-50Bar, grout flow is 0-100L/min, the mixer is one vortex mixer of this cement grout unit could make sure mix cement slurry evenly and more quickly.
LGP400/700/100PL-D
25kw/36HP
2200r/min
2900*1900*1750mm
1900kg
400L
Introduction
Product Details
Technical data
Cases
Inquiry
Description
For the LGP400/700/100PL-D Cement grout plant for sale, it with high shear high speed grout mixer, its volume is 400L, agitator volume is 700L, grout pressure is 0-50Bar, grout flow is 0-100L/min, the mixer is one vortex mixer of this cement grout unit could make sure mix cement slurry evenly and more quickly. This compact cement gout plant includes a grout pump, the grout pump type is hydraulic plunger pump.

China cement grout plant
colloidal grout plant manufacturer
colloidal grout plant factory
colloidal grout plant supplier

LGP400/700/100PL-D China cement grout plant is used for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

cement grout pump with mixer

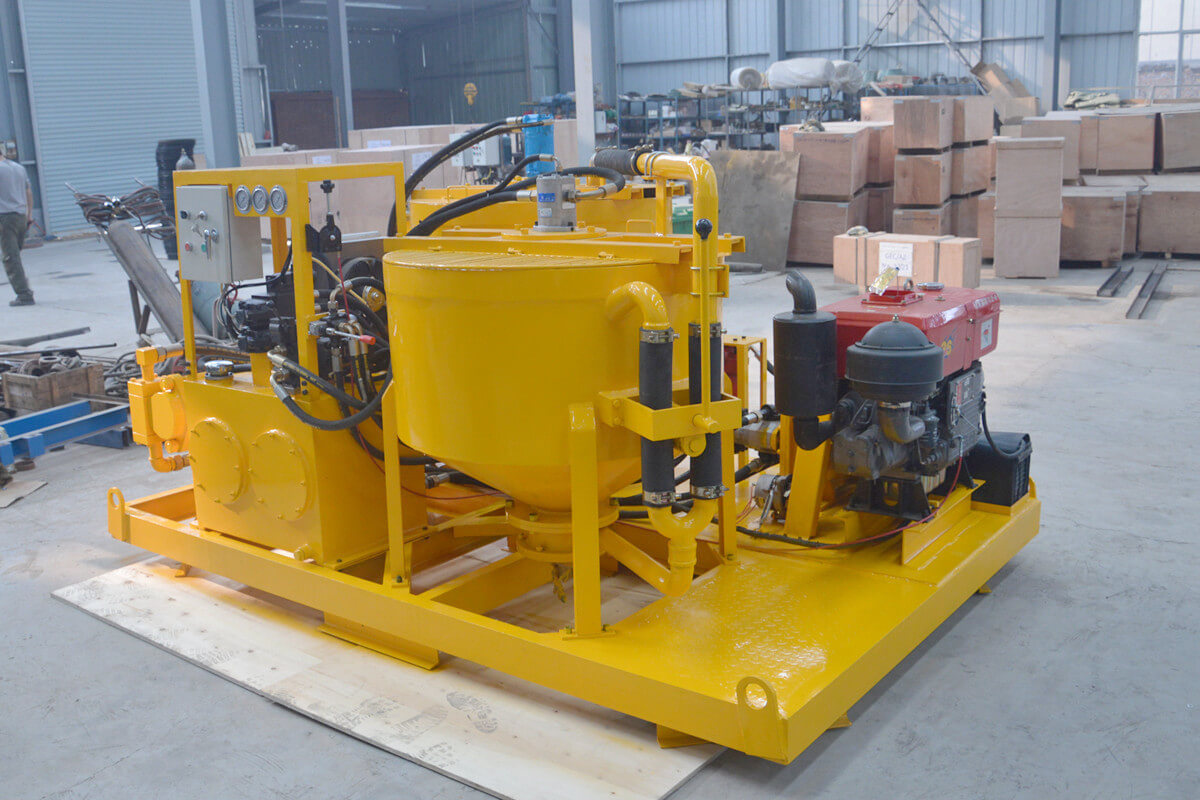

cement grout station

In order to recommend one suitable cement grout plant or mortar grout plant and quote the best price more quickly, please help us to confirm the following points:
1. What is project you will use the cement grout plant for, dam grouting, tunnel grouting or other?
2. What is the pressure and output do you need?
3. Would you like the grout plant with electric motor or diesel engine? If want the cement grout plant wok with electric motor, also please confirm the voltage in the worksite. Is it 3 phase, 380v, 50HZ OK?
If you don't know the answers, it is also no problem. Leadcrete also has its own technical team and with research and development ability, please send your requirements on the cement grout plant, we will offer solution according to your demands to you, then amend, confirm. So any question or any demands on the China cement grout plant, please contact us without any hesitation.

compact cement grout plant for sale
diesel cement bentonite grout plant
Application
For the LGP400/700/100PL-D Cement grout plant / station is used in the following applications:
1. Cement grout plant for building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting.
2. Cement grout plant for engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement.
3. Cement grout plant for mine application - roadway reinforcement, backfill, waterproof grouting.
4. Cement grout plant for civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting.

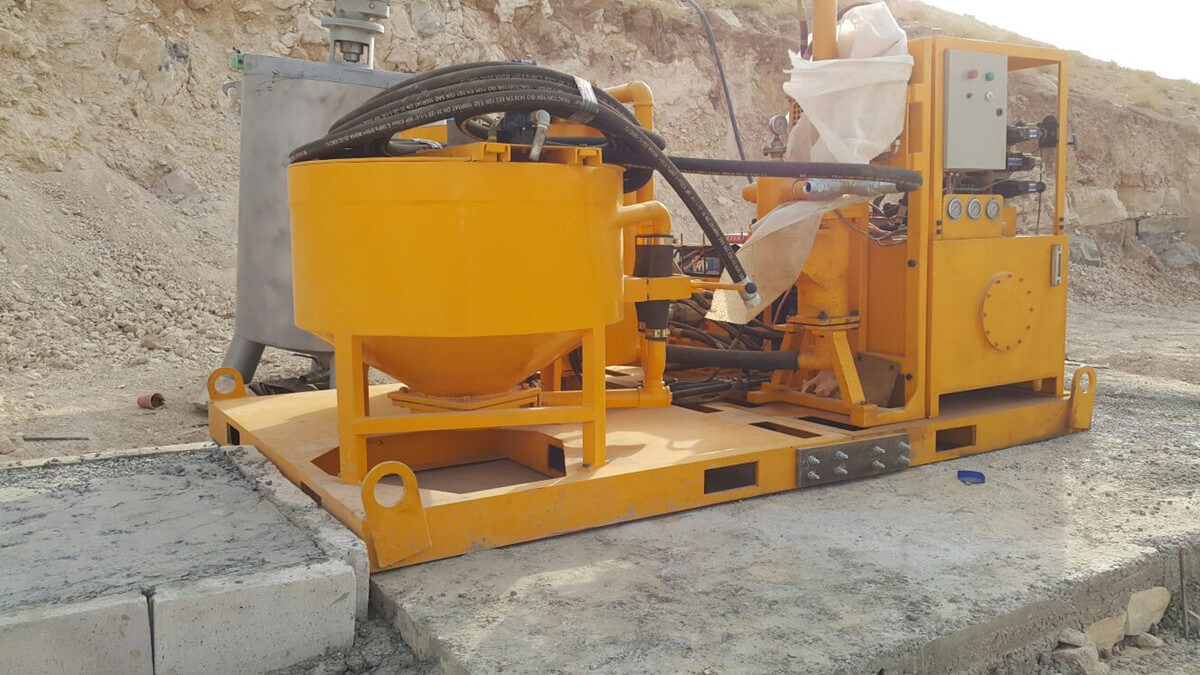

cement grout plant for dam projects
UAE worksite cement grouting plant
Features
The LGP400/700/100PL-D cement grout plant with following features:
1. LGP400/700/100PL-D Cement grout plant is combination of mixer, agitator and hydraulic plunger grout pump in one base frame.
2. The cement grout plant has low pressure and high pressure, stepless speed regulation.
3. Yuken relief valve and directional valve for hydraulic system of grout pump.
4. The plant is full hydraulic drive, diesel engine.
5. Operation and maintenance are simple.
6. China cement for sale with ISO, CE certificate.
7. Quickly convenient cleaning valve chamber.
8. Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations.
9. Less spare parts ensure low maintenance costs.
10. China grout mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate.
11. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.
Product Details
Accelerator of grout plant
Cement grout plant details
Control valve of cement grout pump
electrol control box inner structure
high speed grout mixer inner
Pump speed control valve
Technical Parameters
Technical Data
China cement grout plant model LGP400/700/100PL-D Cement grout plant
Diesel engine 25kw/36HP
Rotating speed of engine 2200r/min
Dimensions 2900*1900*1750mm
Weight 1900kg
Mixer
Capacity 400L
W/C ratio 0.5-1
Rated Rev. 1500rpm
Agitator
Volume 700L
Rated Rev. 36rpm
Pump
Type Hydraulic plunger pump
Pressure and Output (low pressure) 25 Bar, 100L/min
Pressure and Output (high pressure) 50 Bar, 40L/min
