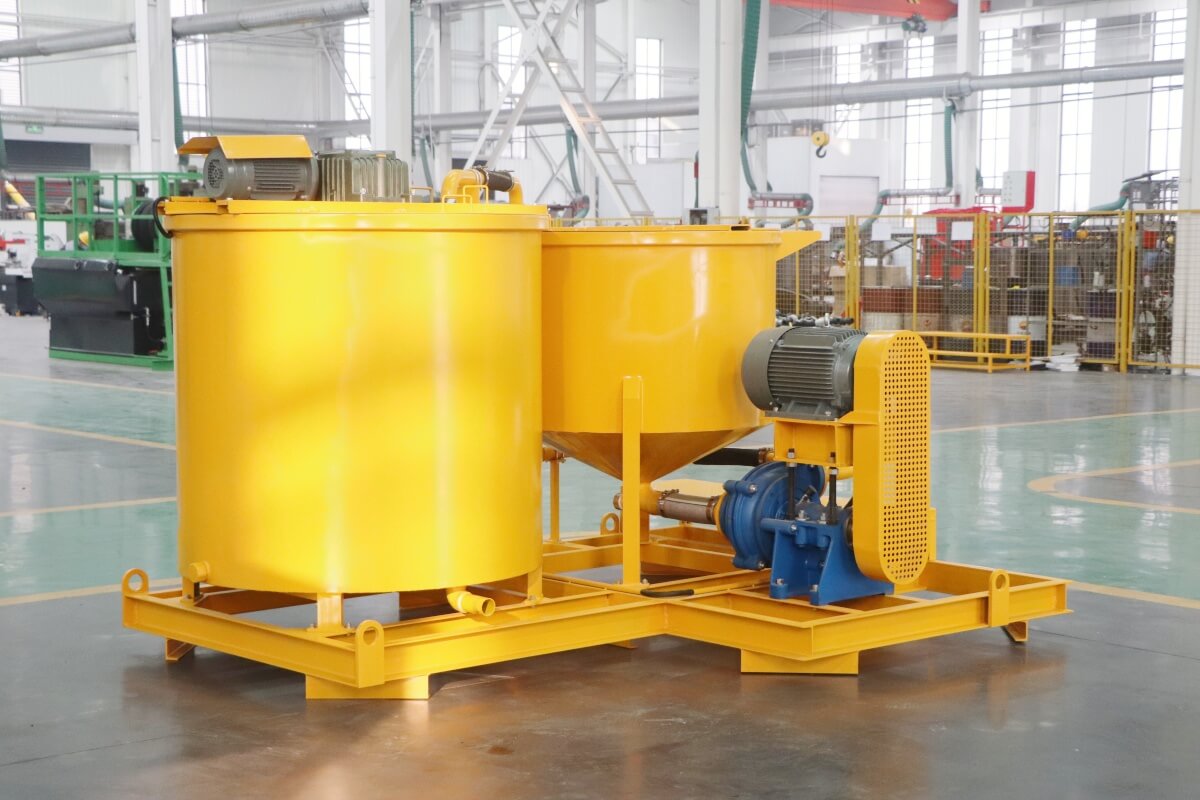

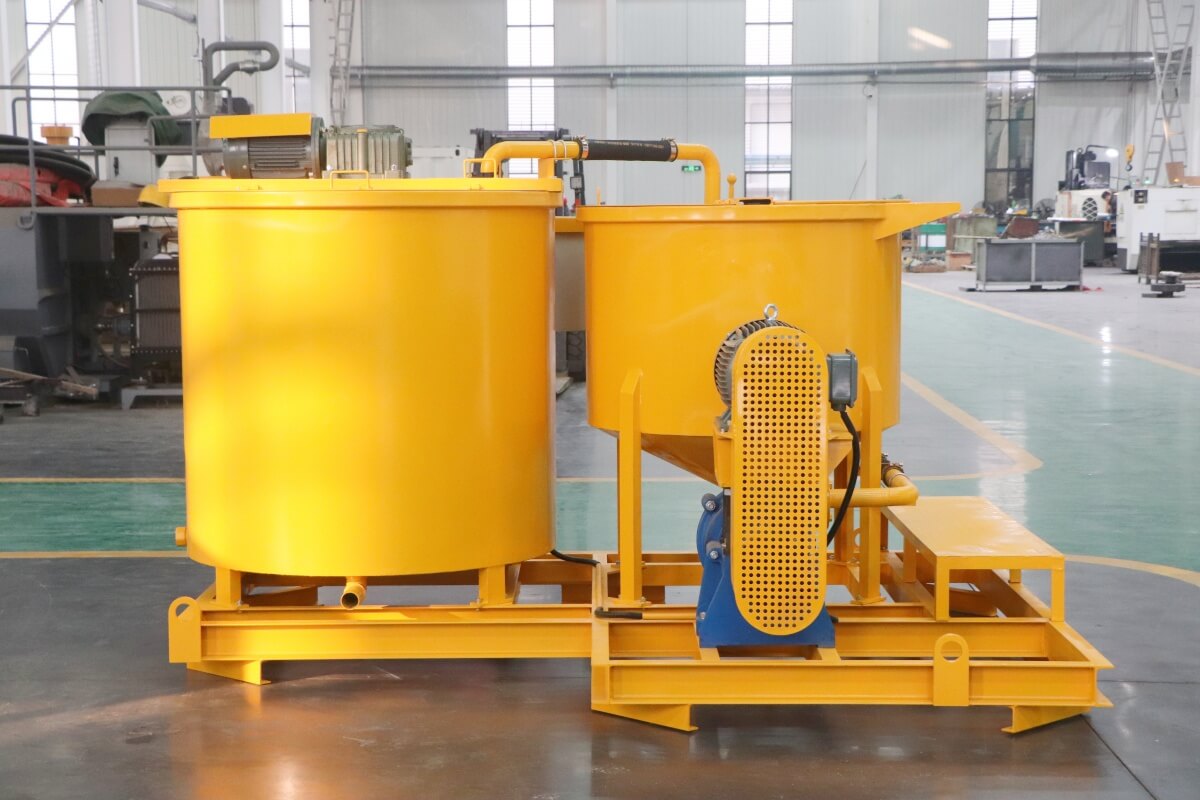

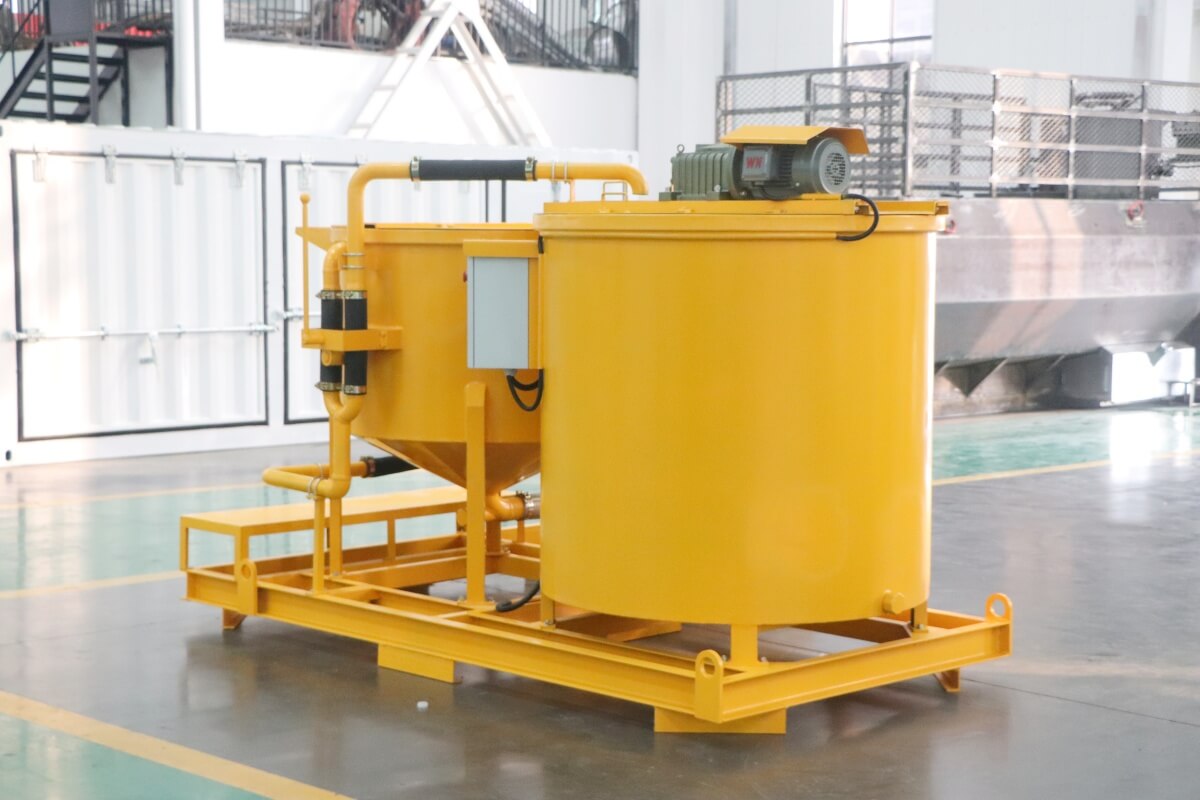

LMA750-1500E Grout mixer machine for sale
LMA750-1500E Grout mixer machine for sale is a combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. We are grout mixer machine supplier, grout mixer machine manufacturer for 20 years, if you want to get grout mixer machine price, grout mixer unit price, you can contact us directly.
300 liter
≥0.5:1
3 min
1200L/min
1500rpm
300kgs
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMA750-1500E Grout mixer machine for sale is a combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time. We are grout mixer machine supplier, grout mixer machine manufacturer for 20 years, if you want to get grout mixer machine price, grout mixer unit price, you can contact us directly.

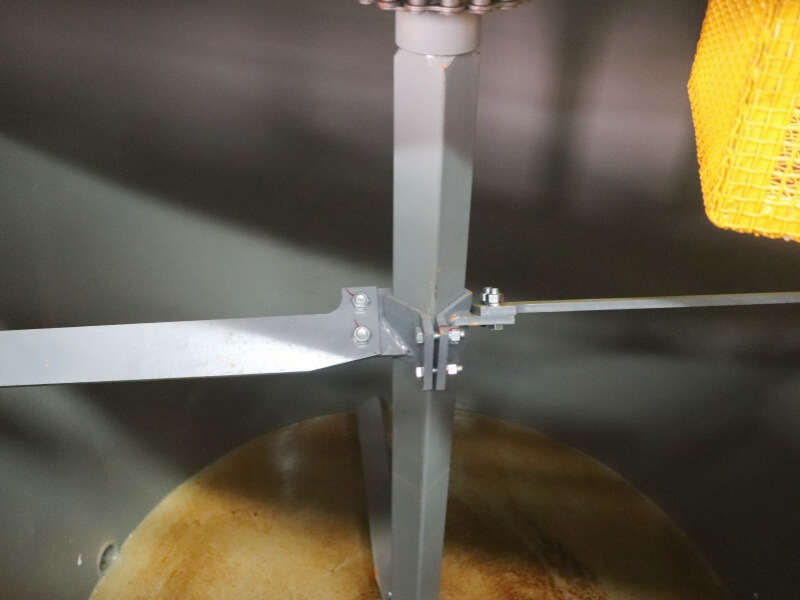

After mixing, this mixtures are pumped into the agitator tank with slow speed mixing paddles by the above same pump.
When the mixtures in mixer tank are completely pumped out, to shift the specially design handle valve to continue to mix the next cycle slurry.
Application
LMA750-1500E grout mixer machine is specially design for continuous cement mixing and grouting in ground/underground engineering.
Features
1. High speed mixing and high efficiency to achieve continuous mixing.
2. Grout mixer machine is simple structure, easy assemble.
3. Less spare parts, low maintenance.
4. Mixer and agitator switch by using squeeze handle, great reliability and simple to operate.
Product Details
Grout mixer machine manufacturer

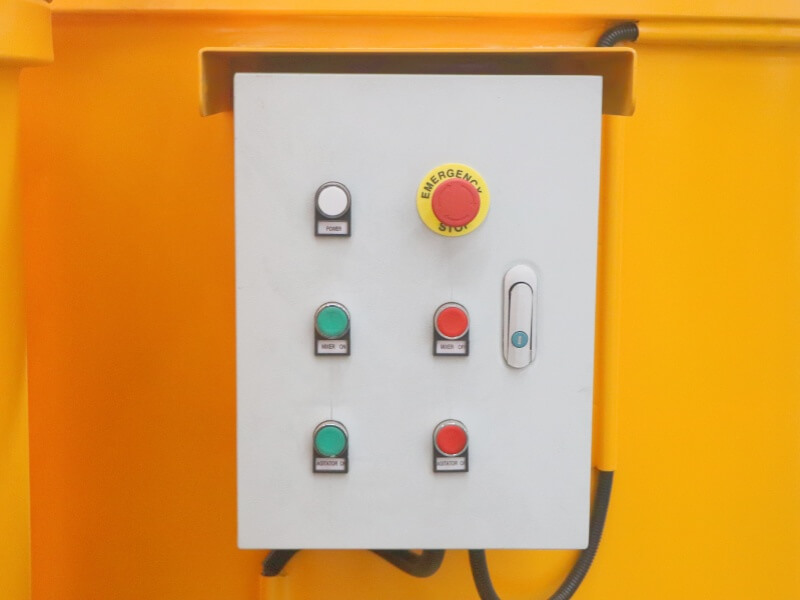

Waterproof button with stainless steel frame electric box

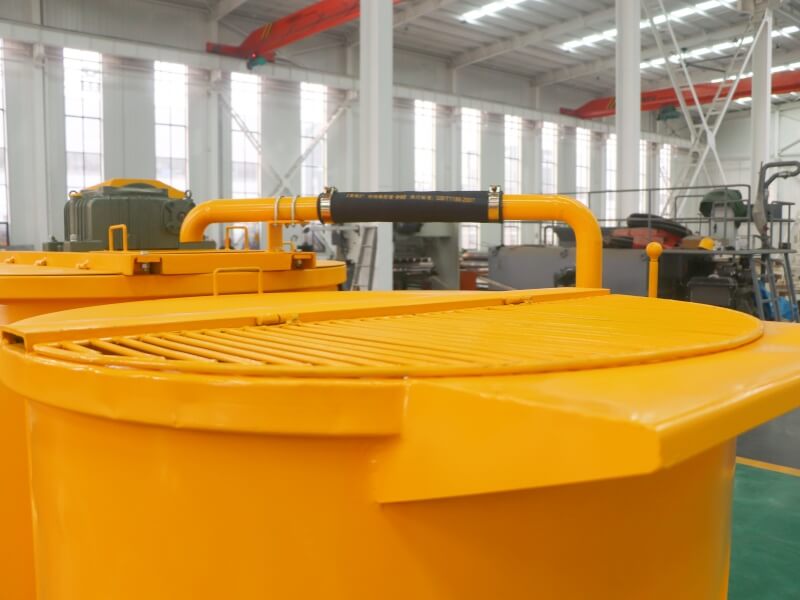

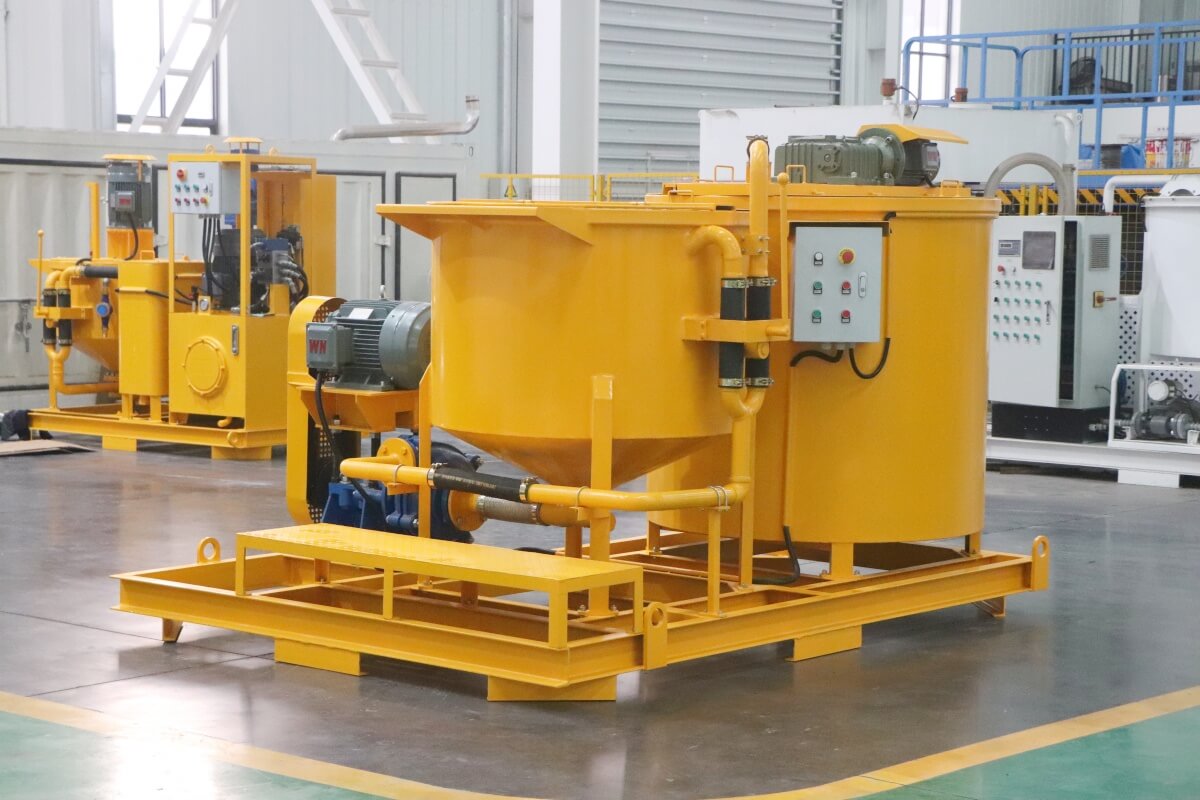

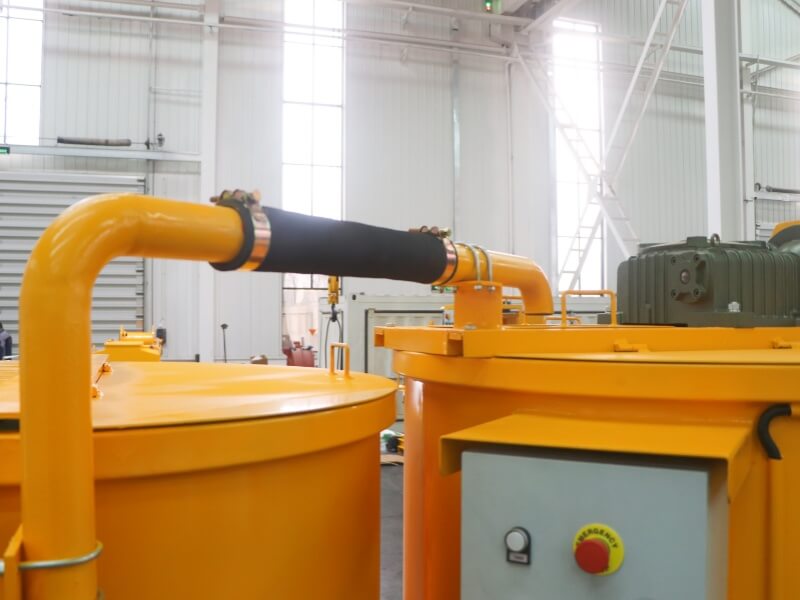

cement slurry grout mixer
grout mixer machine details
details grout mixer

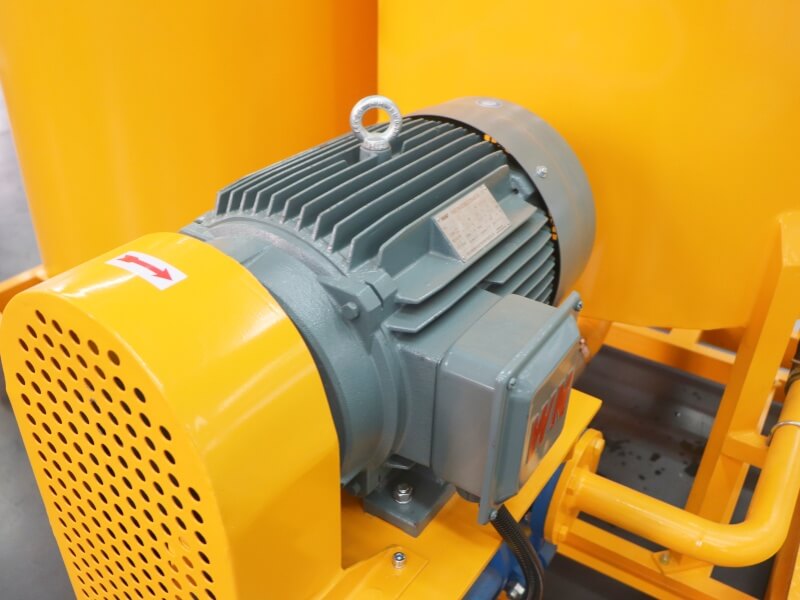

Heavy duty slurry pump for recirculating and discharging
Technical Parameters
Technical Data
Model LMA750/1500E
Output 11~14m3/h
Mixer Volume 750L
Agitator Volume 1500L
Pump delivery output 700L/min
Motor Power 11+3 Kw
Overall dimension 2850*2150*1970mm
Weight 1800KG
We reserve the right to change technical specifications without prior notice
