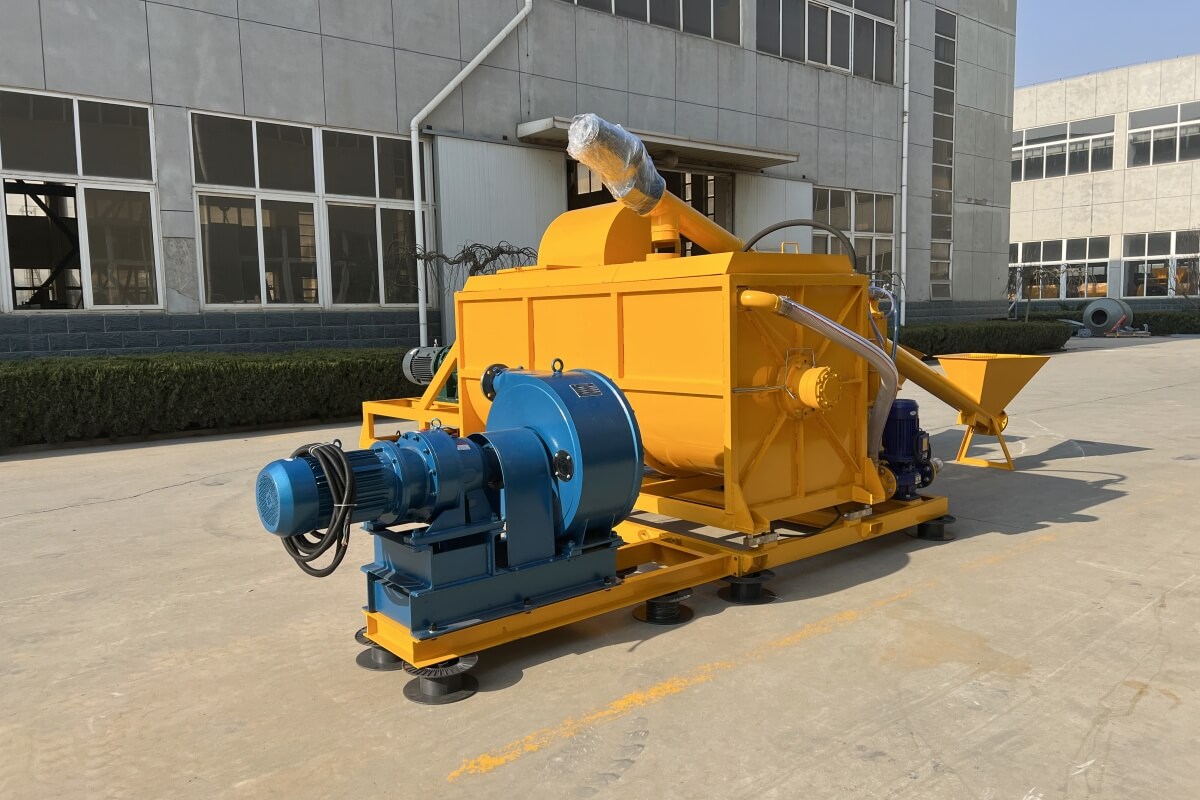

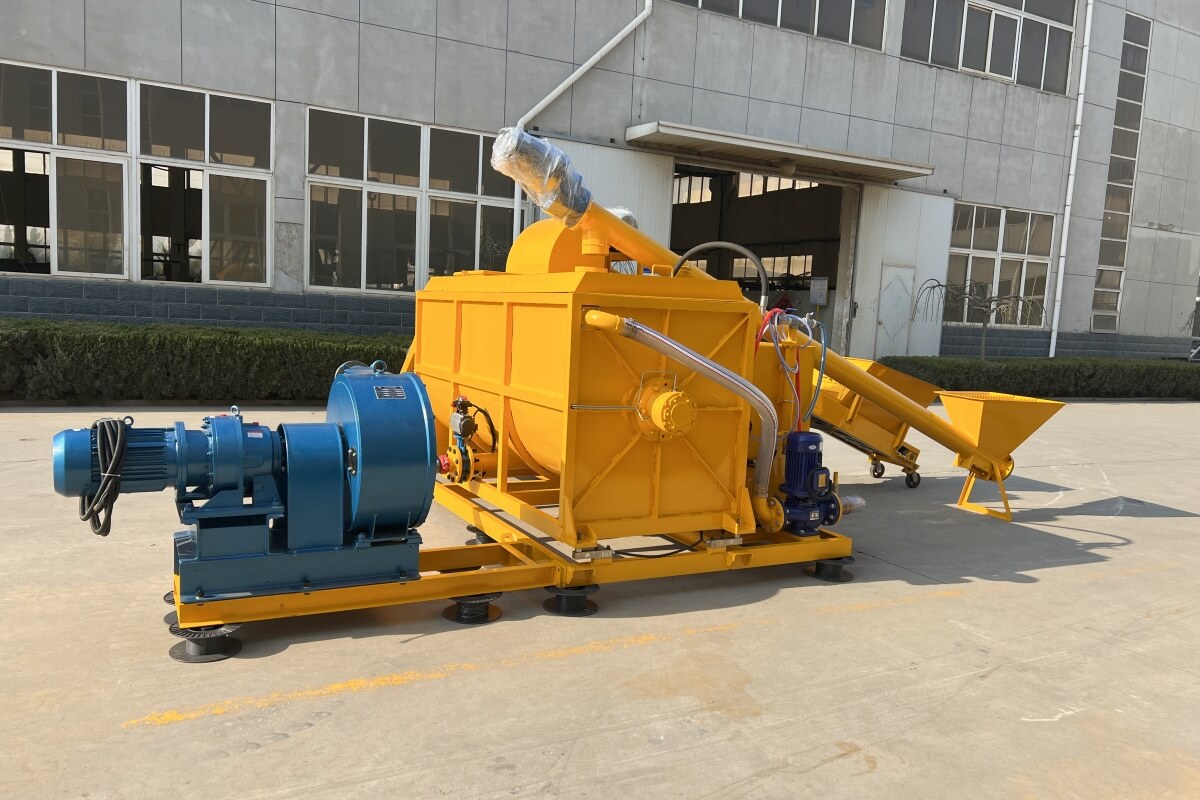

LM2000 Foamed concrete mixing machine
LM2000 foamed concrete mixing machine includes feeding system-screw & belt conveyor, foaming system-foam generator, mixing system-foam concrete mixer, controlling system-control panel and weighing system-load cells.
LM2000
20-30m3/h
30Kw
3 phase, 380V, 50Hz
2000L
4000*2050*1900mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LM2000 foamed concrete mixing machine includes feeding system-screw & belt conveyor, foaming system-foam generator, mixing system-foam concrete mixer, controlling system-control panel and weighing system-load cells.
LM2000 foamed concrete mixing machine serves the purpose of blending raw materials such as cement, sand, water, and foam into a fluid consistency, resulting in foam concrete. This end product finds diverse applications, encompassing floor heating systems, roof insulation measures, the production of CLC lightweight foam concrete blocks, precast wall panels, roofing insulation and flooring insulation, cast wall in construction sites, gap filling, road base, leveling, foundation, and tunnel filling, among others.
LM2000 foamed concrete mixing machine serves the purpose of blending raw materials such as cement, sand, water, and foam into a fluid consistency, resulting in foam concrete. This end product finds diverse applications, encompassing floor heating systems, roof insulation measures, the production of CLC lightweight foam concrete blocks, precast wall panels, roofing insulation and flooring insulation, cast wall in construction sites, gap filling, road base, leveling, foundation, and tunnel filling, among others.
Application
1. Foundation Stabilization and Filling:
Cellar, basement, and arch filling
Upstanding beam foundation ditches filling
Sewers and drains filling
Platform filling and mending
2. Structural Enhancement and Construction:
Horizontal floor heightening
Water tank and fuel tank building
Foam concrete block
Foamed concrete precasting, hollow wallboard casting
3. Thermal Insulation Applications:
External wall thermal insulation
Thermal insulation roofing
Thermal flooring
4. Acoustic and Safety Measures:
Sound insulation and fire protection walls
Sound insulation layer, tunnel lining filling
5. Landscaping and Amenities:
Garden and rockeries
Playground and track construction
Cellar, basement, and arch filling
Upstanding beam foundation ditches filling
Sewers and drains filling
Platform filling and mending
2. Structural Enhancement and Construction:
Horizontal floor heightening
Water tank and fuel tank building
Foam concrete block
Foamed concrete precasting, hollow wallboard casting
3. Thermal Insulation Applications:
External wall thermal insulation
Thermal insulation roofing
Thermal flooring
4. Acoustic and Safety Measures:
Sound insulation and fire protection walls
Sound insulation layer, tunnel lining filling
5. Landscaping and Amenities:
Garden and rockeries
Playground and track construction
Features
LM2000 Foamed concrete mixing machine features:
1. Control system: concentrated control, easy to operate.
2. Lubrication system: make the machine more durable.
3. Adding foam to mixer, foam concrete mixing more even.
4. Mixer system: big capacity, 2000L per batch, more efficiency.
5. Feeding system: screw conveyor for feeding cement, belt conveyor for feeding sand.
6. Auto-weighing system: weight each material automatically, time and labor saving.
LM2000 Foamed concrete mixing machine package and shipment:
1. Control system: concentrated control, easy to operate.
2. Lubrication system: make the machine more durable.
3. Adding foam to mixer, foam concrete mixing more even.
4. Mixer system: big capacity, 2000L per batch, more efficiency.
5. Feeding system: screw conveyor for feeding cement, belt conveyor for feeding sand.
6. Auto-weighing system: weight each material automatically, time and labor saving.
LM2000 Foamed concrete mixing machine package and shipment:
Product Details
-
2000L mixer -
Electronic control system -
Feed hopper -
Feeding system-screw & belt conveyor -

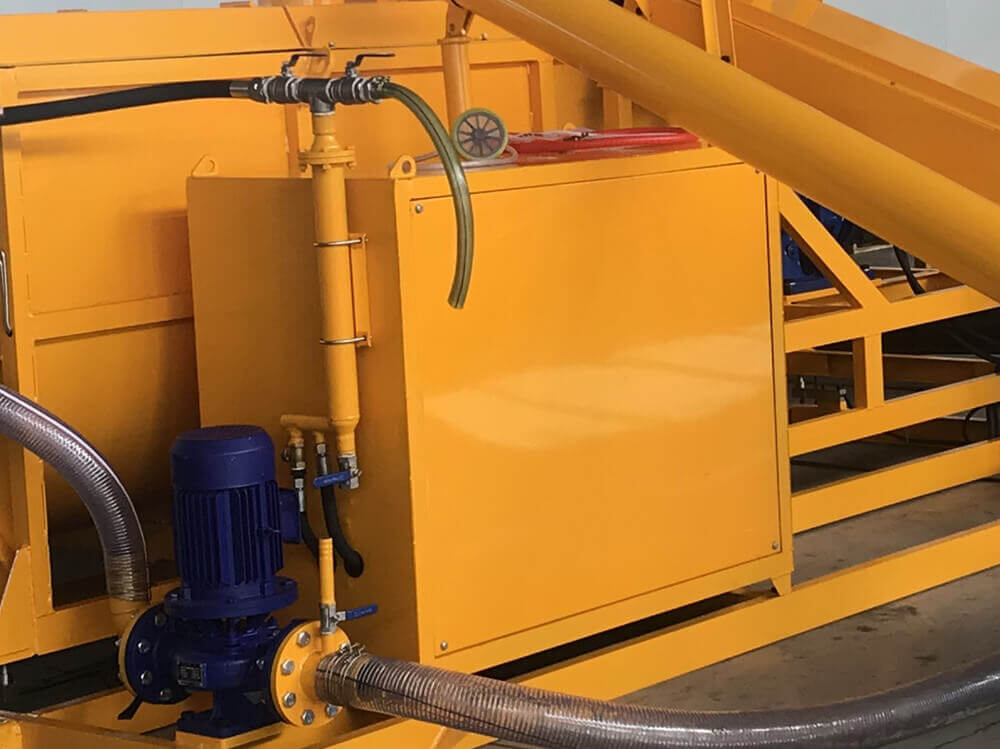

Foam generator -
Motor
Technical Parameters
Technical Data
| Model | LM2000 foamed concrete mixing machine |
| Capacity | 20-30m3/h |
| Power | 30Kw |
| Voltage | 3 phase, 380V, 50Hz |
| Mixer volume | 2000L |
| Water pump | 50m3/h |
| Foam generator | 30m3/h |
| Measurement method | Cumulative measurement |
| Discharge method | Manual discharge |
| Belt conveyor | 300*3800mm |
| Screw conveyor | φ165*4000mm |
| Main part dimension | 4000*2050*1900mm |
| Weight | 1500kg |
