LF5 5m3/h Foam Concrete Machine for Sale
LF5 foam concrete machine for sale is specially designed for small building or production according to market demand. LF5 foam concrete machine for sale is small in size, light in weight, easy to move and operate, and stable in performance, which can meet the requirements of different project sizes. The machine integrates pumping, foaming and mixing systems into one, which is easy to use.
3-5
Single /three phase
4.5kw
200L
880mm
910kg
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LF5 5m3/h foam concrete making machine for sale is specially designed for small building or production according to market demand. LF5 foam concrete machine for sale is small in size, light in weight, easy to move and operate, and stable in performance, which can meet the requirements of different project sizes. The machine integrates pumping, foaming and mixing systems into one, which is easy to use.
LF5 foam concrete machine for sale can be used to manufacture wall panels, roof structures, floor heating and foundation backfill.
LF5 foam concrete machine for sale can be used to manufacture wall panels, roof structures, floor heating and foundation backfill.
Application

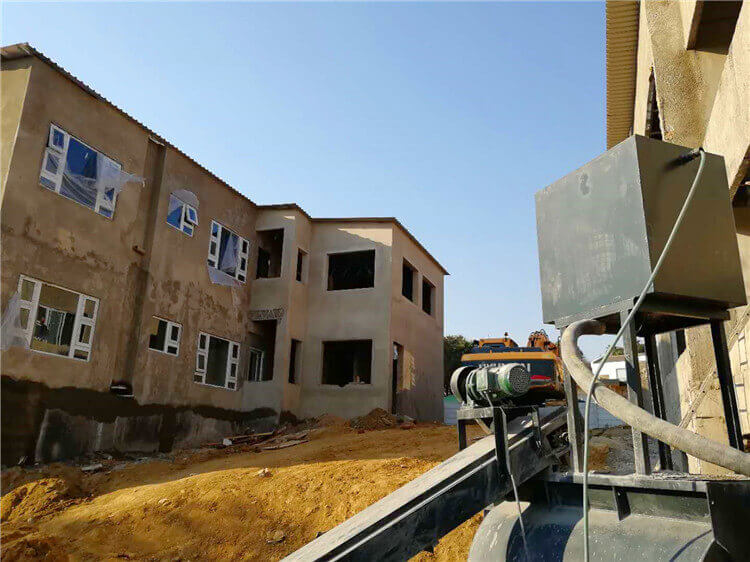

1) LF5 foam concrete machine for sale suitable for warm construction.
2) Roof insulation construction: Foamed concrete has a good thermal insulation effect, which is 20-30 times that of traditional materials. The room temperature of the top layer is kept the same as other floors, keeping warm in winter and cool in summer.
3) Foam concrete machine can be used to produce cement foam board, cement foam brick and exterior wall insulation materials of various specifications.
4) LF5 foam cement concrete machine for sale suitable for filling tunnels or mine voids or foundation backfill.
5) Other insulation requirements applicable to various antifreeze pipes or projects.
2) Roof insulation construction: Foamed concrete has a good thermal insulation effect, which is 20-30 times that of traditional materials. The room temperature of the top layer is kept the same as other floors, keeping warm in winter and cool in summer.
3) Foam concrete machine can be used to produce cement foam board, cement foam brick and exterior wall insulation materials of various specifications.
4) LF5 foam cement concrete machine for sale suitable for filling tunnels or mine voids or foundation backfill.
5) Other insulation requirements applicable to various antifreeze pipes or projects.
Features
1) LF5 foam concrete machine is small size, light weight and convenient operation.
2) Foam concrete machine for sale long life, stable performance and easy maintenance.
3) The proportion of foaming agent can be adjusted.
4) Adjustable pump speed and flow control.
5) High cost performance.
6) LF5 foam concrete machine for sale pumping system uses the most suitable hose pump hardly damage to the foam to ensure the perfect final performance of the foam concrete product.
7) It is possible to precisely control the amount of foam added and control the final density of foam concrete to meet engineering requirements and accurately control production costs.
2) Foam concrete machine for sale long life, stable performance and easy maintenance.
3) The proportion of foaming agent can be adjusted.
4) Adjustable pump speed and flow control.
5) High cost performance.
6) LF5 foam concrete machine for sale pumping system uses the most suitable hose pump hardly damage to the foam to ensure the perfect final performance of the foam concrete product.
7) It is possible to precisely control the amount of foam added and control the final density of foam concrete to meet engineering requirements and accurately control production costs.
Product Details
-
Static mixer to blend foam and slurry and delivery -
Foam concrete pump -
Mixer of foam concrete machine -
Static mixer of foam concrete machine -
Foam concrete machine with screw conveyor -

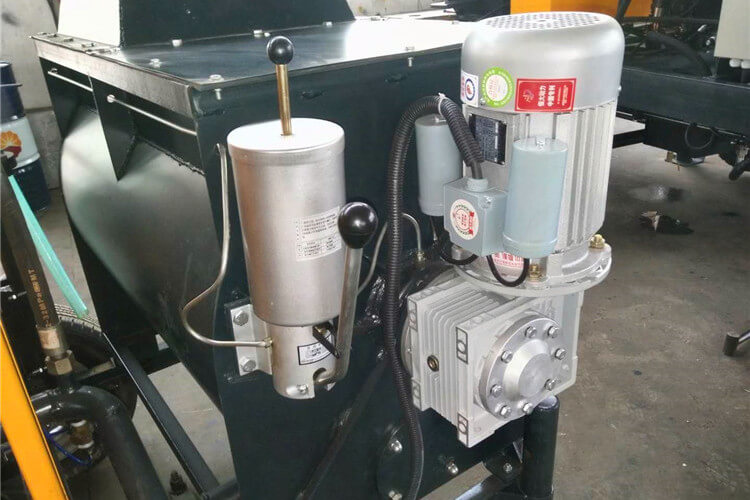

Foam concrete machine details
Technical Parameters
Technical Data
| Model | LF5 foam cement concrete machine | |
| The actual output (m3/h) | 3-5 | |
| Max. convening distance(m) | Horizontal | 50 |
| Vertical | 7-10 | |
| Voltage (V) | 380 or as request | |
| Power | Single /three phase | |
| Total motor power(kw) | 4.5 | |
| MIxing tank capacity (L) | 200 | |
| Filling height (mm) | 880 | |
| Total weight (kg) | 910 | |
| Over dimension(mm) | 2100*1340*1390 | |

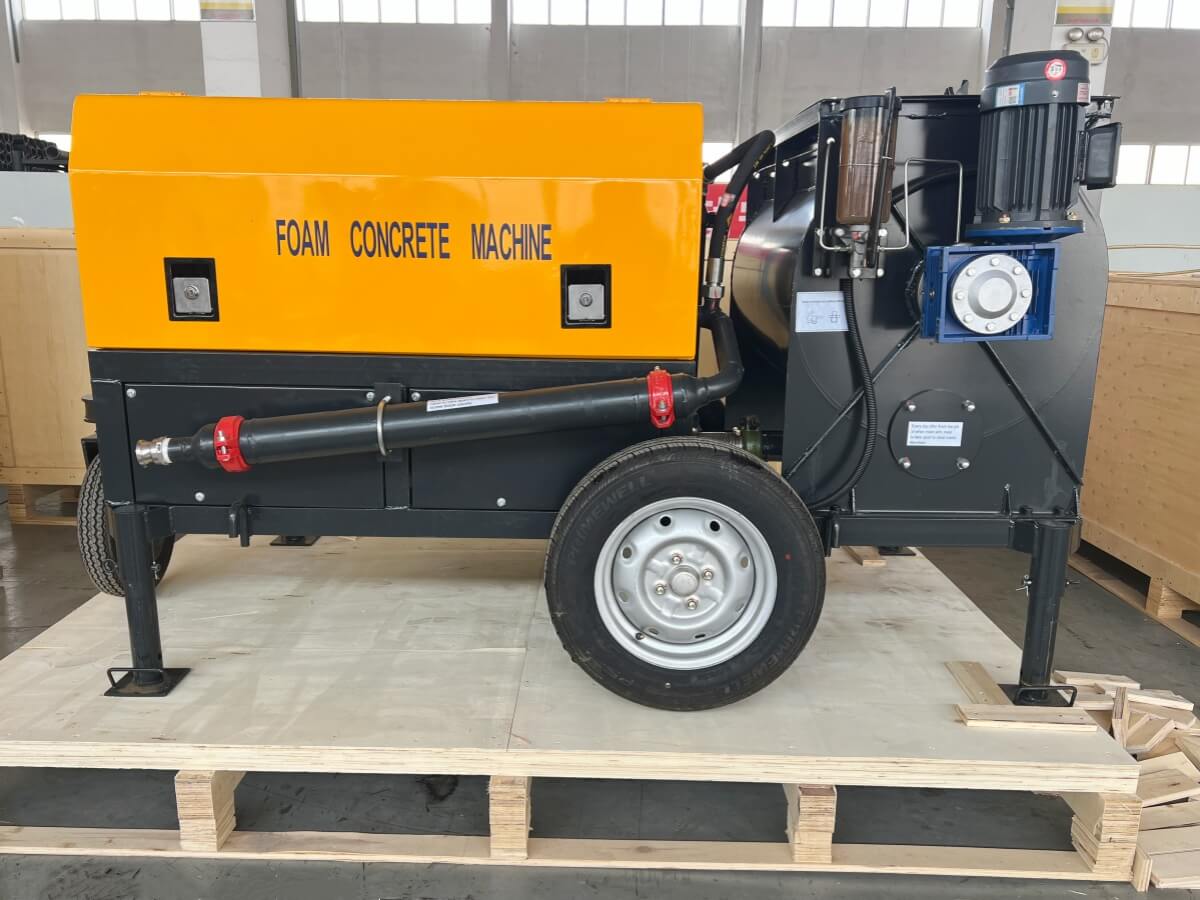

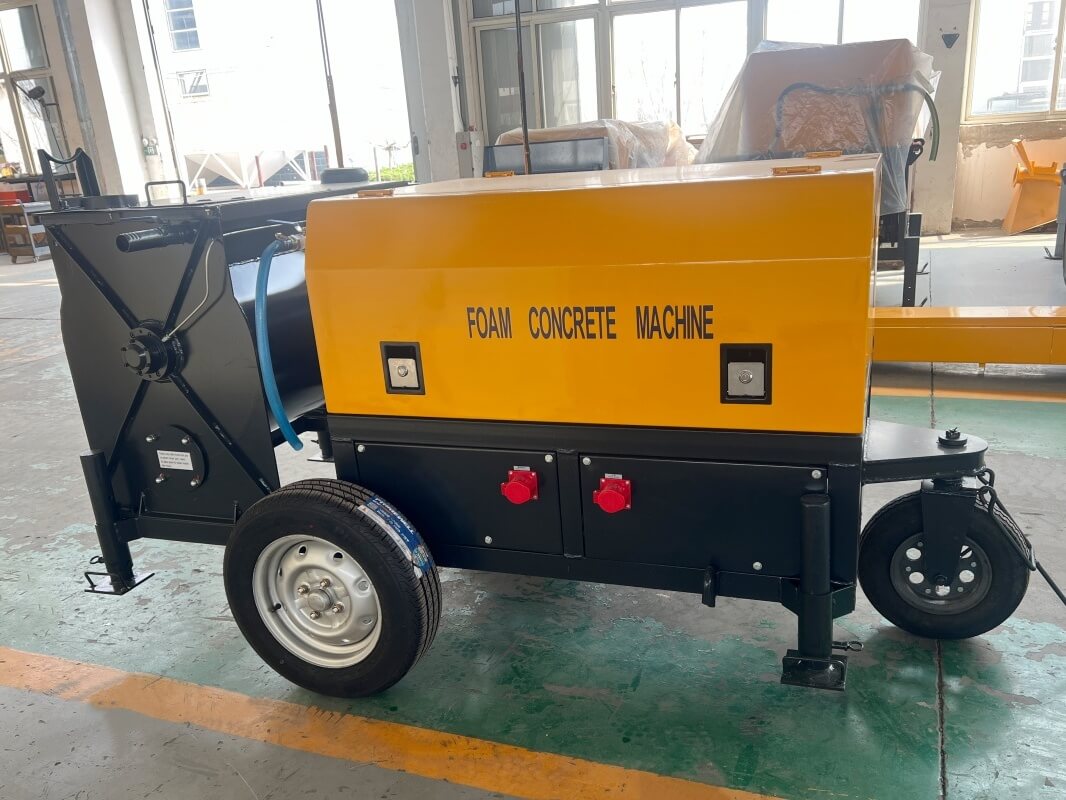

Factory shipment pictures of LF5 foam concrete machine：
