Application of continuous grout mixing and pumping system:
Hydraulic high pressure cement mixing grout pump station is mainly applied in fields of structural and construction. Such as: building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting, soil and rock grouting; pavement under sealing, slab jacking and slab raising.

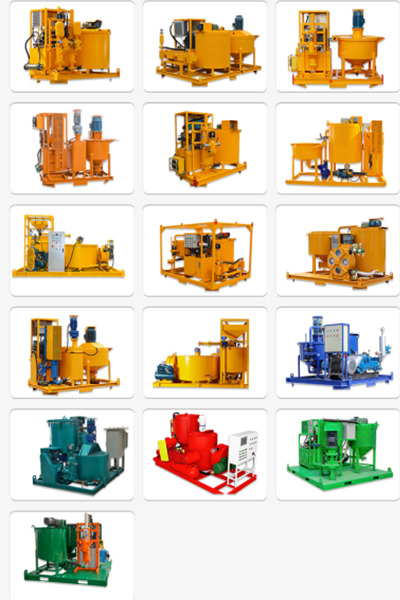

Lead equipment co., Ltd. is a cement mixing grout pump station manufacturer. We have cement mixing grout pump station with different tank sizes, pump capacities, pressures and powers. For example, volume of the mixer is from 100L to 800L, volume of the agitator is from 150L to 3000L, and the output is from 50L/min to 300L /min. For example:

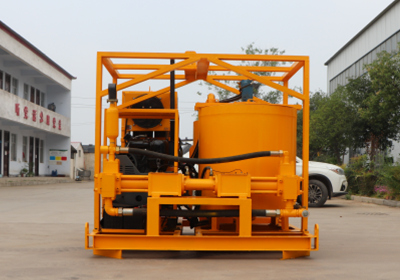

LGP400/700/ 80DPL-E hydraulic cement mixing grout pump station can be customized for almost any application. It is used to prepare bentonite slurry, cement slurry, etc., and it is mainly used in ground and underground projects, such as: highways, railways, hydropower, construction, and mines. LGP400/700/ 80DPL-E hydraulic cement mixing grout pump station has high production efficiency and can reduce carbon emissions.
LGP400/700/ 80DPL-E is an electric motor dual plunger pumps hydraulic cement mixing grout pump station. It is combination of mixer, agitator and grout pump in one base frame. And it is equipped with a high shear high speed grout mixer, the mixer volume is 400L, the agitator volume is 700L. When working at low voltage, its working pressure is 2.5Mpa, its output is 80L/min; When working at high voltage, its pump working pressure is 4Mpa, its output is 58L/min.
Features of LGP400/700/ 80DPL-E hydraulic cement mixing grout pump station:
1. Double plunger pump.
2. High-speed colloidal grout mixer.
3. Up to 5mm particle size.
4. Pressure holding system.
5. Low flow pressure surge system.
6. Hydraulic drive (safely releasing pressure when pumping block).
7. Hydraulic system with high temperature warning and protection system.
8. Air cooler and water cooler (suitable for working in tropical and sub-hot areas).
9. Vertical type pump with compact size, it is easy to operate. It also takes up a small space.
In addition, our LGP400/700/80/100DPI-D high pressure cement mixing grout pump station is similar to LGP400/700/ 80DPL-E.
LGP400/700/ 80/100DPI-D is a diesel double cylinders piston pump high pressure cement mixing grout pump station. It is also combination of mixer, agitator and grout pump in one base frame. And it is equipped with a high shear high speed grout mixer, the mixer volume is 400L, agitator volume is 700L. When working at low voltage, its working pressure is 4Mpa, its output is 80L/min; When working at high voltage, its pump working pressure is 10Mpa, its output is 40L/min.
Contact us for hydraulic high pressure cement mixing grout pump station:
If you are interested in our hydraulic high pressure cement mixing grout pump station, we will recommend a suitable one for you. Please help us to confirm the following points:
1. What kind of grouting project would you use the grout equipment?
2. What is the pressure and flow rate do you need?
3. How about the water and cement ratio, does any sand in?
You can send demands to our email, email address: sales1@leadcrete.com
